Agilent Technologies 8720ES Service Guide

2-8 Chapter 2
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests
Measurement Calibration
12.Press
.
13.Press .
14.Press .
15.Connect the “open” end of the open/short combination (supplied in the calibration kit) to
reference test port 1, as shown in Figure 2-2.

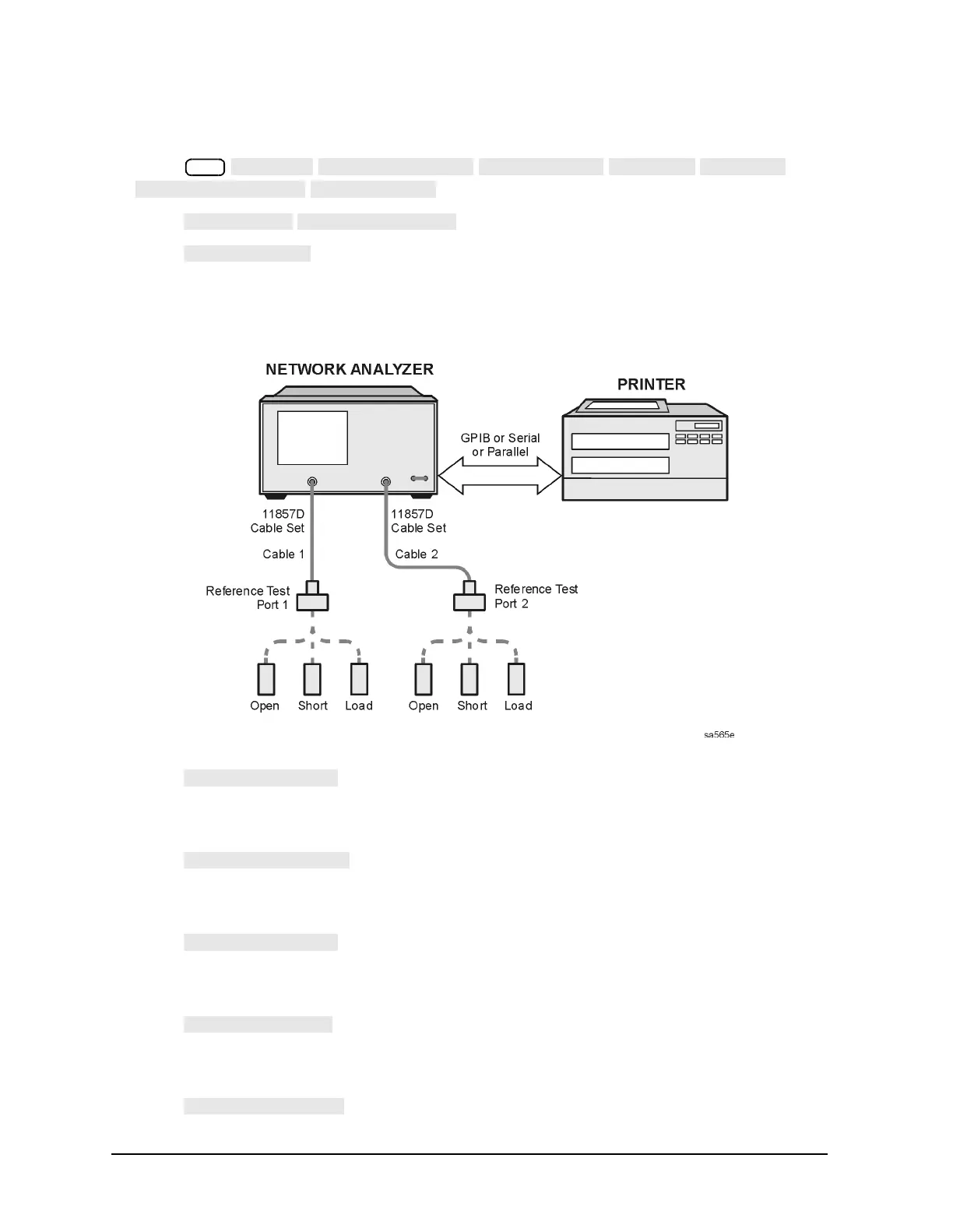

Figure 2-2 Connections for Measurement Calibration Standards
16.Press .
17.When the analyzer finishes measuring the standard, connect the SHORT end of the
open/short combination to reference test port 1.
18.Press .
19.When the analyzer finishes measuring the standard, connect the 50 ohm termination
(supplied in the calibration kit) to reference test port 1.
20.Press .
21.When the analyzer finishes measuring the standard, connect the OPEN end of the
open/short combination to reference test port 2.
22.Press .
23.When the analyzer finishes measuring the standard, connect the SHORT end of the
open/short combination to reference test port 2.
24.Press .
Cal
CAL KIT
SELECT CAL KIT
CAL KIT:7mm
RETURN
RETURN
CALIBRATE MENU
FULL 2-PORT
ISOLATION
OMIT ISOLATION
REFLECTION
FORWARD:OPEN
FORWARD:SHORT
FORWARD:LOAD
REVERSE:OPEN
REVERSE:SHORT
