Agilent Technologies 8720ES Service Guide

Chapter 2 2-23
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests
Procedure
Power Meter Calibration
1. Zero and calibrate the power meter for the HP/Agilent 8482A power sensor.
2. Connect the equipment as shown in Figure 2-11.

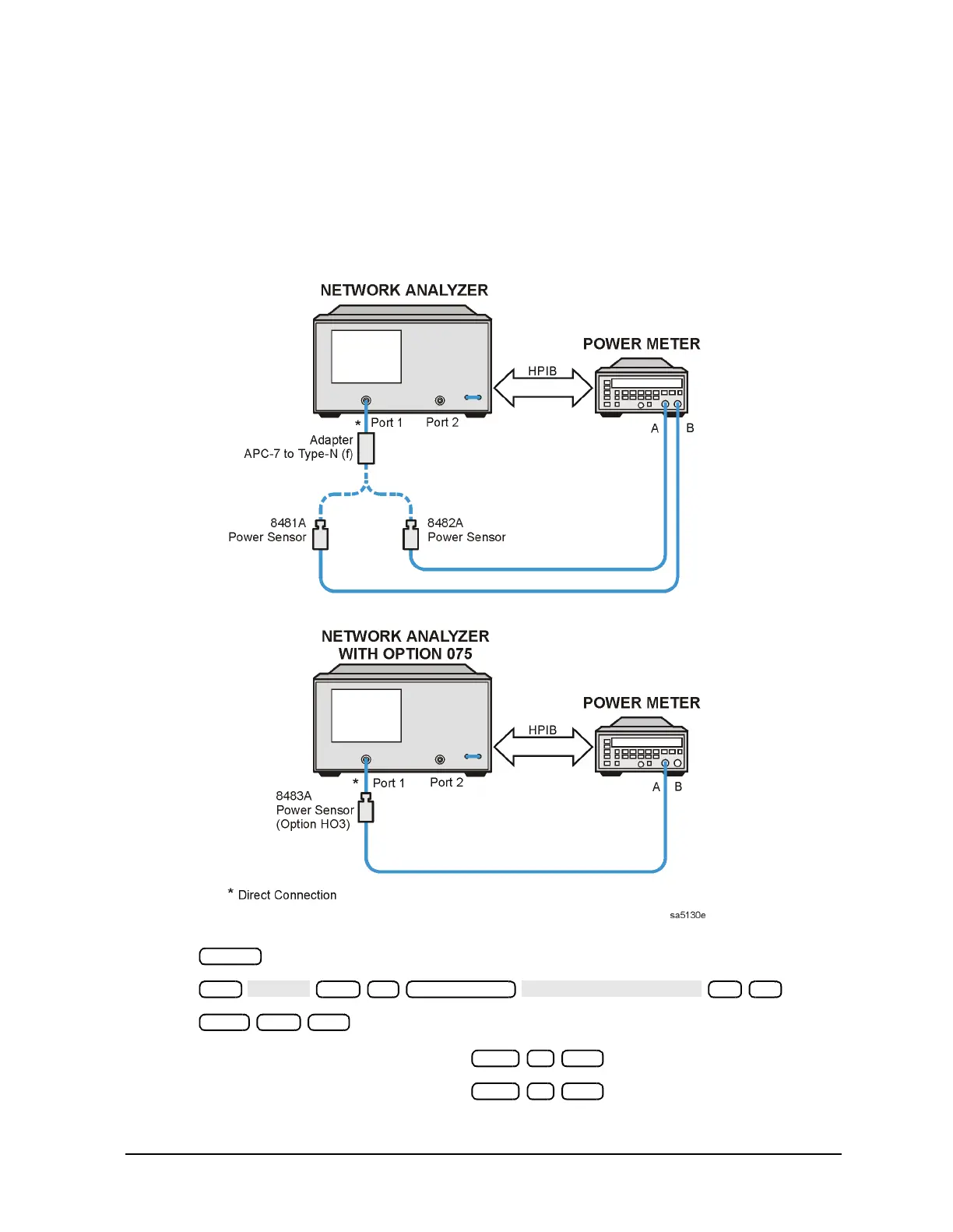

Figure 2-11 Setup for Power Meter Calibration on Test Port 1
3. Press .
4. Press .
5. Press , then;
• If the analyzer has Option 075, press .
• If the analyzer has Option 006, press .
Preset
Avg
IF BW
100 x1 Sweep Setup
NUMBER of POINTS
51 x1
Start 300 k/m
Stop 2 G/n
Stop 3 G/n
