Agilent Technologies 8720ES Service Guide

2-66 Chapter 2
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests
Measure Test Port 2 Magnitude Dynamic Accuracy
15.Connect the equipment as shown in Figure 2-36. Confirm that the step attenuator is set
to 10 dB.

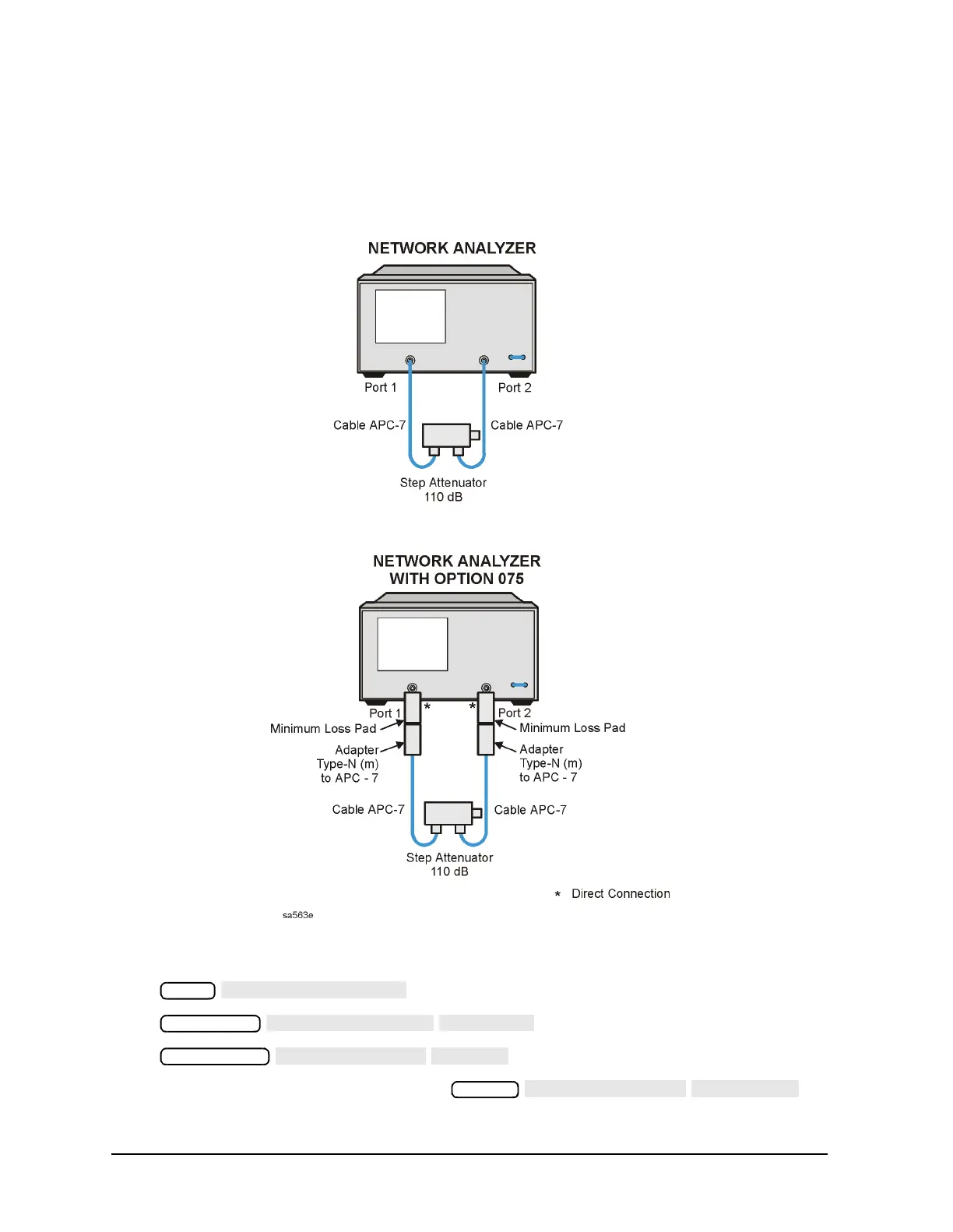

Figure 2-36 Magnitude Dynamic Accuracy Measurement
16.To set up the dynamic accuracy measurement, press the following:
•
•
•
17.Wait for the sweep to finish, then press .
Meas
Trans: FWD S21 (B/R)
Marker Fctn
MKR MODE MENU
STATS ON
Sweep Setup
TRIGGER MENU
SINGLE
Display
DATA
→
MEMORY
DATA/MEM
