2-70 Chapter 2
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests
Measure Test Port 1 Magnitude Dynamic Accuracy
33.Connect the equipment as shown in Figure 2-39.

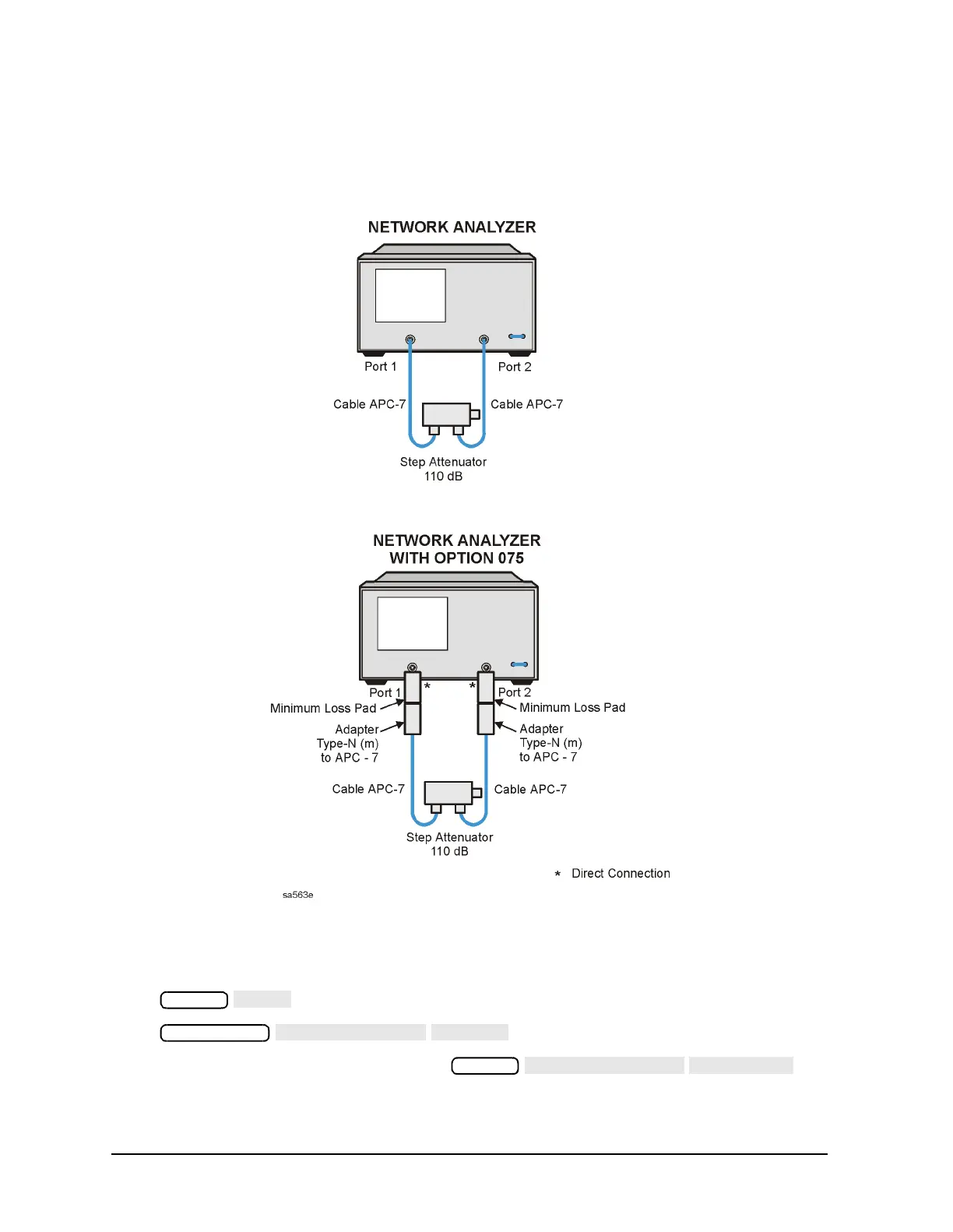

Figure 2-39 Magnitude Dynamic Accuracy Measurement
34.Set the step attenuator to 10 dB.
35.To set up the dynamic accuracy measurement, press the following:
•
•
36.Wait for the sweep to finish, then press .
37.Set the step attenuator to 0 dB.
Display
DATA
Sweep Setup
TRIGGER MENU
SINGLE
Display
DATA
→
MEMORY
DATA/MEM
