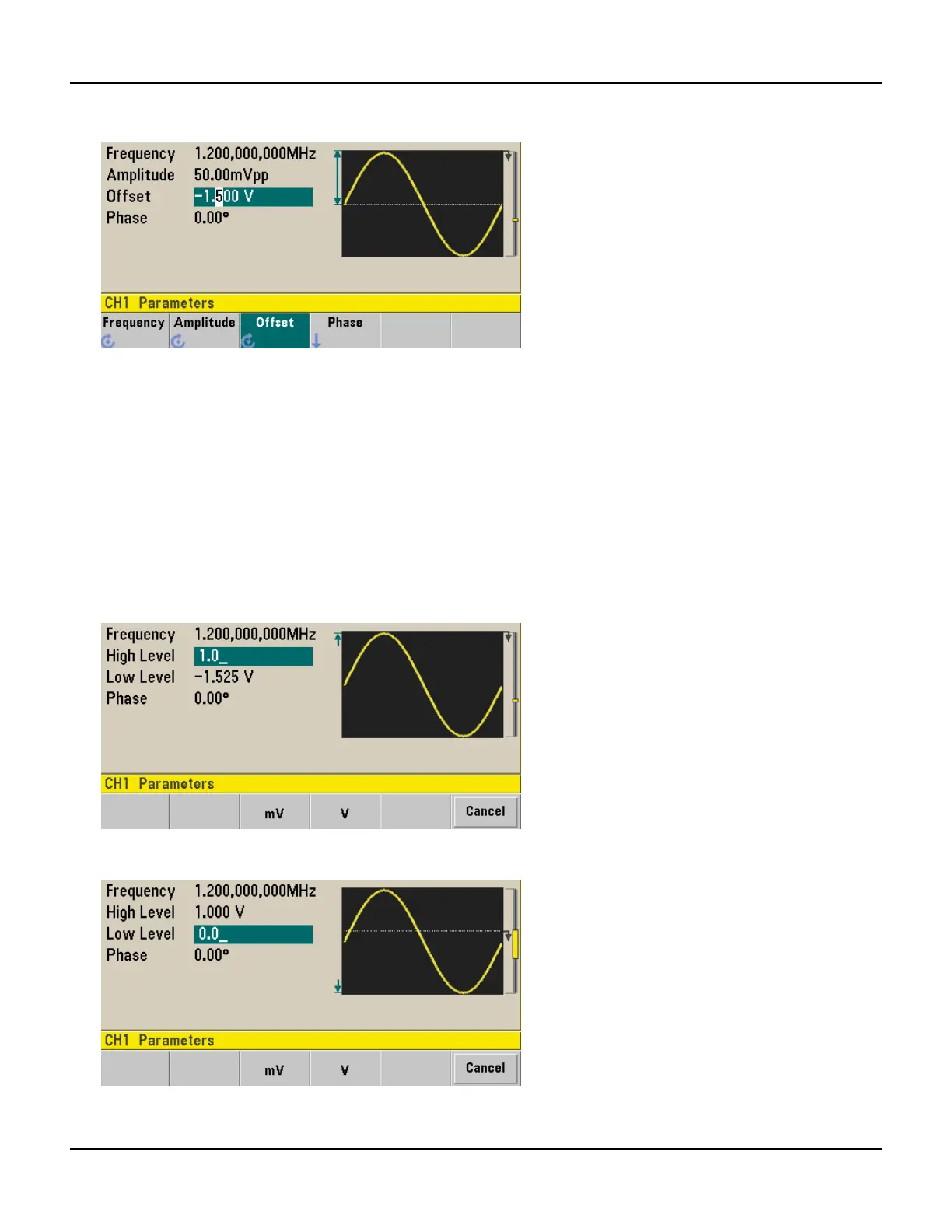

displayed offset (if the output is enabled). For this example, press V. The voltage will be set as shown below.
You can also enter the desired value using the knob and cursor keys.
Set High-Level and Low-Level Values
You can specify a signal by setting its amplitude and DC offset, described above. You can also specify the signal as high
(maximum) and low (minimum) values. This is typically convenient for digital applications. In the following example,
we will set the high level to 1.0 V and the low level to 0.0 V.
1. Press the Units key.
2. Press the Amp/Offs softkey to toggle to High/Low as shown below.
3. Set the "High Level" value.
Press the Parameters key and press High Level. Using the numeric keypad or knob and arrows, select a value of
1.0 V. (If you are using the keypad, you will need to select the V unit softkey to enter the value.)
4. Press the Low Level softkey and set the value.
Again, use the numeric keypad or the knob to enter a value of 0.0 V.
22 Agilent 33500 Series Operating and Service Guide
