OUTPut Subsystem
Parameter Typical Return
{NORMal|INVerted}, default NORMal NORM or INV
Set output polarity to INVerted:
OUTP:POL INV
l NORMal: waveform goes in one direction at the beginning of the cycle; INVerted: waveform goes in other.

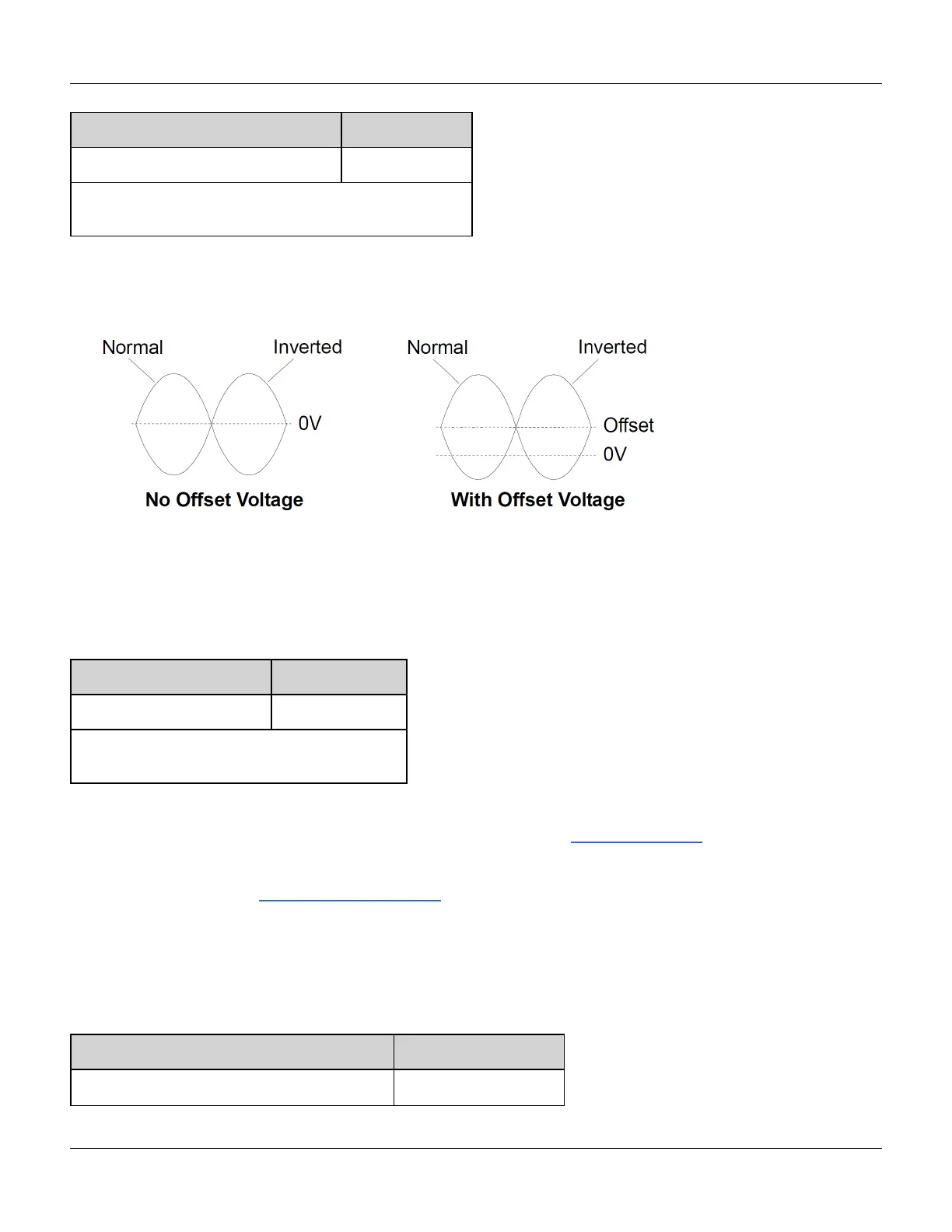

l As shown below, the waveform is inverted relative to the offset voltage. The offset voltage remains unchanged
when the waveform is inverted.
l The Sync signal associated with an inverted waveform is not inverted.
OUTPut:SYNC {ON|1|OFF|0}
OUTPut:SYNC?
Disables or enables the front-panel Sync connector.
Parameter Typical Return
{ON|1|OFF|0}, default ON 0(OFF)or1(ON)
Disable front panel Sync connector:
OUTP:SYNC OFF
l Disabling the Sync signal reduces output distortion at lower amplitudes.
l For more details on the Sync signal for each waveform function, see Sync Output Signal.
l When Sync is disabled, the output level on the Sync connector is a logic "low."
l Inverting a waveform (OUTPut[1|2]:POLarity INV) does not invert the Sync signal.
OUTPut[1|2]:SYNC:MODE {NORMal|CARRier|MARKer}
OUTPut[1|2]:SYNC:MODE?
Specifies normal Sync behavior (NORMal), forces Sync to follow the carrier waveform (CARRier), or indicates marker
position (MARKer).
Parameter Typical Return
{NORMal|CARRier|MARKer}, default NORMal NORM, CARR, or MARK
Agilent 33500 Series Operating and Service Guide 261
