Set Up Arbitrary Waveform

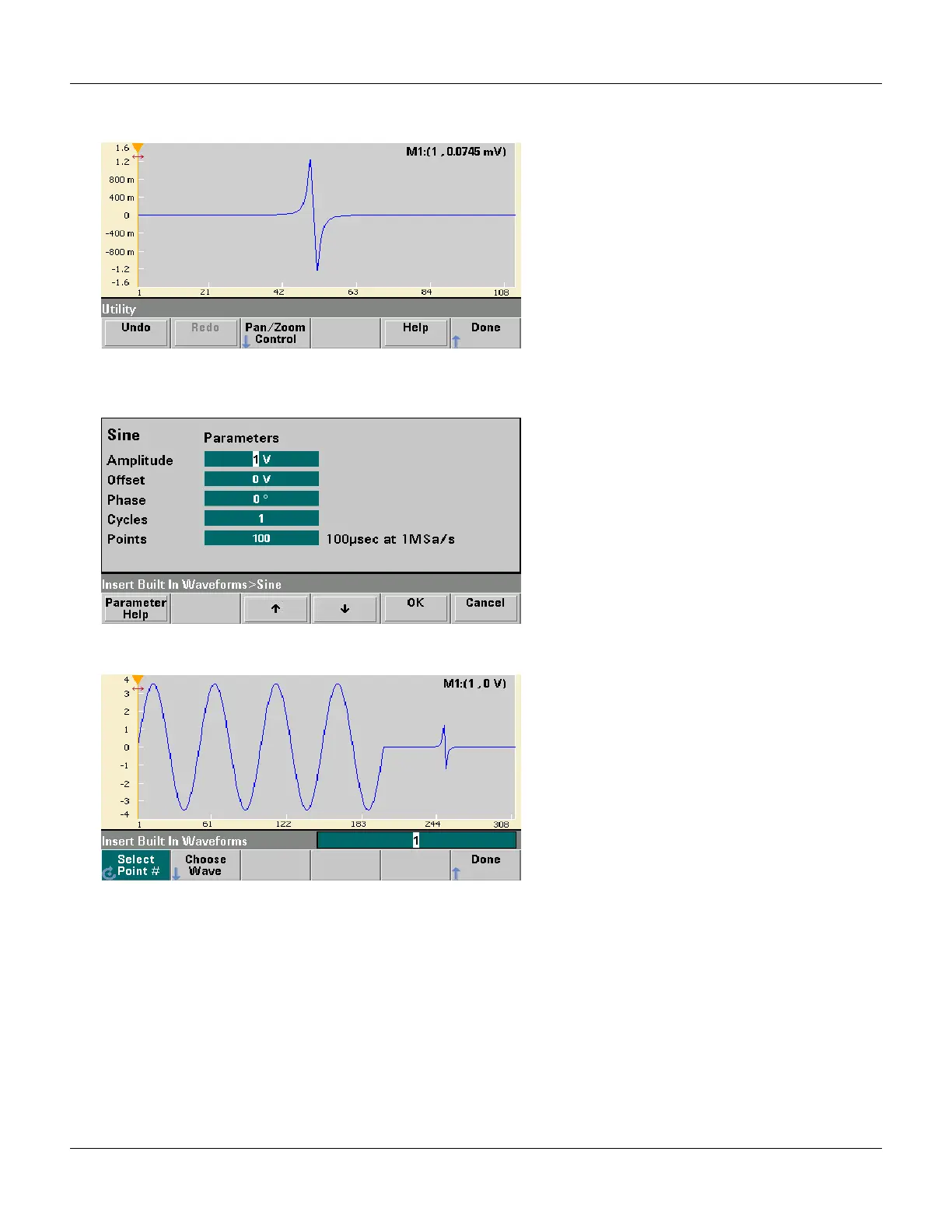

4. To put the D-Lorentz waveform back, press Redo. Then press Done to exit.
5. Now we will insert a sine wave. Begin by pressing Choose Wave. Make sure Sine (the default) is highlighted, and
press OK. For help in understanding the various parameters on the screen, press Parameter Help. Then press
Done to exit the help screen.
6. Using the numeric keypad and the up and down arrow softkeys, set the Amplitude to 3.5 V, the Cycles to 4, and
the Points to 200. Leave all other settings at their default values and press OK.
Agilent 33500 Series Operating and Service Guide 47
