Frequency Sweep
l You cannot configure the marker frequency with the front panel menus unless the Sync source is the sweeping
channel.

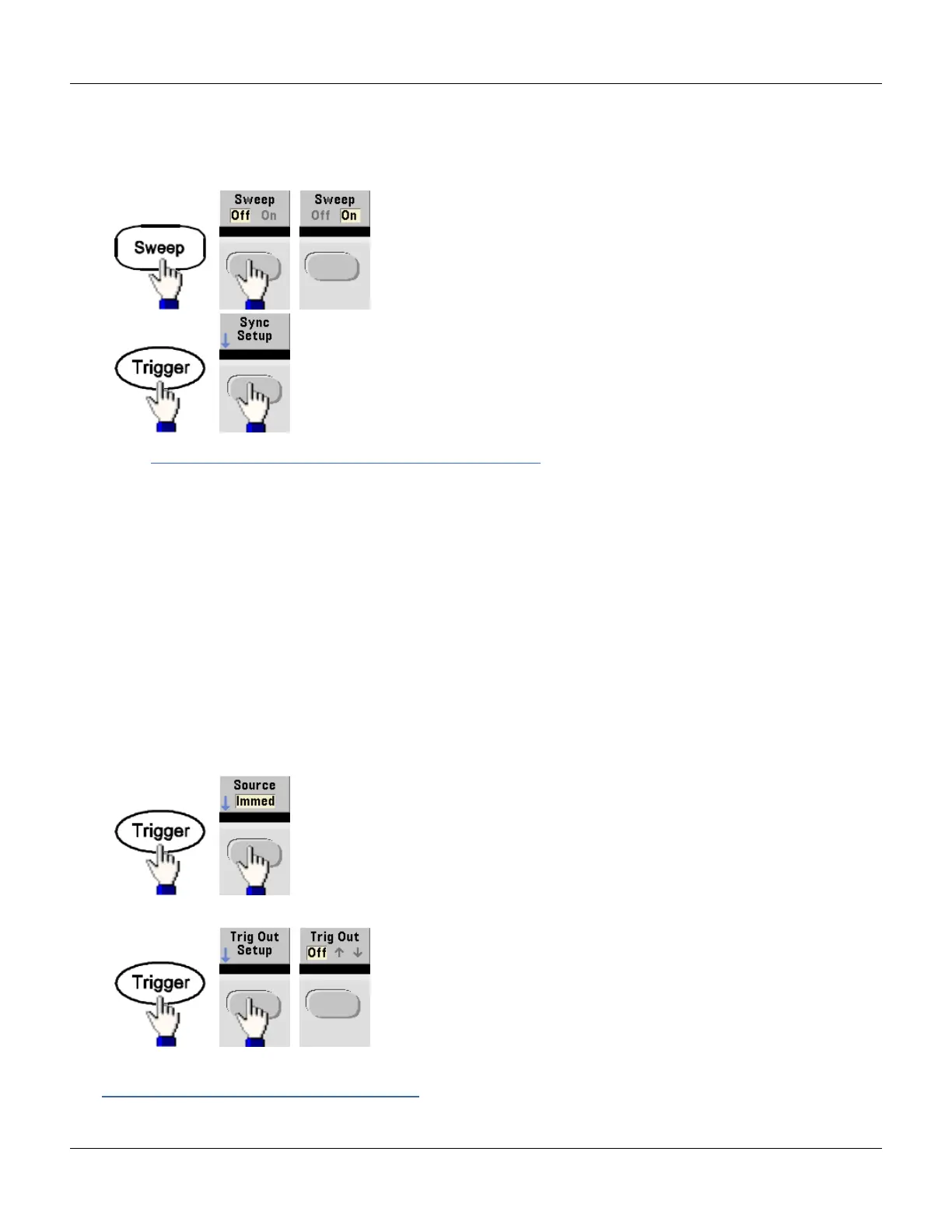

l Front Panel:
l SCPI: [SOURce[1|2]:]MARKer:FREQuency {<freq>|MIN|MAX}
Sweep Trigger Source
In sweep mode, the instrument outputs a single sweep when a trigger signal is received. After one sweep from the
start frequency to the stop frequency, the instrument waits for the next trigger while outputting the start frequency.
l Sweep trigger source: Internal (default), External, Time, or Manual.
l With the Internal (immediate) source, the instrument outputs a continuous sweep at a rate determined by the
total of the hold time, sweep time and return time. The sweep time for this source is limited to 8000 seconds.
l With the External source, the instrument accepts a hardware trigger on the rear-panel Ext Trig connector and ini-
tiates one sweep each time Ext Trig receives a TTL pulse with the specified polarity.
l The trigger period must be greater than or equal to the specified sweep time.
l With the Manual source, the instrument outputs one sweep each time the front-panel Trigger key is pressed.
l Front-Panel:
l To specify the slope of the trigger signal edge:
l SCPI:
TRIGger[1|2]:SOURce {IMM|EXT|TIMer|BUS}
Agilent 33500 Series Operating and Service Guide 95
