Chapter 7 Plug-in Modules
N2260A 40-Channel MUX Module
4
7
Dual 2-Wire Mode - PC Board Modification
To operate the module in the Dual 2-wire mode, you must make
modifications to the module’s printed circuit board. Specifically, you
must unsolder and remove relay T99. On the PC board, T99 has a

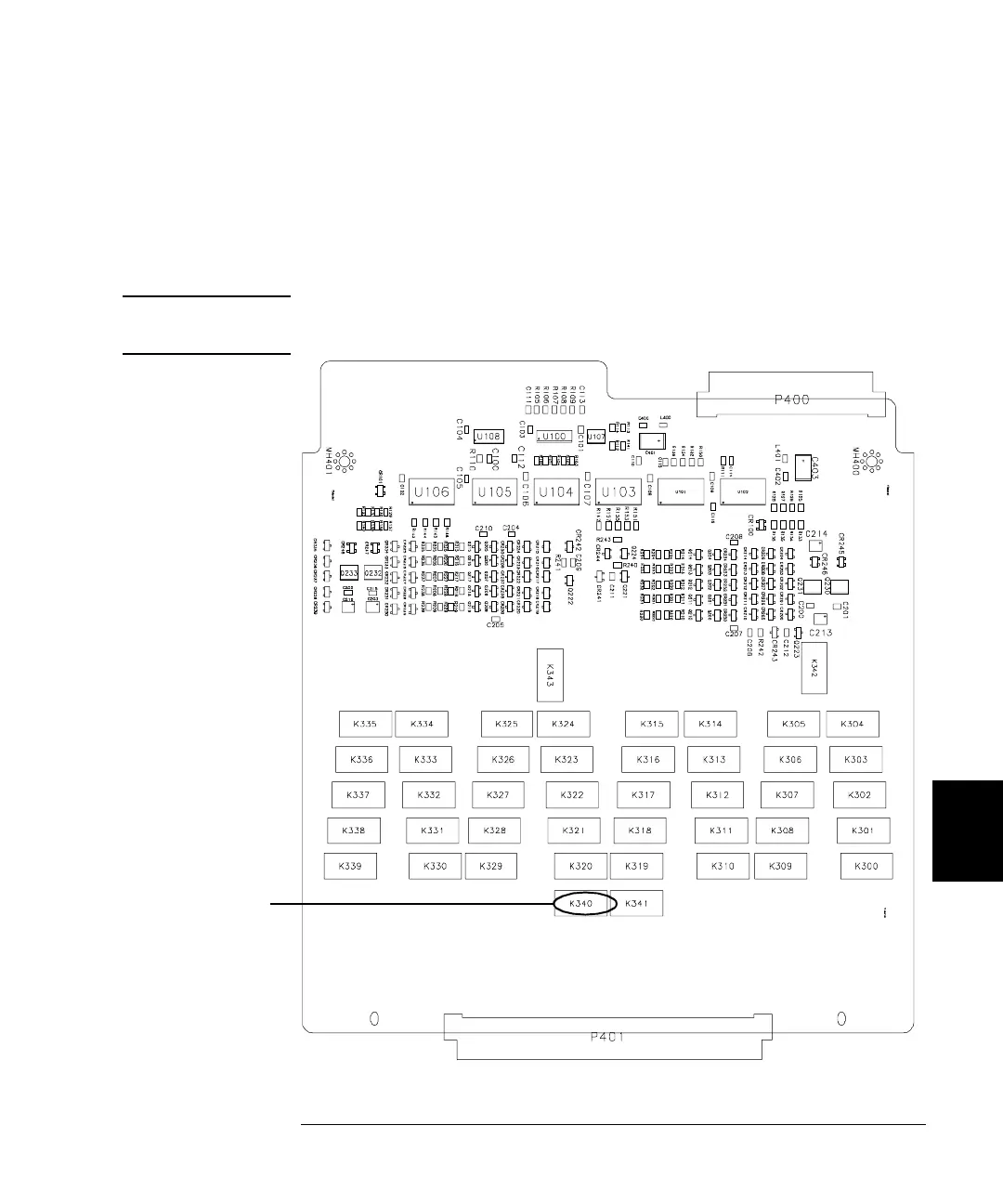

reference designator of K340. The location of K340 is shown below.
Caution You must use proper anti-static procedures, de-soldering techniques, and
equipment to prevent damage to the PC board.
K340
