180
Chapter 7 Plug-in Modules
N2260A 40-Channel MUX Module
7
N2260A Wiring Information
There are four methods available to connect to the N2260A:
•
A screw terminal block, the N2290A (described on page 277).
•
A direct wiring (insulation displacement) connector, the N2296A
(described on page 278).
•
A DIN96 to twin D50 Cable, the N2297A (described on page 279).
•
A DIN96 to four D25 Cable, the N2299A (described on page 281).

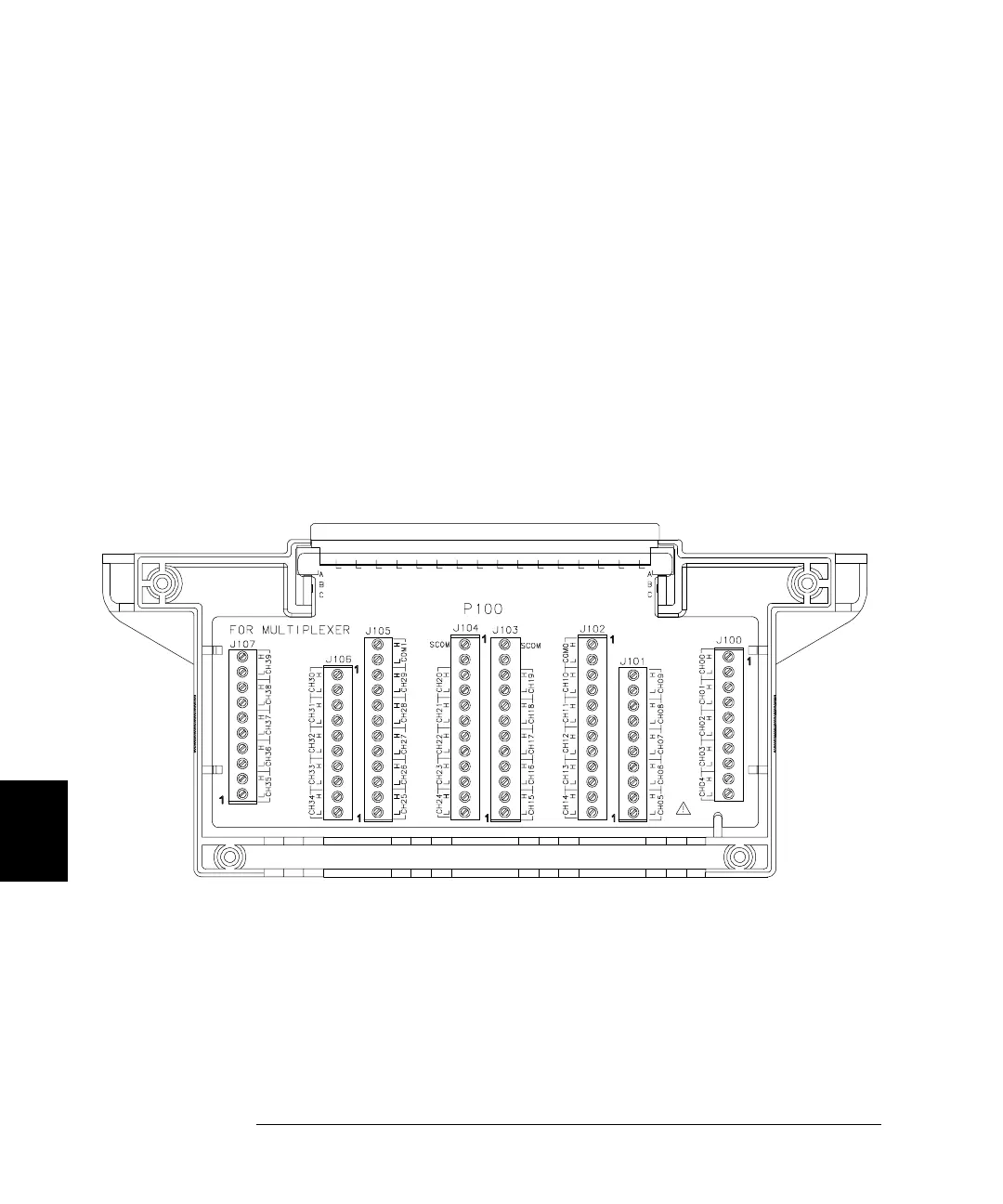

The screw terminal block (N2290A) is shown below. To use the other
connection options, you will need to use the module pinout information
on page 181.
Connect to P401
To Next Page
