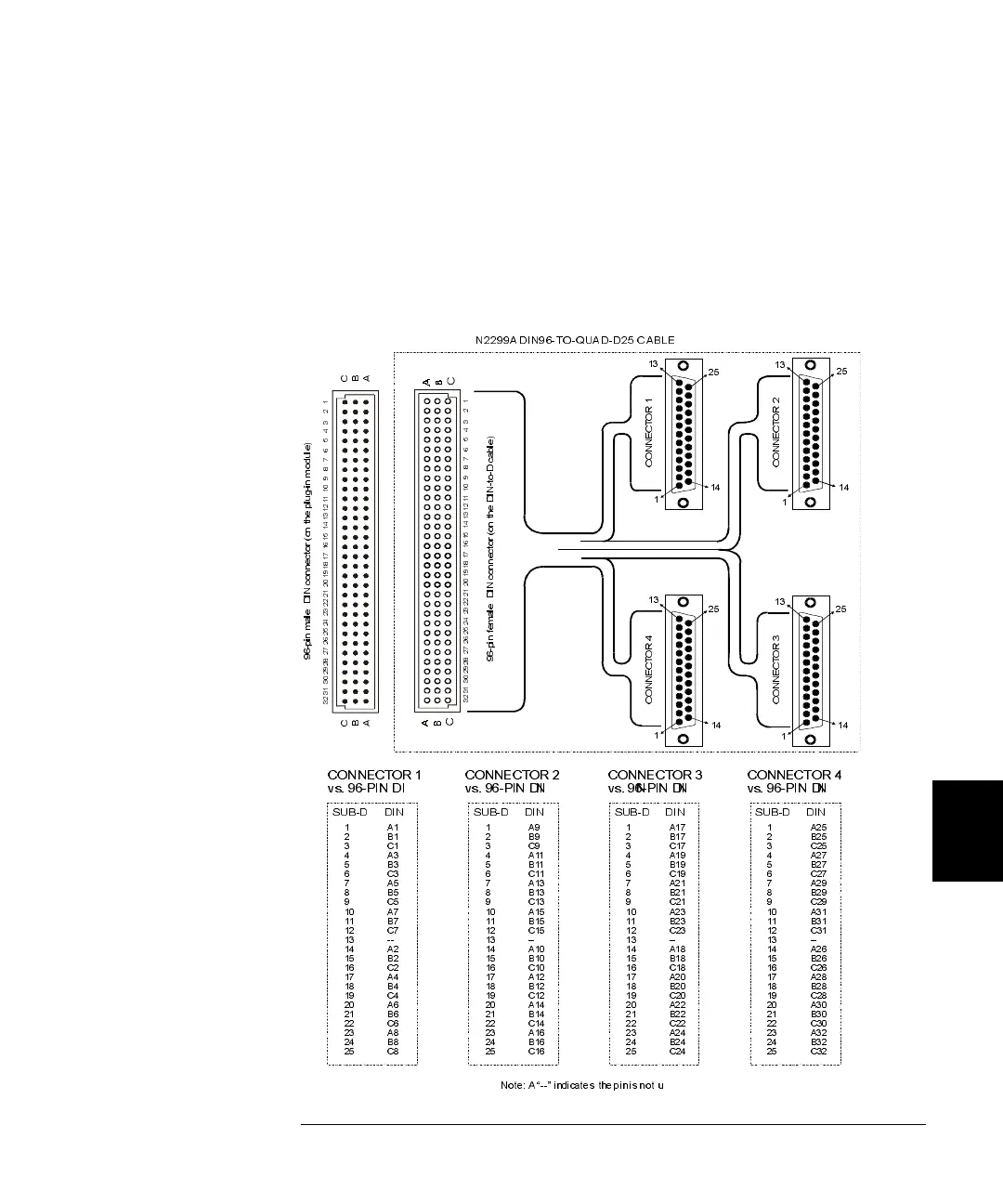

N2299A DIN96 to quad D25 Cable
The N2297A is a female DIN96 to four male D25 Cable. The cable uses
26 AWG wire (which meets UL AWM: 2464) with overall foil shield. The
maximum voltage is 200 volts per wire. The figure below shows the
connections between the D96 and the four D25s. Refer to the specific
plug-in module wiring information for details about the connector and
pin-out assignments.
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 1 1 10 9 8 7 6 5 4 3 2 1
96-pin female DIN c onnector (on the D IN-to-D cable)
96-pin male DIN connector (on the plug-in module)
1
14
13
25
CONNECTOR 1
1
14
13
25
CONNECTOR 3
13
1
14
25
CONNECTOR 2
1
14
13
25
CONNECTOR 4
N22 99 A DI N9 6-TO -QUAD-D 25 C A BL E
C B A
32313029282726252423222120191817161514131211109876 543 21
C B A
CONNECTOR 1
vs. 96-PIN DI N
SUB-D DIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
A1
B1
C1
A3
B3
C3
A5
B5
C5
A7
B7
C7
--
A2
B2
C2
A4
B4
C4
A6
B6
C6
A8
B8
C8
Note: A“--” indicates the
p
in is not u
SUB-D DIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
A9
B9
C9
A11
B11
C11
A13
B13
C13
A15
B15
C15
--
A10
B10
C10
A12
B12
C12
A14
B14
C14
A16
B16
C16
SUB-D DIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
A17
B17
C17
A19
B19
C19
A21
B21
C21
A23
B23
C23
--
A18
B18
C18
A20
B20
C20
A22
B22
C22
A24
B24
C24
SUB-D DIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
A25
B25
C25
A27
B27
C27
A29
B29
C29
A31
B31
C31
--
A26
B26
C26
A28
B28
C28
A30
B30
C30
A32
B32
C32
CONNECTOR 4
vs. 96-PIN DIN
CONNECTOR 3
vs. 96-PIN DIN
CONNECTOR 2
vs. 96-PIN DIN
