Chapter 7 Plug-in Modules
Terminals and Connections Information
7
N2327A Crimp and Insert Terminal Block
This terminal is for the N2267A plug-in module only. Refer to the
N2267A module wiring information (page 208) for details about the

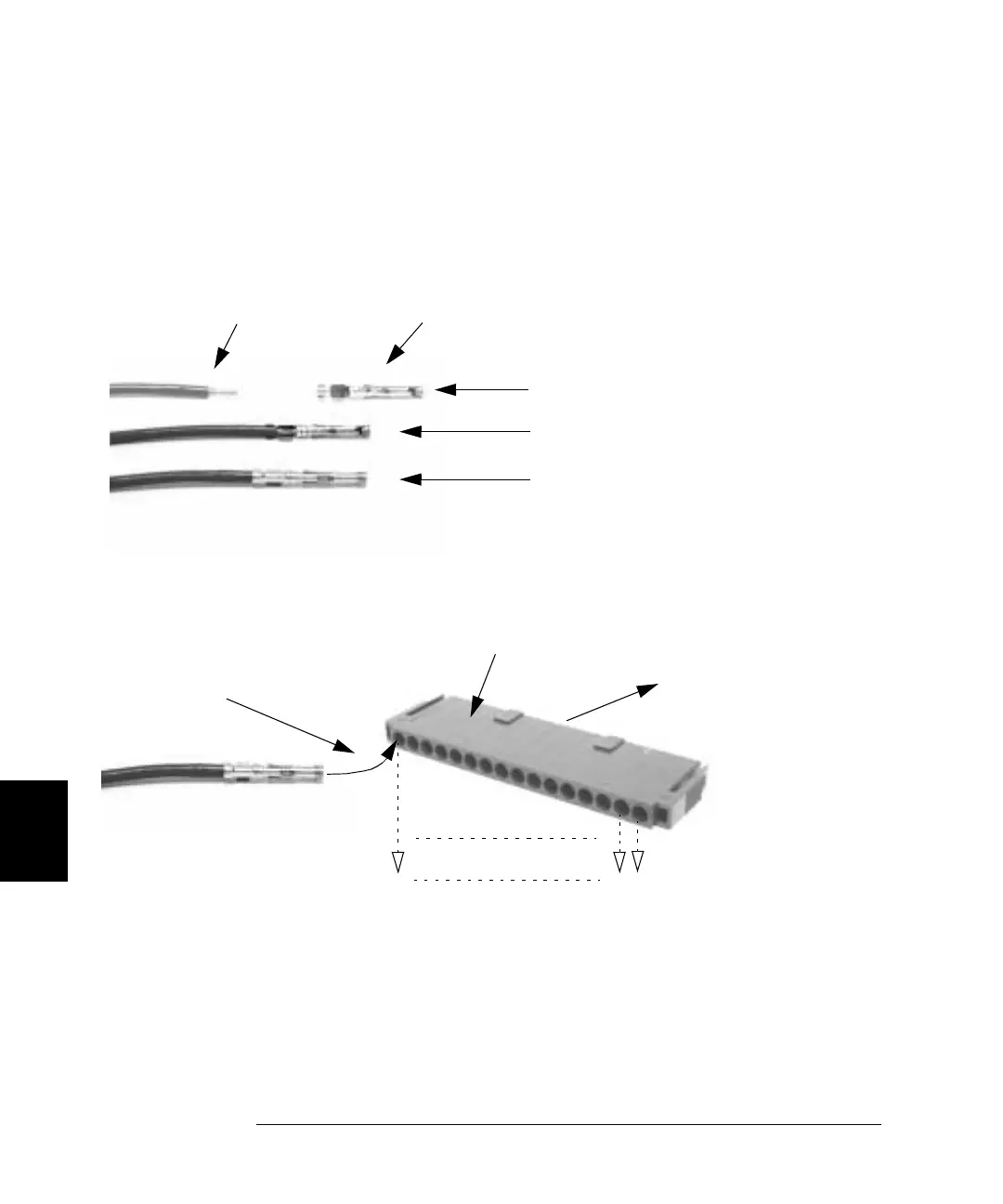

connector and pin-out assignments. The figures below illustrate how to
wire and assemble this terminal.
Stripped wire (14-18 AWG)
Socket
A. Prepare the Wire and the Socket.
B. Insert the Wire into the Socket.
C.
Crimp the Wire with the Socket by
using an AMP Hand Crimping
Tool (90067-5) or equivalent tool.
Insert wired Socket into the Connector
To the N2267A module.
In-Line Connector
16
21
Pin Number
To Next Page
