208
Chapter 7 Plug-in Modules
N2267A 8-Channel High Current GP Module
7

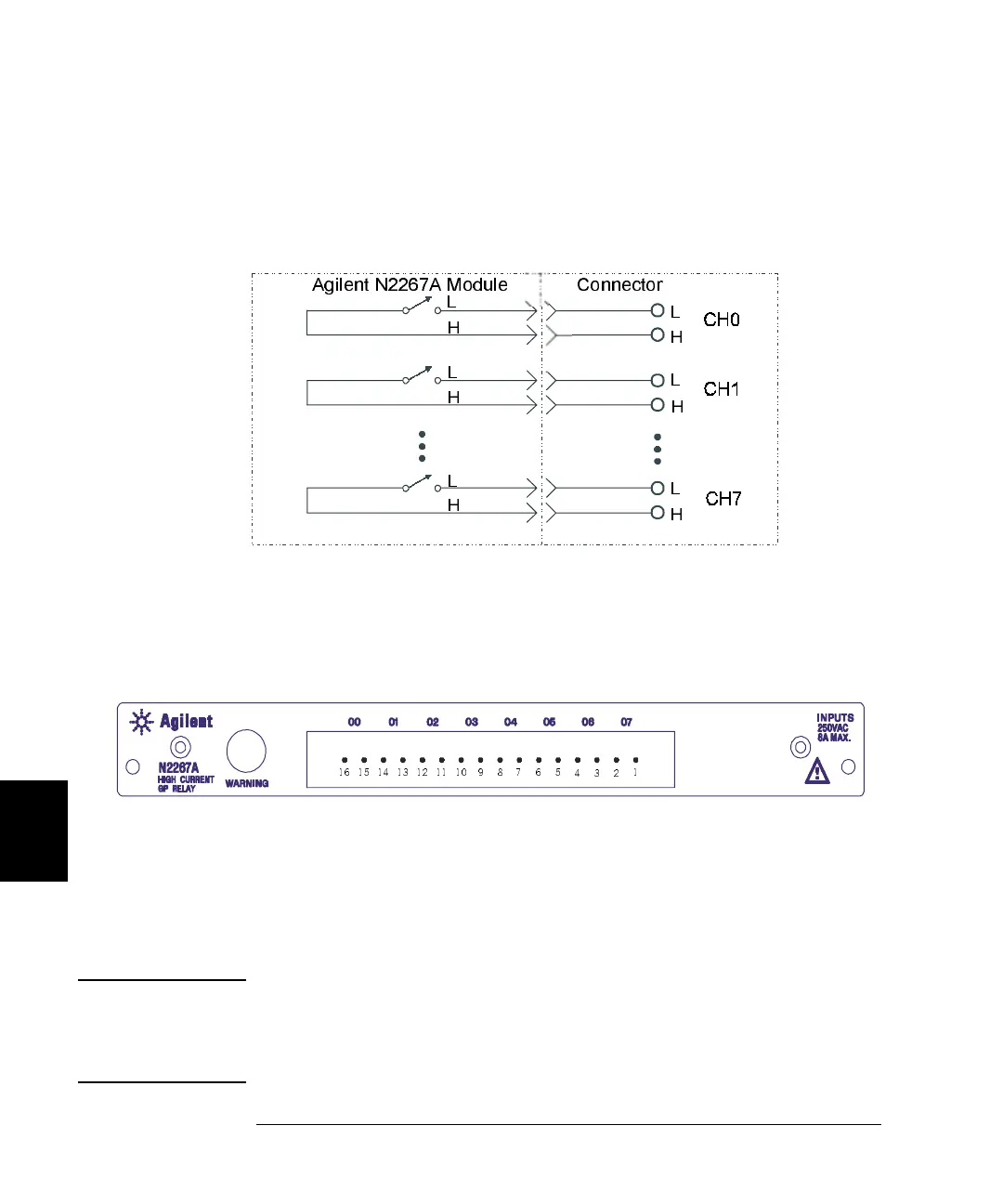

N2267A Simplified Schematic
A simplified schematic is shown below. The N2267A consists of
eight independent high current channels, each containing a Single Pole-
Single Throw (SPST) Normally Open (Form A) relay.
N2267A Wiring Information
The N2267A rear panel has two connectors: an SMB for the over-
temperature warning signal, and a 16-pin male connector for connections
to the relay contacts.
The 16-pin connector on the rear-panel is an AMP Metrimate In-Line
Connector: Right Angle Header 207544-1.
An Agilent N2327A terminal block can be used to make the connections
to the N2267A. Included in the N2327A are an AMP Metrimate In-Line
Connector: Plug, 207542-1 and an AMP Contact Type III Socket AWG18-
14, 66360-2. Refer to page 282 for more information about the N2327A.
WARNING Voltages greater than 30 Vrms, 42 Vpk or 60 Vdc present an electric shock
hazard. Disconnect source voltages before removing or connecting the
source-to-module I/O connector or wiring the connector. All field wiring
must be rated for the highest voltage applied to any single channel.
Agilent N2267A Module Connector
L
L
L
H
H
H
H
H
H
L
L
L
1
234
5
678
910
1112
13141516
To Next Page
