280
Chapter 7 Plug-in Modules
Terminals and Connections Information
7
N2298A DIN96 to D25 Cable
The N2298A is a female DIN96 to a male Sub-D25 Cable. The cable uses
26 AWG wire (which meets UL AWM: 2464) with overall foil shield. The

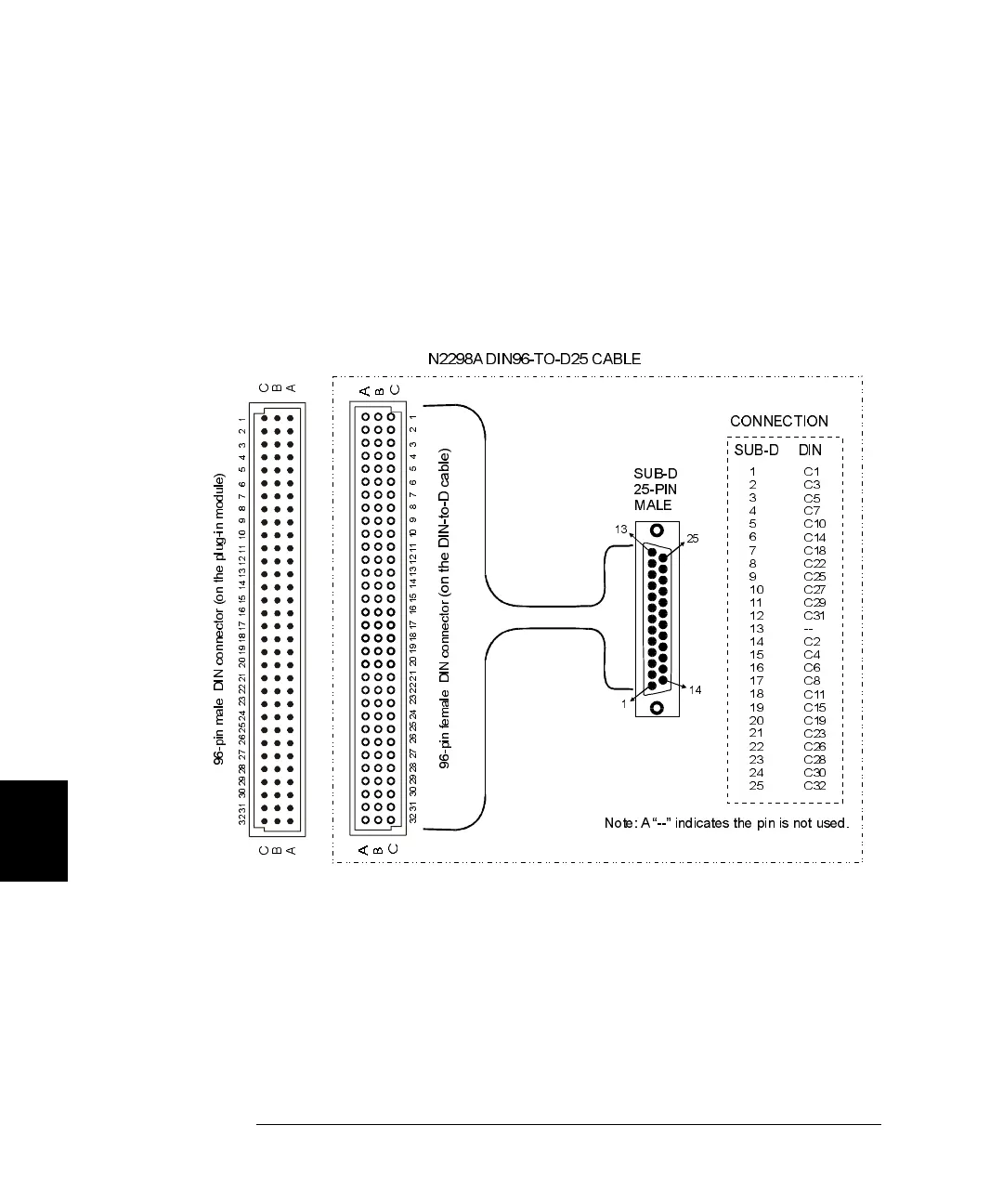

maximum voltage is 200 volts per wire. The figure below shows the
connections between the D96 and the Sub-D250. Refer to the N2262A
module wiring information (page 186) for details about the connector and
pin-out assignments.
C
B
A
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
C
B
A
32 31 30 29 28 2 7 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 1 0 9 8 7 6 5 4 3 2 1
96-pin female DIN connector
(on the DIN-to-D cable)
96-pin male DIN connector (on the plug-in module)
N2298A DIN96-TO-D25 CABLE
1
14
13
25
SUB-D
25-PIN
MALE
CONNECTION
SUB-D DIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
C1
C3
C5
C7
C10
C14
C18
C22
C25
C27
C29
C31
--
C2
C4
C6
C8
C1 1
C15
C19
C23
C26
C28
C30
C32
Note: A “--” indicates the pin is not used.
