Agilent Technologies Agilent 3499A User Manual

186
Chapter 7 Plug-in Modules
N2262A 4 x 8 2-Wire Matrix Switch Module
7
N2262A Wiring Information
There are three methods available to connect to the N2262A:
•
A screw terminal block, the N2292A (described on page 277).
•
A direct wiring (insulation displacement) connector, the N2296A
(described on page 278).
•
A DIN96 to twin D25 Cable, the N2298A (described on page 280).

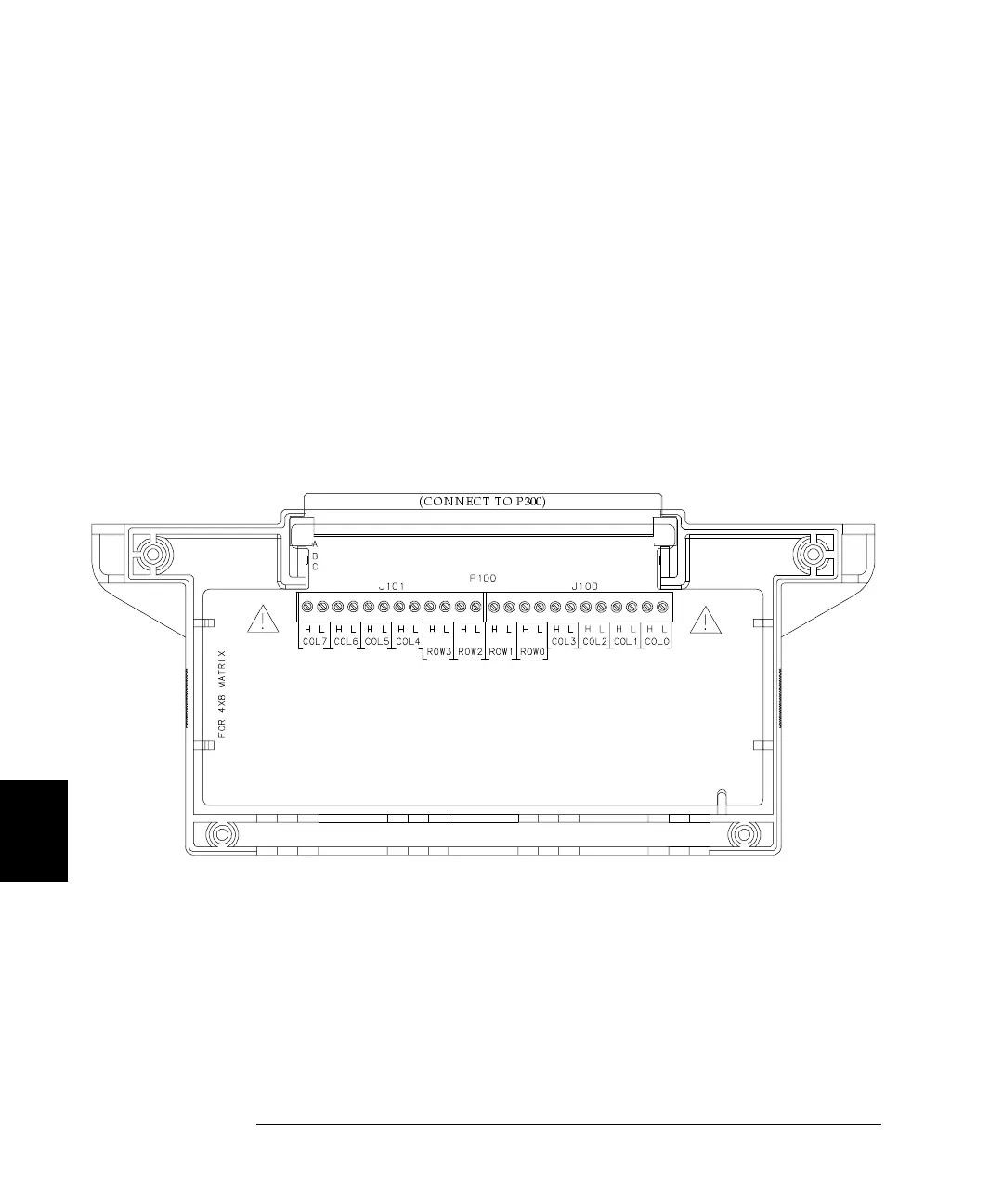

The screw terminal block (N2292A) is shown below. To use the other
connection options, you will need to use the pinout information on page
187.
(CONNECT TO P300)
