279
Chapter 7 Plug-in Modules
Terminals and Connections Information
4
7

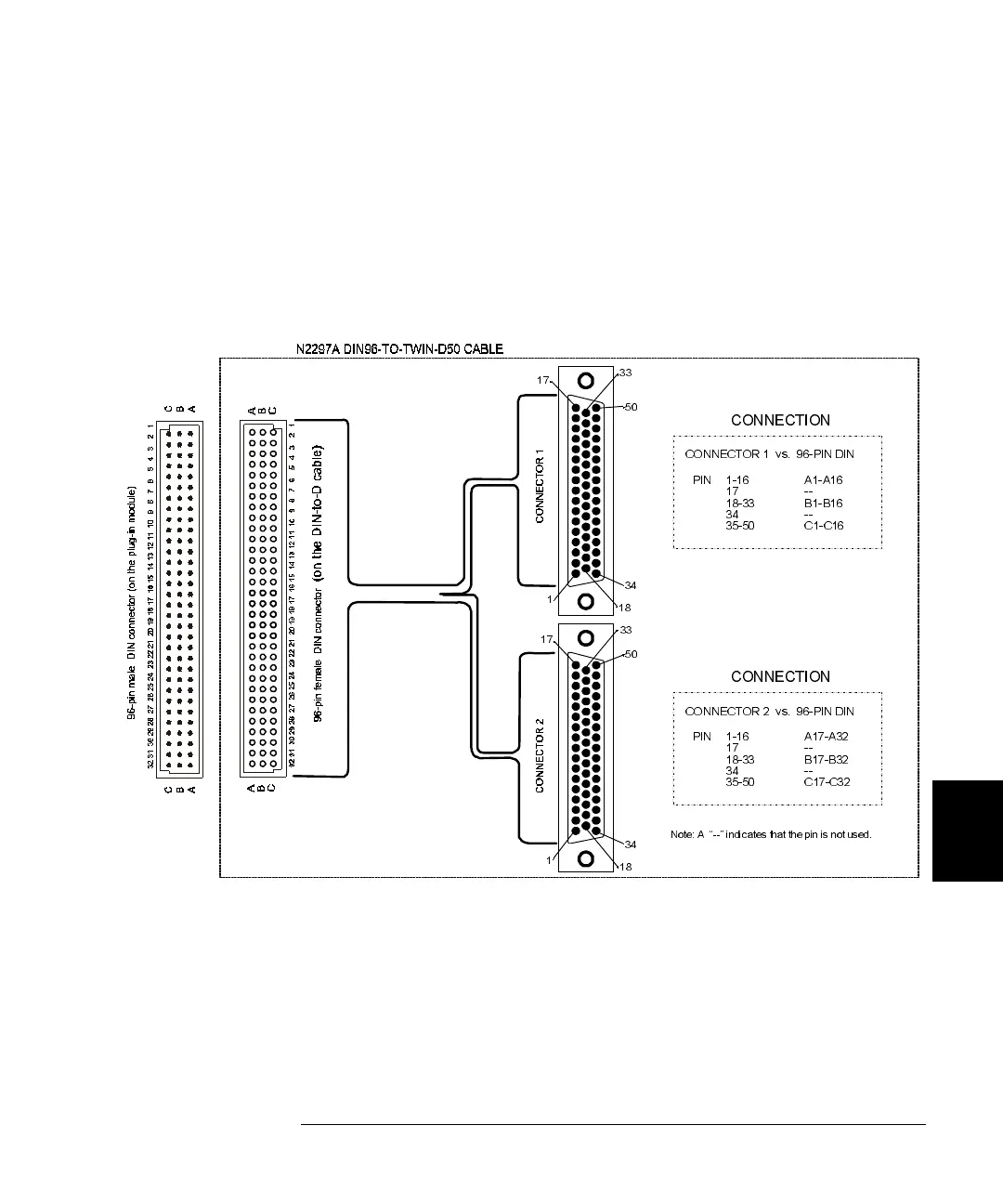

N2297A DIN96 to twin D50 Cable
The N2297A is a female DIN96 to twin male D50 Cable. The cable uses
26 AWG wire (which meets UL AWM: 2464) with overall foil shield. The
maximum voltage is 200 volts per wire. The figure below shows the
connections between the D96 and the two D50s. Refer to the specific
plug-in module wiring information for details about the connector and
pin-out assignments.
17
1
18
34
33
50
17
18
34
33
50
1
Note: A “--” indicates that the pin is not used.
CONNECTION
CONNECTOR 1 vs. 96-PIN DIN
PIN 1-16
17
18-33
34
35-50
A1-A16
--
B1-B16
--
C1-C16
CONNECTOR 2 vs. 96-PIN DIN
PIN 1-16
17
18-33
34
35-50
A17-A32
--
B17-B32
--
C17-C32
CONNECTION
