Chapter 7 Plug-in Modules
N2264A Multifunction Module
4
7

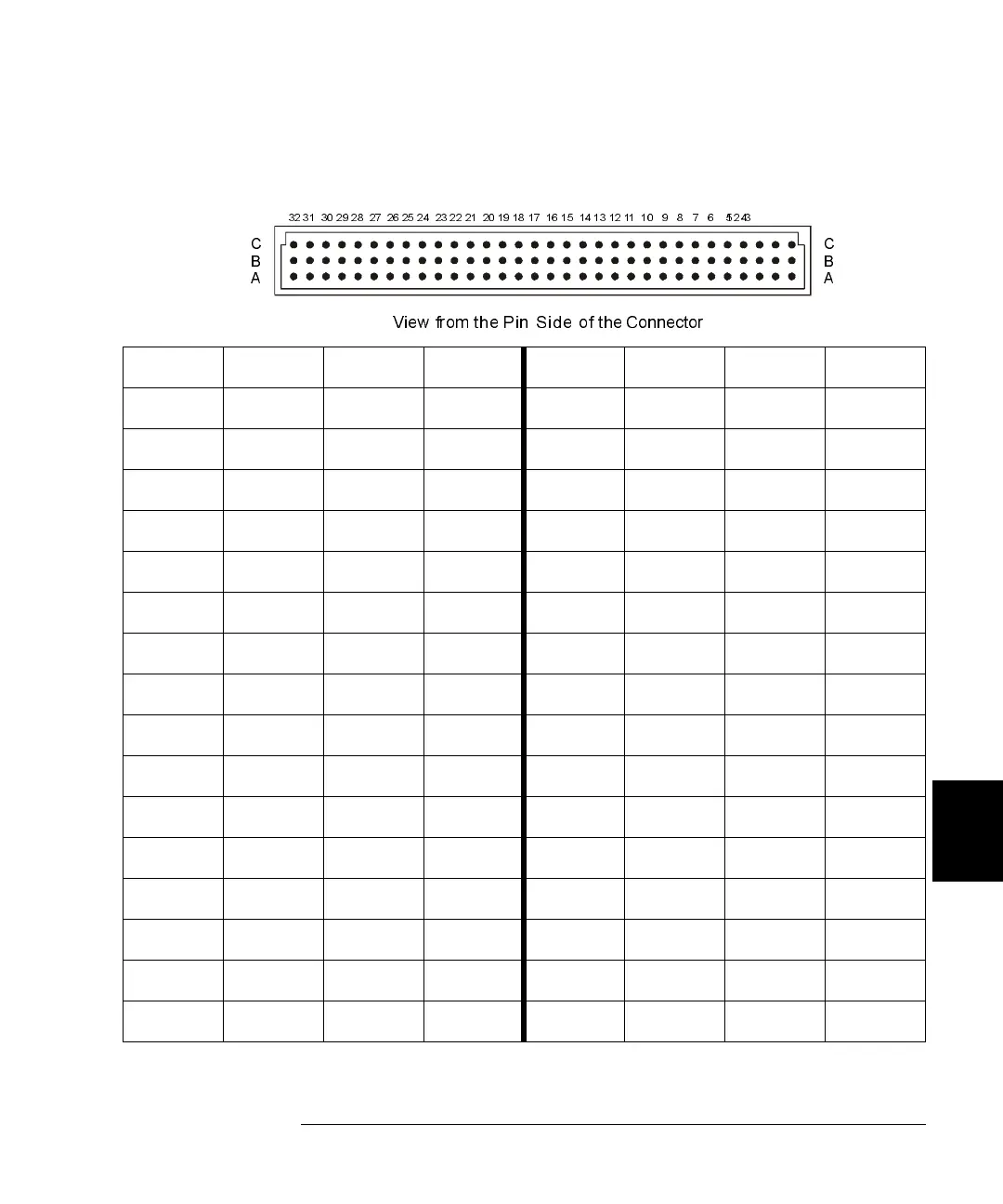

N2264A Pinout P601 is a 96-pin male DIN connector mounted on the
N2264A. The connector and pinout assignments are shown below.
Pin #ABCPin #ABC
1
BIT30 BIT31 BIT32
17
CH6_L CH7_L CH8_L
2
GND GND GND
18
CH6_H CH7_H CH8_H
3
BIT33 BIT34 BIT35
19
CH9_L CH10_L CH11_L
4
BIT36 BIT37 GND
20
CH9_H CH10_H CH11_H
5
GND GND GND
21
CH20_L CH20_L CH20_L
6
BIT38 BIT39 BIT40
22
CH20_L CH20_L CH20_L
7
GND GND GND
23
CH20_H CH20_H CH20_H
8
BIT41 BIT42 BIT43
24
CH20_H CH20_H CH20_H
9
BIT44 BIT45 GND
25
CH21_L CH21_L CH21_L
10
I/O PCTL PFLG
26
CH21_L CH21_L CH21_L
11
GND GND GND
27
CH21_H CH21_H CH21_H
12
Not used Not used Not used
28
CH21_H CH21_H CH21_H
13
CH0_L CH1_L CH2_L
29
CH22_L CH22_L CH22_L
14
CH0_H CH1_H CH2_H
30
CH22_L CH22_L CH22_L
15
CH3_L CH4_L CH5_L
31
CH22_H CH22_H CH22_H
16
CH3_H CH4_H CH5_H
32
CH22_H CH22_H CH22_H
C
B
A
32313029282726252423222120191817161514131211109876 54321
View from the Pin Side of the Connector
