Chapter 7 Plug-in Modules

44470D 20-Channel MUX Module

44470D Wiring Information

Use the Agilent 44480B Terminal Block to make connections to the

44470D. One 44480B is supplied with the module. The terminal block

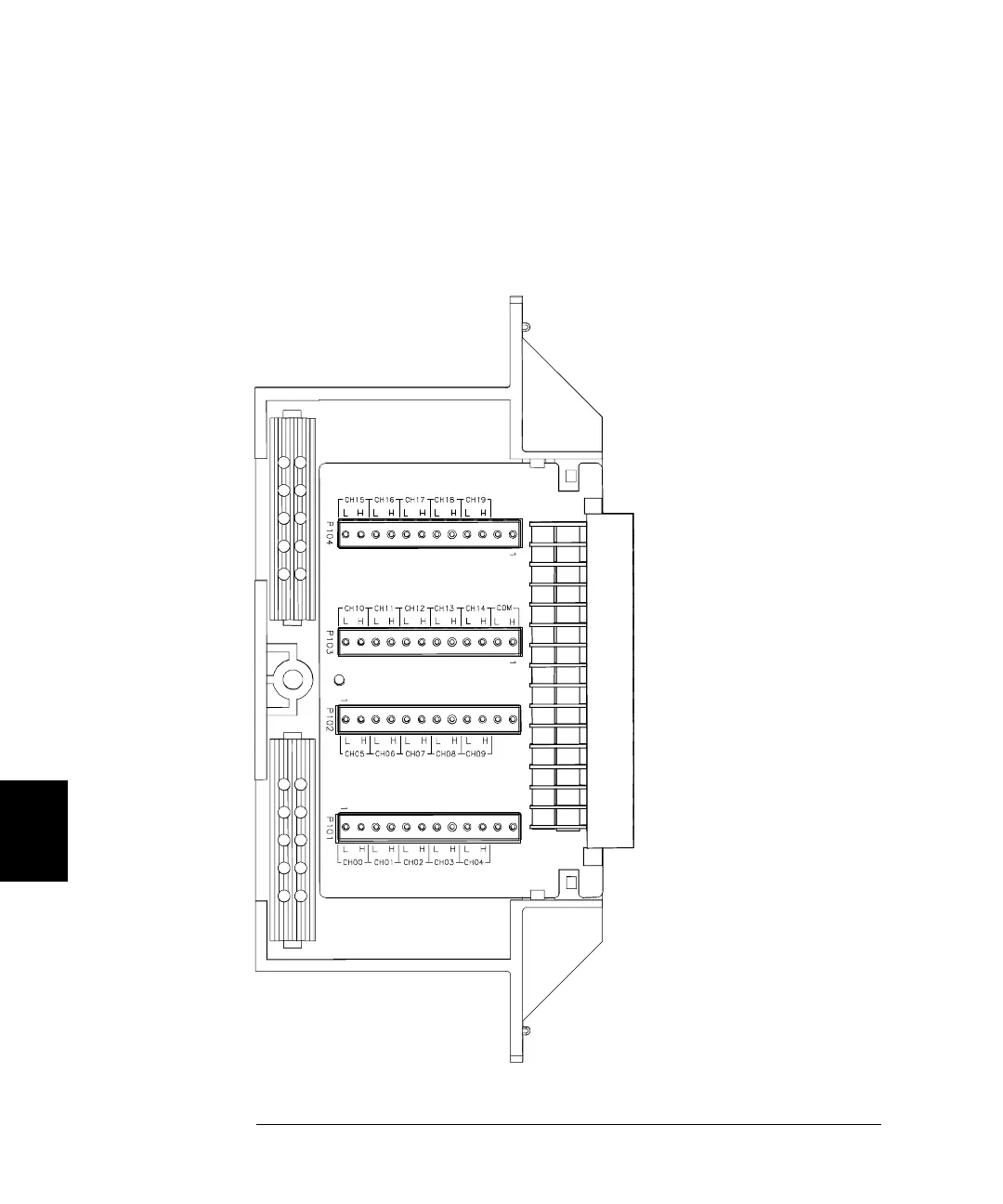

connectors are shown below. Additional information about the terminal

block is given on page 287.

J101 (Connect to J901)
