Chapter 7 Plug-in Modules
44471D 20-Channel GP Relay Module
7
44471D Wiring Information
Use the Agilent 44481B Terminal Block to make connections to the
44471D. One 44481B is supplied with the module. The terminal block

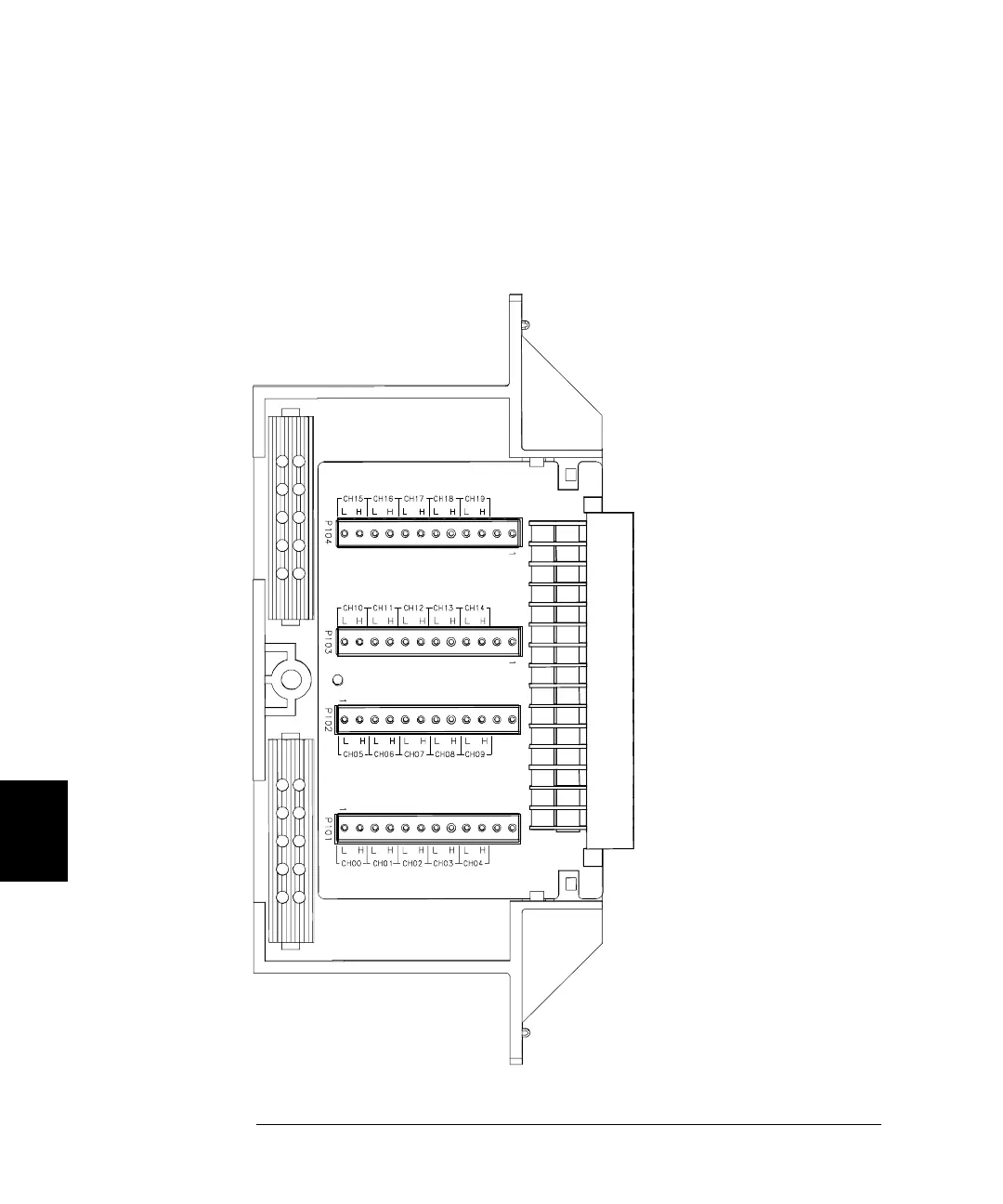

connectors are shown below. Additional information about the terminal
block is given on page 287.
J101 (Connect to J901)
