Chapter 7 Plug-in Modules
44476B Microwave Switch Module
4
7
Configuration
Mount user-supplied microwave switches on the module after connecting

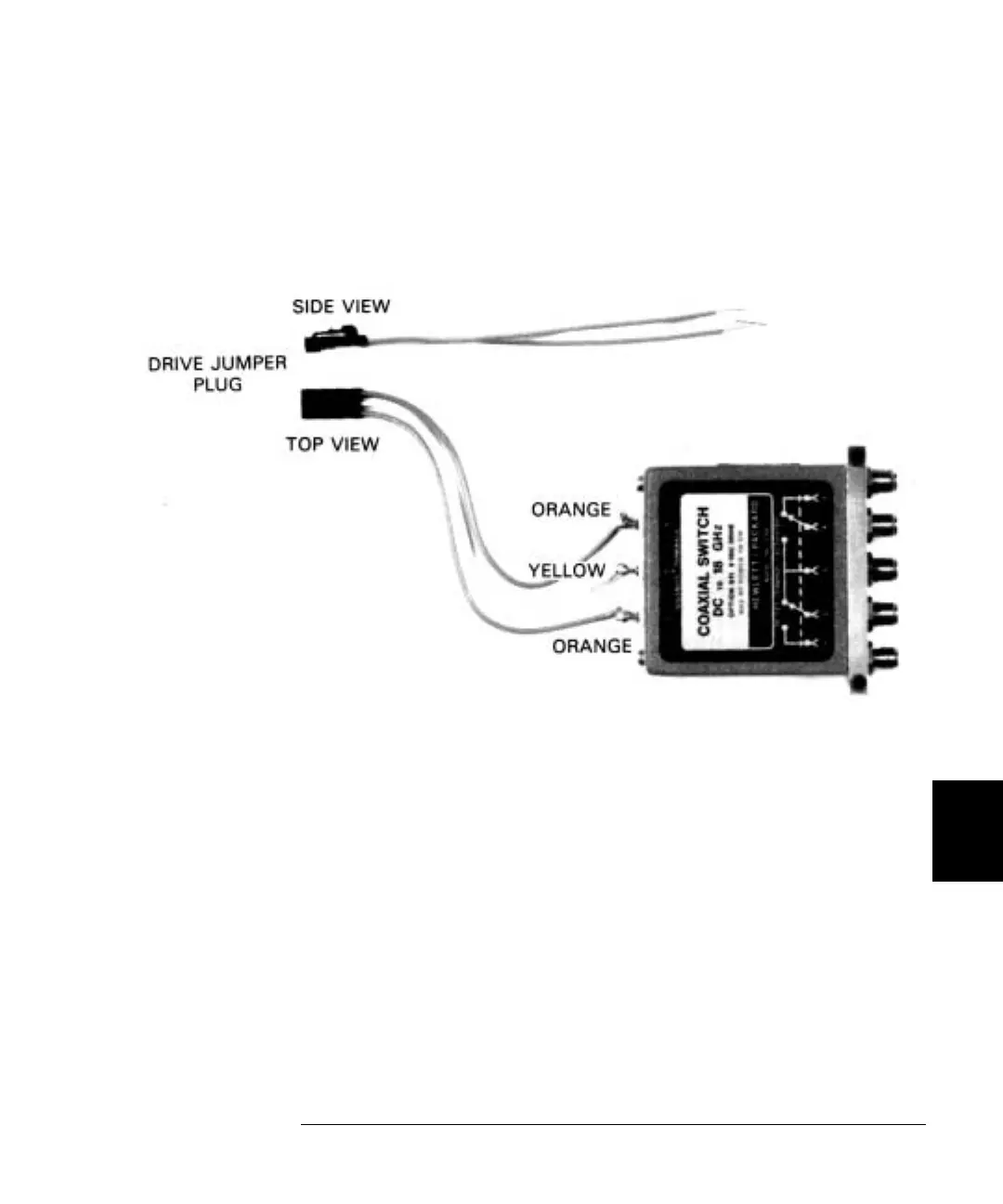

the channels 00 and 01 drive jumpers (W1 and W2). The figure below
shows the drive jumper orientation.
