266
Chapter 7 Plug-in Modules
44477A Form-C Relay Module
7

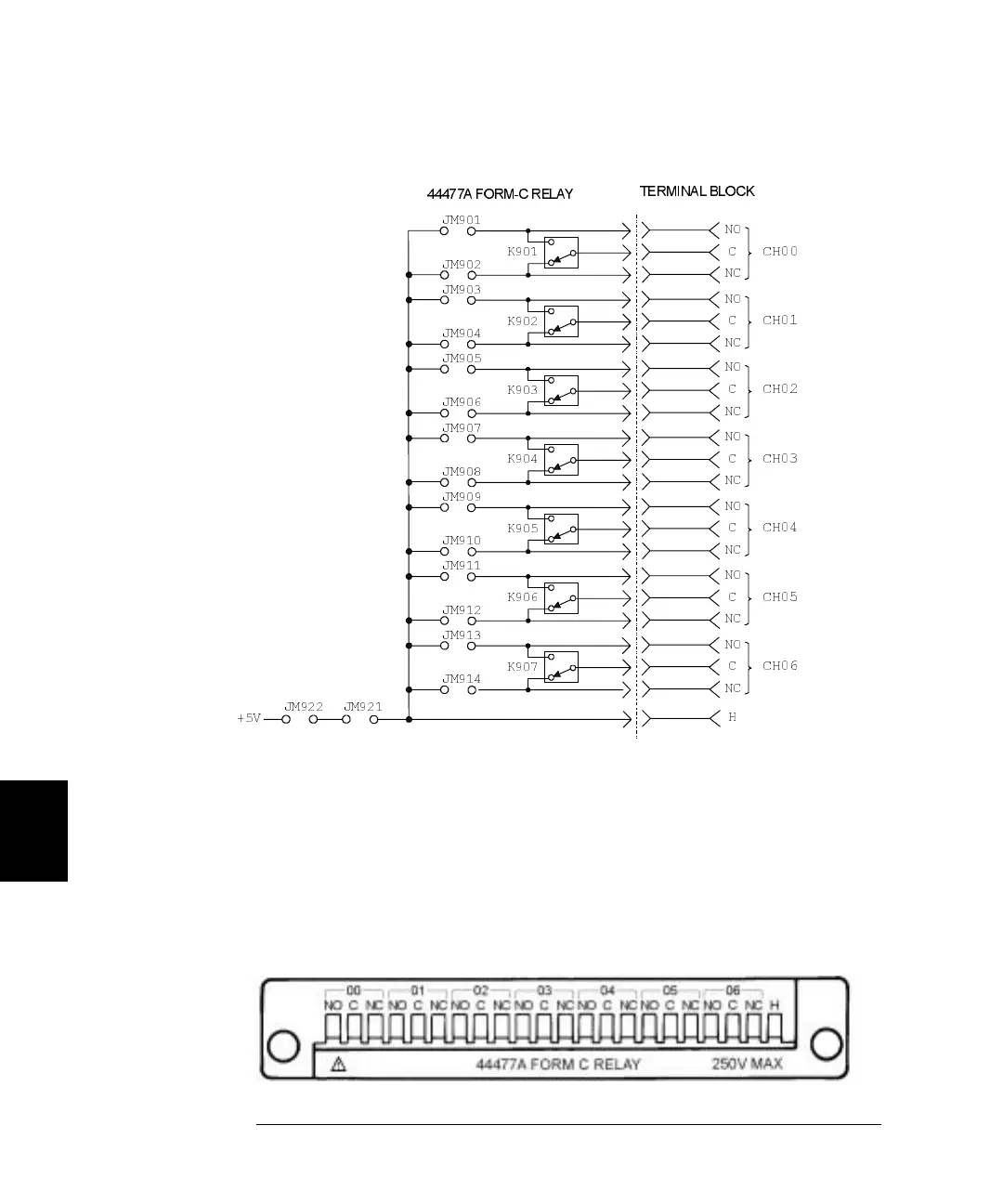

44477A Wiring Information
Use the Agilent 44487A Terminal Block to make connections to the
44477A. One 44487A is supplied with the module. Included with the
terminal block is a numbered label you can apply for slot identification.
The terminal block includes a screw terminal that connects external
wiring to the 44477A. The screw terminal is shown below. Additional
information about the terminal block is given on page 285.
44477A FORM-C RELAY
JM903
JM904
K902
NO
C
NC
CH01
JM901
JM902
K901
NO
C
NC
CH00
JM905
JM906
K903
NO
C
NC
CH02
JM907
JM908
K904
NO
C
NC
CH03
JM909
JM910
K905
NO
C
NC
CH04
JM911
JM912
K906
NO
C
NC
CH05
JM913
JM914
K907
NO
C
NC
CH06
JM921
H
JM922
+5V
To Next Page
