Chapter 2 Front-Panel Operation
To Configure for External Trigger
4
2

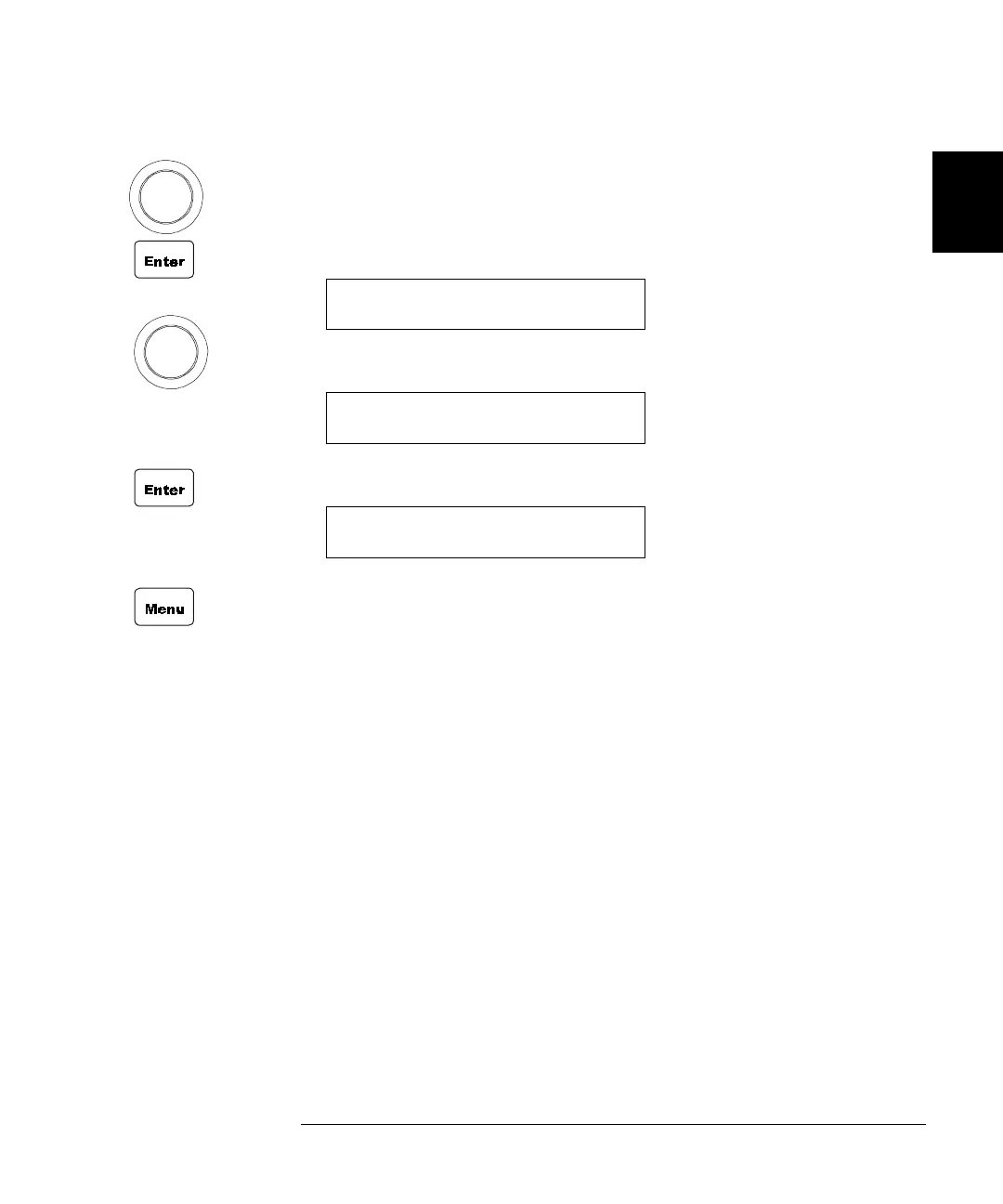

4. Turn the knob to select the slot for the external trigger. Slot 0 (control
module) is the built-in external trigger (available at the rear panel
mini DIN connector, see page 7). If a 44474A is not installed, only slot
0 will be shown. Press Enter. The display shows the current setting
for the external trigger.
5. Turn the knob to show the alternate choice.
6. Press Enter to accept the choice and return to the first level menu.
7. Press the Menu key to exit the menu. The CONFIG annunciator
turns off.
DISABLE
ENABLE
CONF EXT TRIG
To Next Page
