Agilent 1200 Series Autosampler Reference Manual 147
Repairing the Autosampler 4
Injection-Valve Assembly
Frequency When defective
Tools required Pozidrive No. 1 screwdriver
1/4 inch wrench
Parts required Injection valve 0101-0921 for G1329A
Injection valve 0101-1267 for G2260A
Preparations for this
procedure
Remove all capillaries from the injection valve (page 35).
Remove the top cover (page 134).
Remove the transport assembly (page 139).
Remove the sampling unit (page 141).

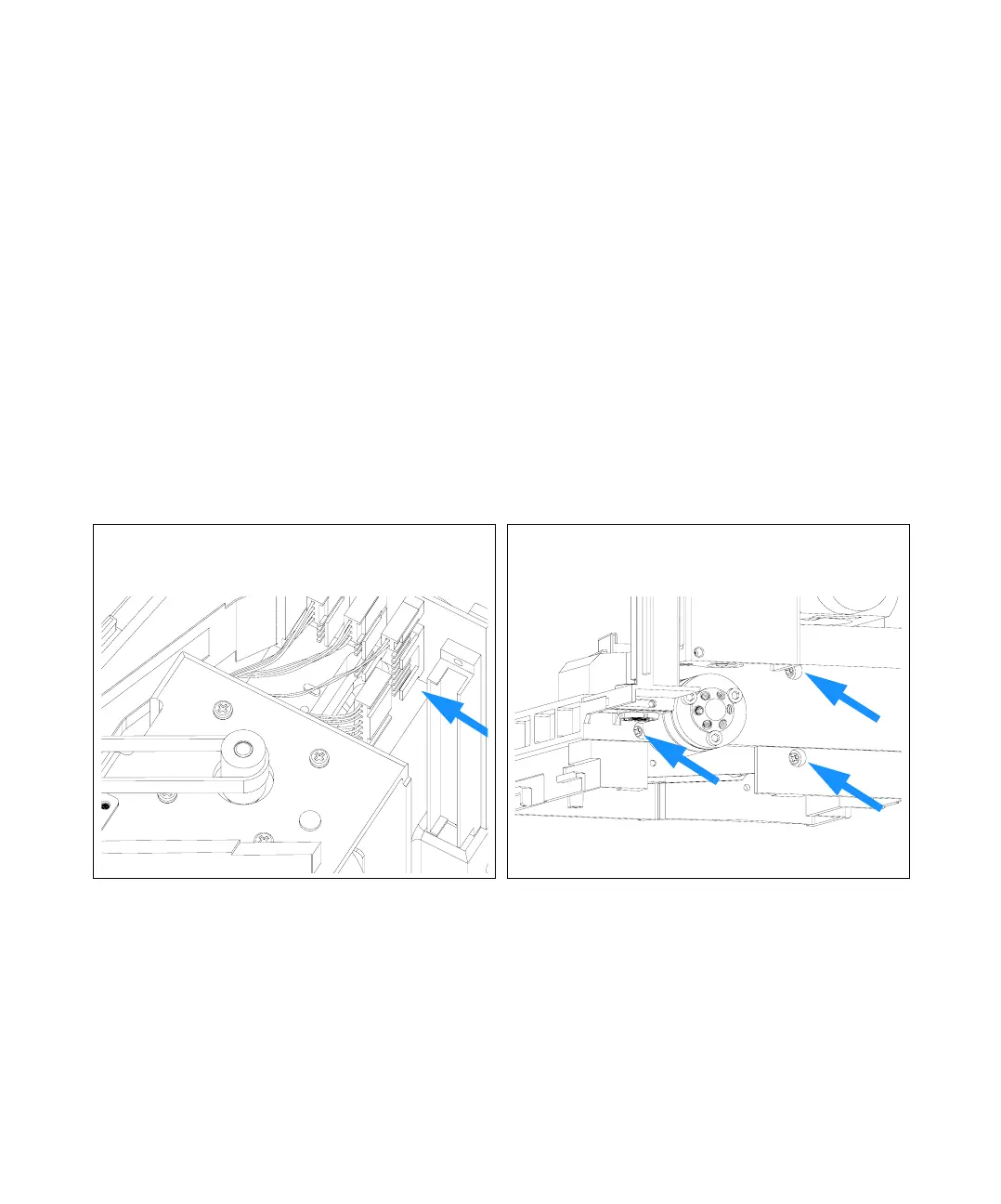

1 Disconnect the valve-cable connector from the SUD board
(labelled “Valve Assy”).
2 Remove the three fixing screws.
