210 Agilent 1200 Series Autosampler Reference Manual
6Identifying Cables

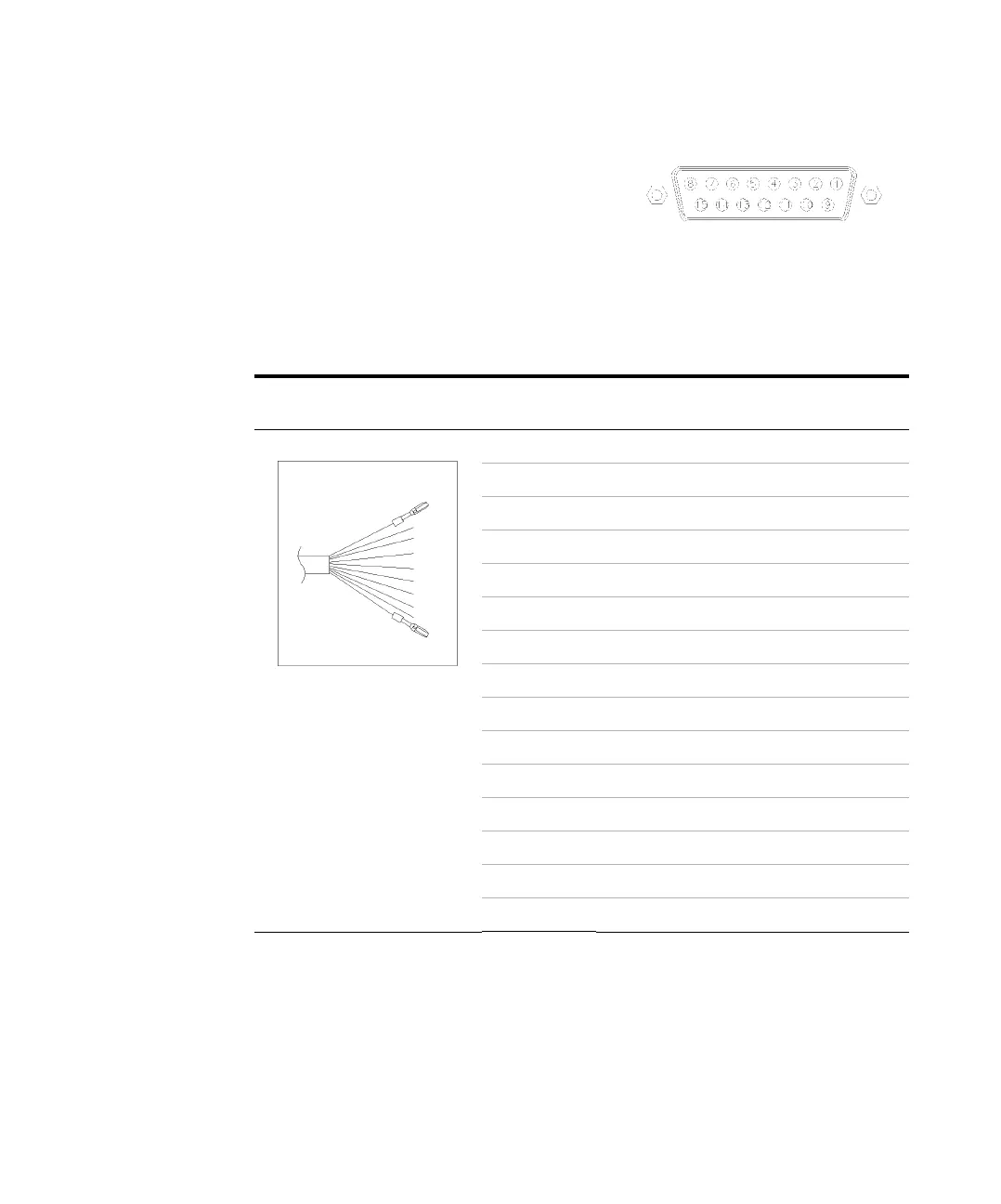

BCD Cables
One end of these cables provides a 15-pin BCD connector to be connected to
the Agilent 1200 Series modules. The other end depends on the instrument to
be connected to
Agilent 1200 to General Purpose
Connector
G1351-81600
Wire Color Pin
Agilent 1200
Signal Name BCD Digit
Green 1 BCD 5 20
Violet 2 BCD 7 80
Blue 3 BCD 6 40
Yellow 4 BCD 4 10
Black 5 BCD 0 1
Orange 6 BCD 3 8
Red 7 BCD 2 4
Brown 8 BCD 1 2
Gray 9 Digital ground Gray
Gray/pink 10 BCD 11 800
Red/blue 11 BCD 10 400
White/green 12 BCD 9 200
Brown/green 13 BCD 8 100
not connected 14
not connected 15 +5 V Low
