Agilent 1200 Series Autosampler Reference Manual 157
Repairing the Autosampler 4
ASM Board
Frequency When defective
Tools required 5 mm wrench (for remote-connector screws).
7 mm wrench (for GPIB connector screws).
Parts required ASM board G1329-69500 for G1329A- G2260A
Preparations for this
procedure
Remove the top cover and foam (page 134).
Remove the transport assembly (page 139).
CAUTION
The ASM board is sensitive to electrostatic discharge. Always use the ESD strap (see
“Using the ESD Strap” on page 107) when handling electronic boards.
NOTE
This procedure requires reloading the autosampler firmware, reprogramming of the
instrument serial number, and realignment of the gripper.

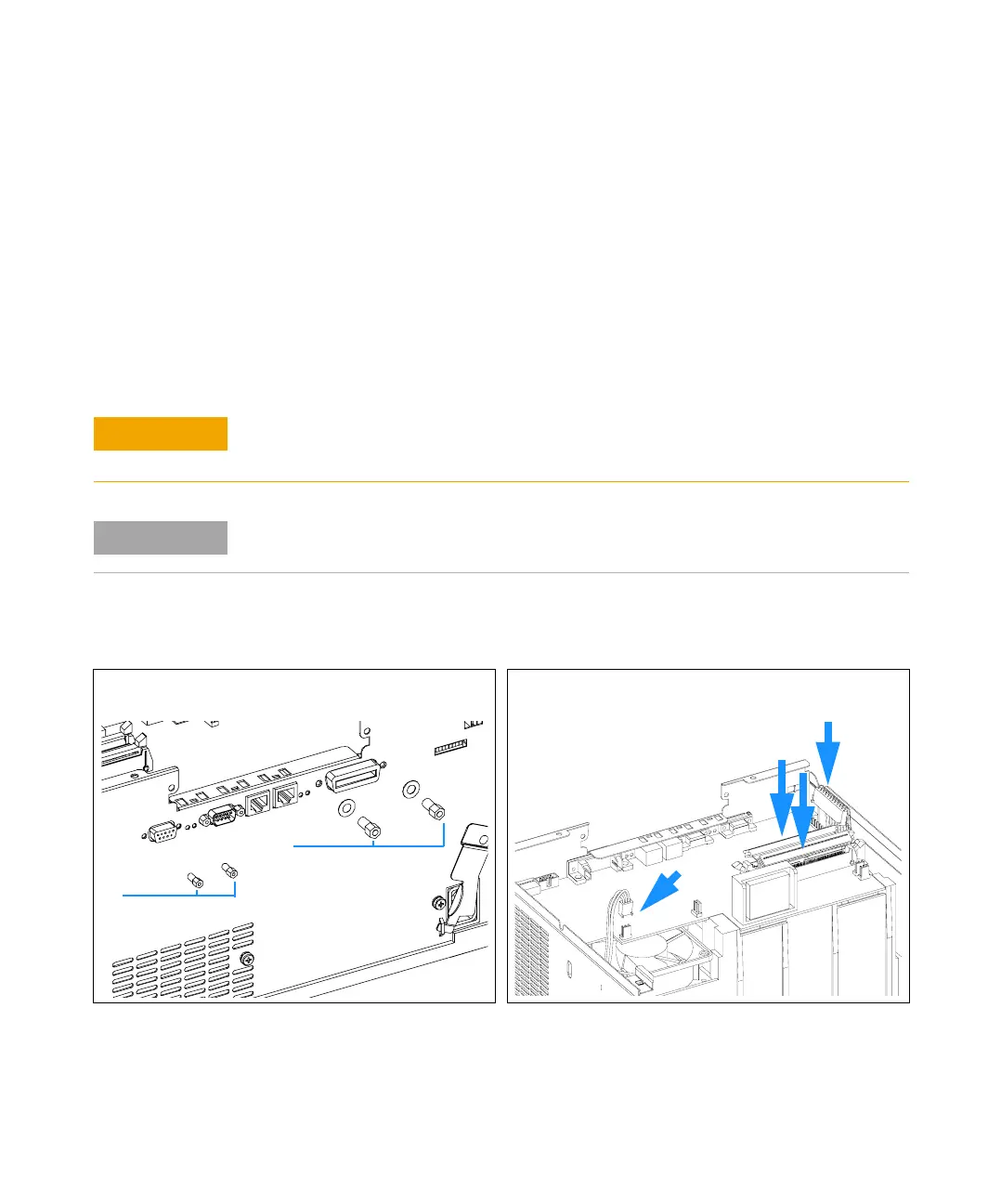

1 Remove the connector screws from the GPIB and RS232
connectors.
2 Disconnect all connectors on ASM board.
CellFrame
GPIB
screws
RS232
screws
CellFrame
