64 Agilent 1100 Series Fraction Collectors User’s Guide
3 Repairing the Fraction Collector
Simple Repairs

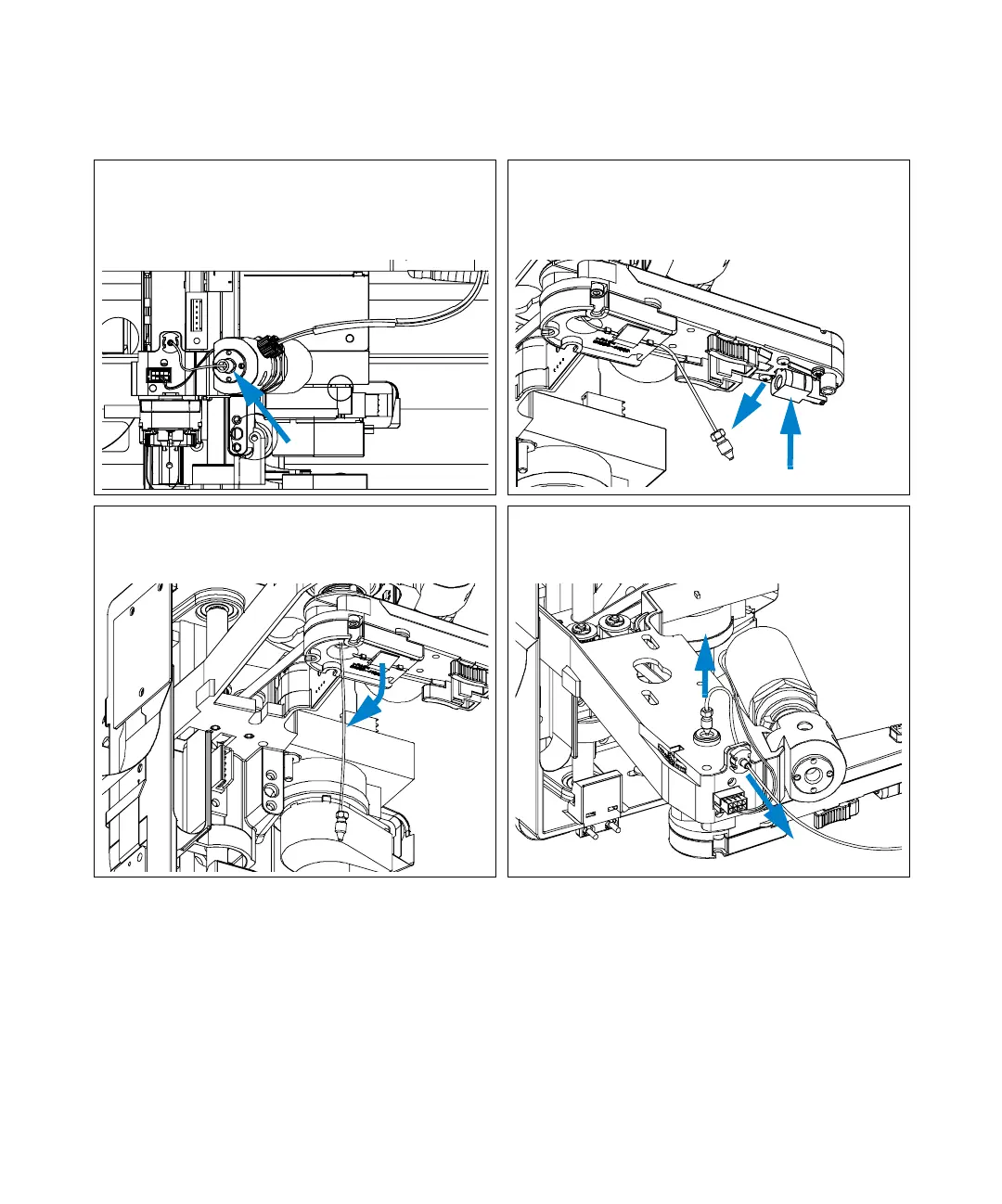

2 Unscrew the finger-tight fitting of the valve
to needle tubing assembly at the diverter
valve.
3 Using the 4 mm wrench and the 5/16“
wrench for counter-holding unscrew the
valve to needle tubing from the needle.
(Viewed from the bottom)
4 Un-clip the tubing from the bottom of the
needle carrier assembly.
5 Slide the tubing through the hole in the
needle carrier assembly (from bottom to top)
and out of the holder in the z-arm assembly.
1
2
To Next Page
