Repairing the Fraction Collector 3
Simple Repairs

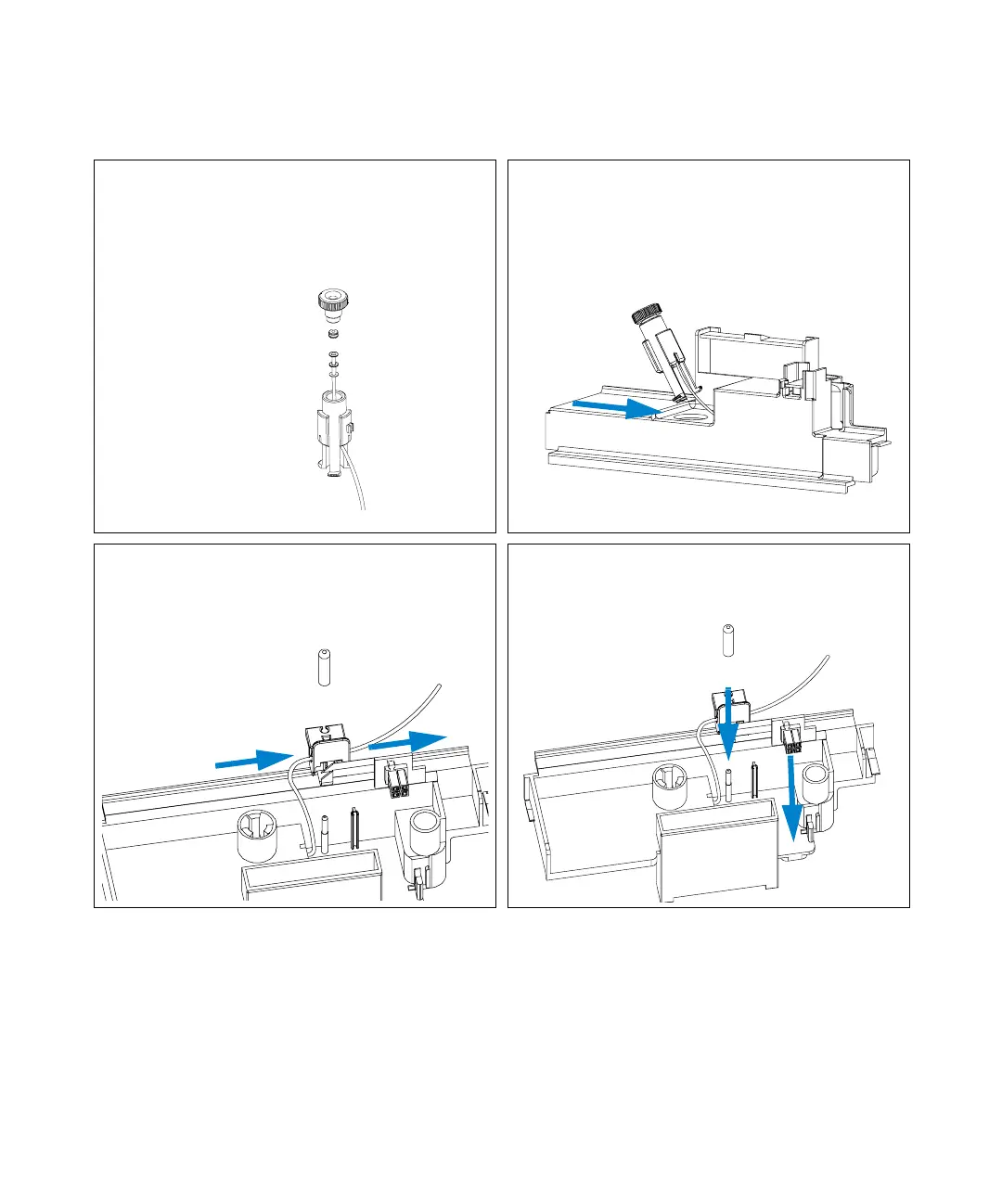

4 Exploded view for the parts of the internal
tray. Once the funnel has been removed from
the internal tray, it can be disassembled and
defective parts can be replaced (funnel screw
(1), seals (2), tubing (3) or funnel holder (4)).
5 Slide the waste tubing of the newly
assembled funnel assembly through the slit
beside the funnel in the internal tray
assembly
6 Turn the internal tray upside down. Slide the
funnel’s waste tubing through the flow delay
sensor.
7 Turn the internal tray upside down.Slide the
funnel’s waste tubing through the flow delay
sensor.
1
2
3
4
