3 Repairing the Fraction Collector
Simple Repairs

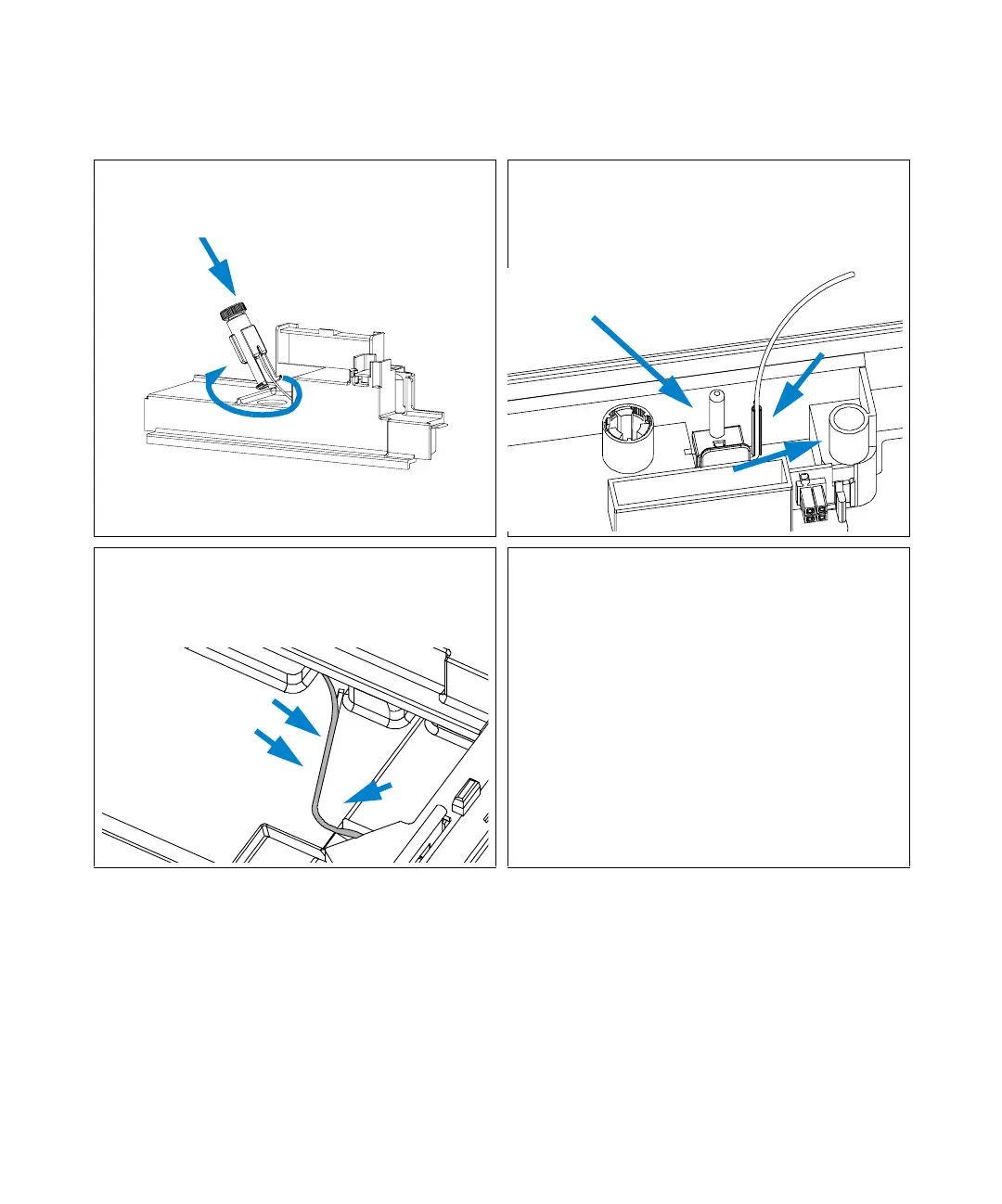

8 Insert the funnel into the tray and screw it
tight (clockwise)
9 Re-install the plug that holds the flow delay
sensor (1), pull the waste tubing tight
through the flow delay sensor (2) and mount
the waste tubing (3).
10 Re-install the internal tray and make sure to
route the waste tubing out through the outlet
of the instrument, correctly (see
“Exchanging the Internal Tray” on page 74).
On completion of this procedure:
• Re-install the tray(s) in the tray base.
• Start the instrument.
• Close the front cover.
