1260 Infinity II Flexible Pump User Manual 191

8Maintenance

Pump Head Maintenance (Tool Free)

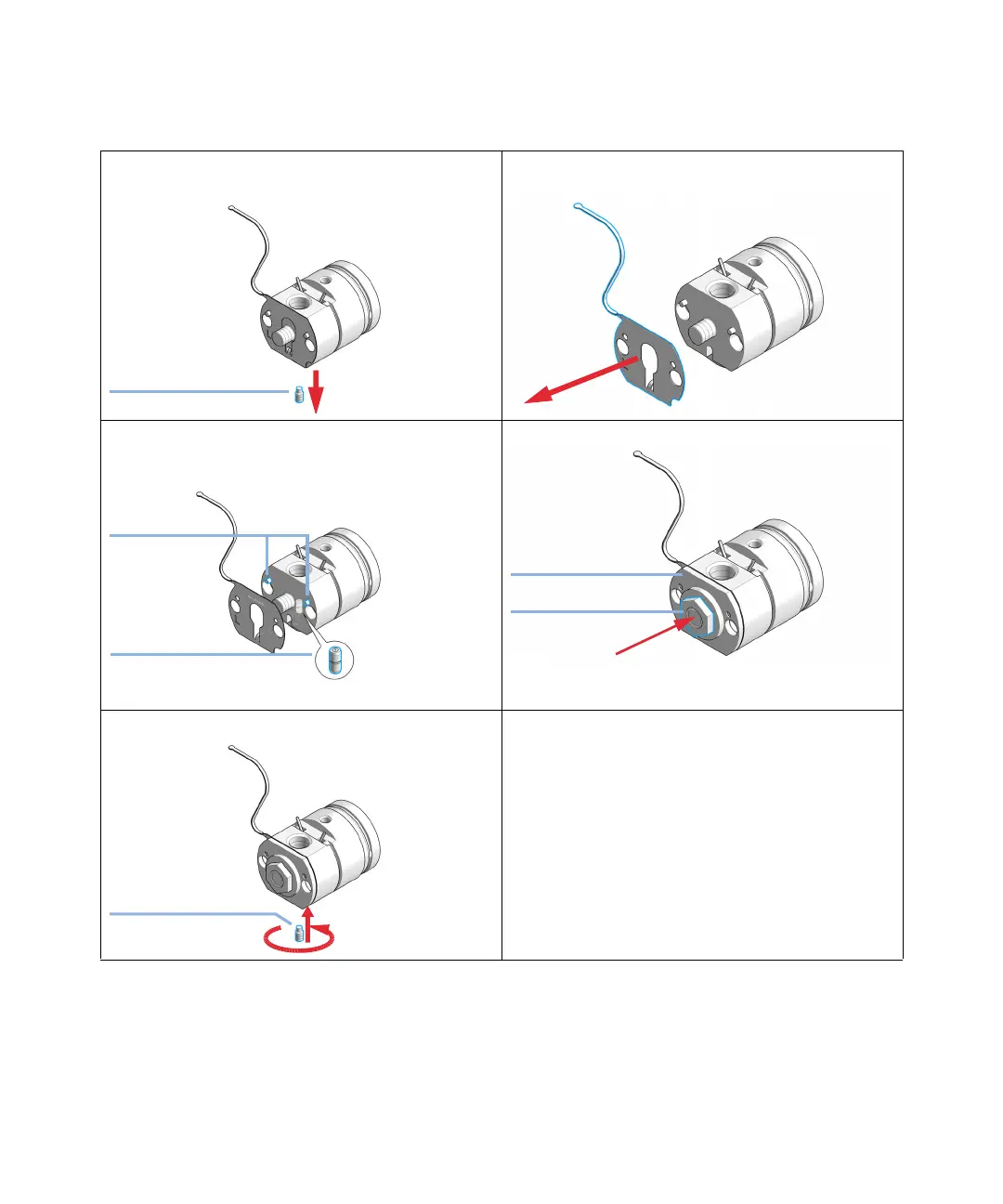

3 Remove the screw at the bottom of the pump head. Do

not drop the golden spacer fitting.

4 Lift out the heat exchanger.

5 If removed, first insert the spacer fitting. Then insert the

new heat exchanger to the opening in the pump head

and lift it over the pins.

6 Use the 19 mm screw for fixing the front plate.

7 Insert and fix the screw.

Screw

Spacer fitting

Pins

Front plate

Screw

3 Nm

approx.
