Replace Parts of the Multipurpose Valve (G7104C)
Replace Parts of the Multipurpose Valve
(G7104C)
1 Use the 9/64 inch hex key for opening the valve head.
2 Replace parts as required.
3 Reassemble the valve head mounted to the valve drive.
Tools required p/n Description
8710-2394 9/64 inch hex key
Parts required p/n Description
1535-4045 Bearing ring
5068-0202 Rotor seal, Multipurpose Valve, PEEK, 1300 bar
5068-0120 Stator ring
5068-0001 Stator head
1535-4857 Stator screws, 10/pk
Preparations
Remove all capillary connections from the Multipurpose Valve.

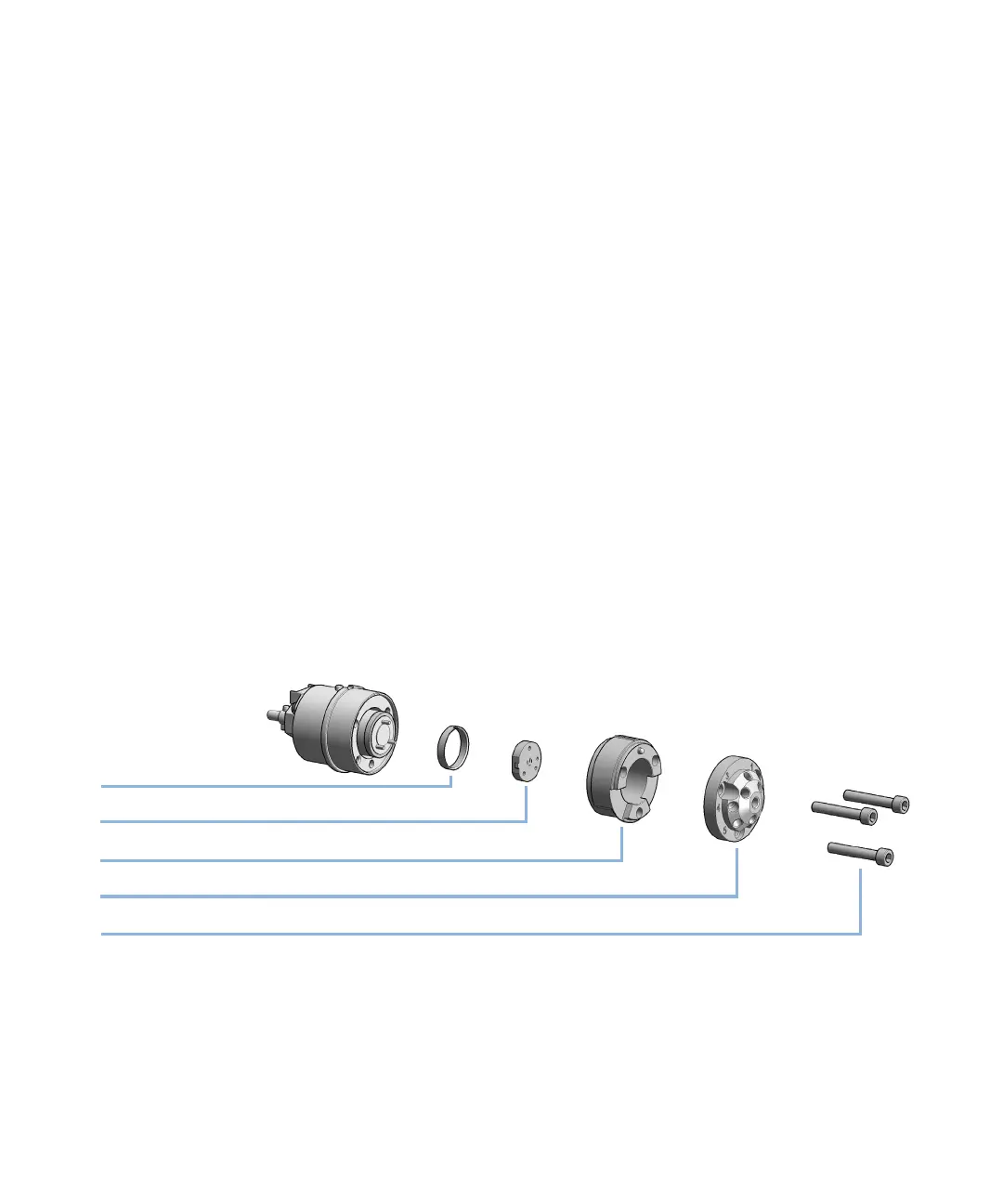

Bearing ring
Rotor seal
Stator ring
Stator head
Stator screws
