1Introduction
Positions of the Multi Purpose Valve
1260 Infinity II Flexible Pump User Manual 16
Positions of the Multi Purpose Valve
The Multipurpose Valve allows easy software controlled switching between
different modes of operation.
Normal Operating Mode Without Mixer
In normal operating mode, the flow comes from the pump head, passes the
pressure sensor and arrives at the central port of the Multipurpose Valve. The
flow leaves the valve through port 4 to the system (autosampler etc.).

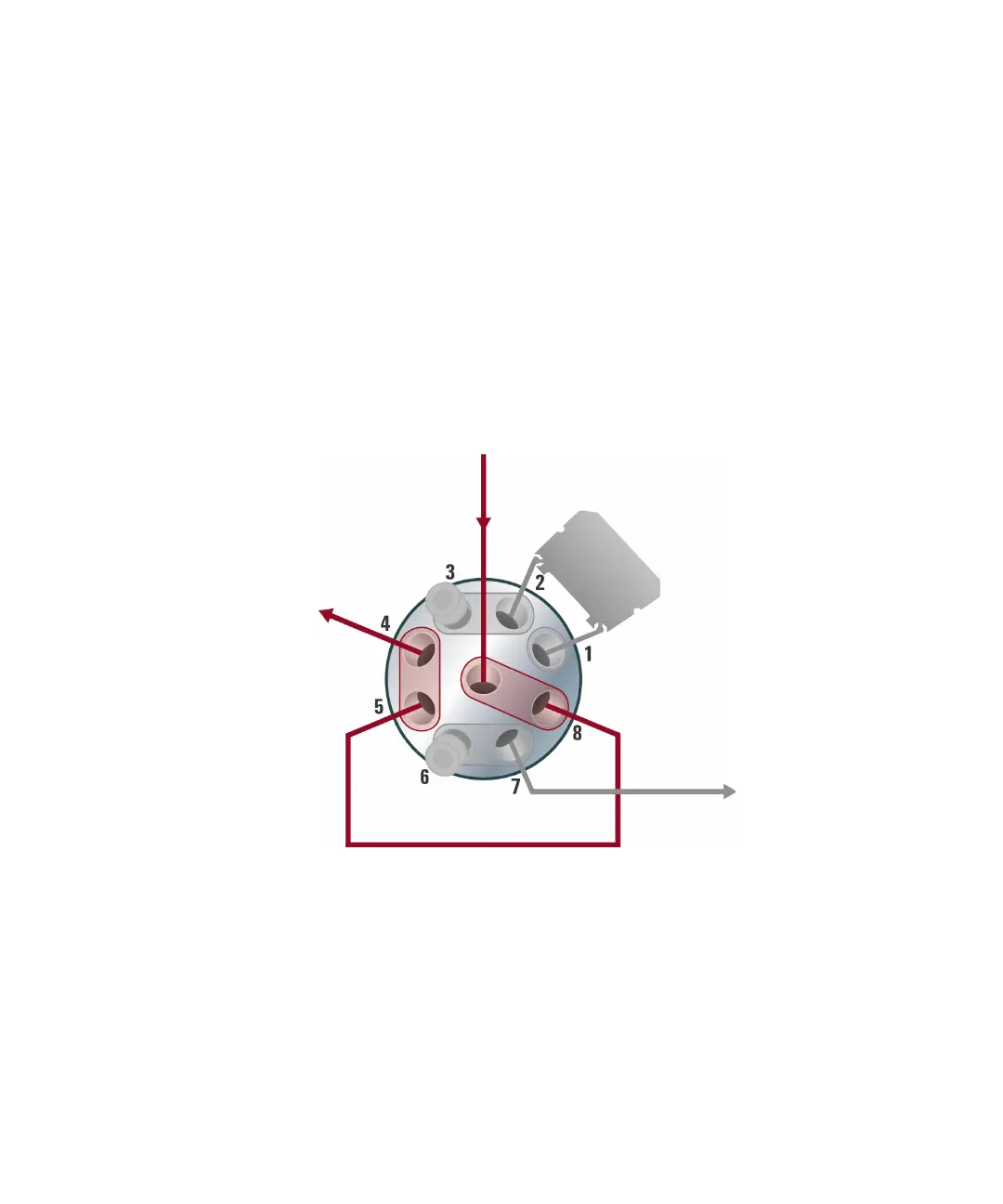

Figure 4 Valve position in normal operating mode without mixer
From pump
To system
