Agilent Technologies G7104C User Manual

1260 Infinity II Flexible Pump User Manual 193
8Maintenance
Pump Head Maintenance (Tool Free)

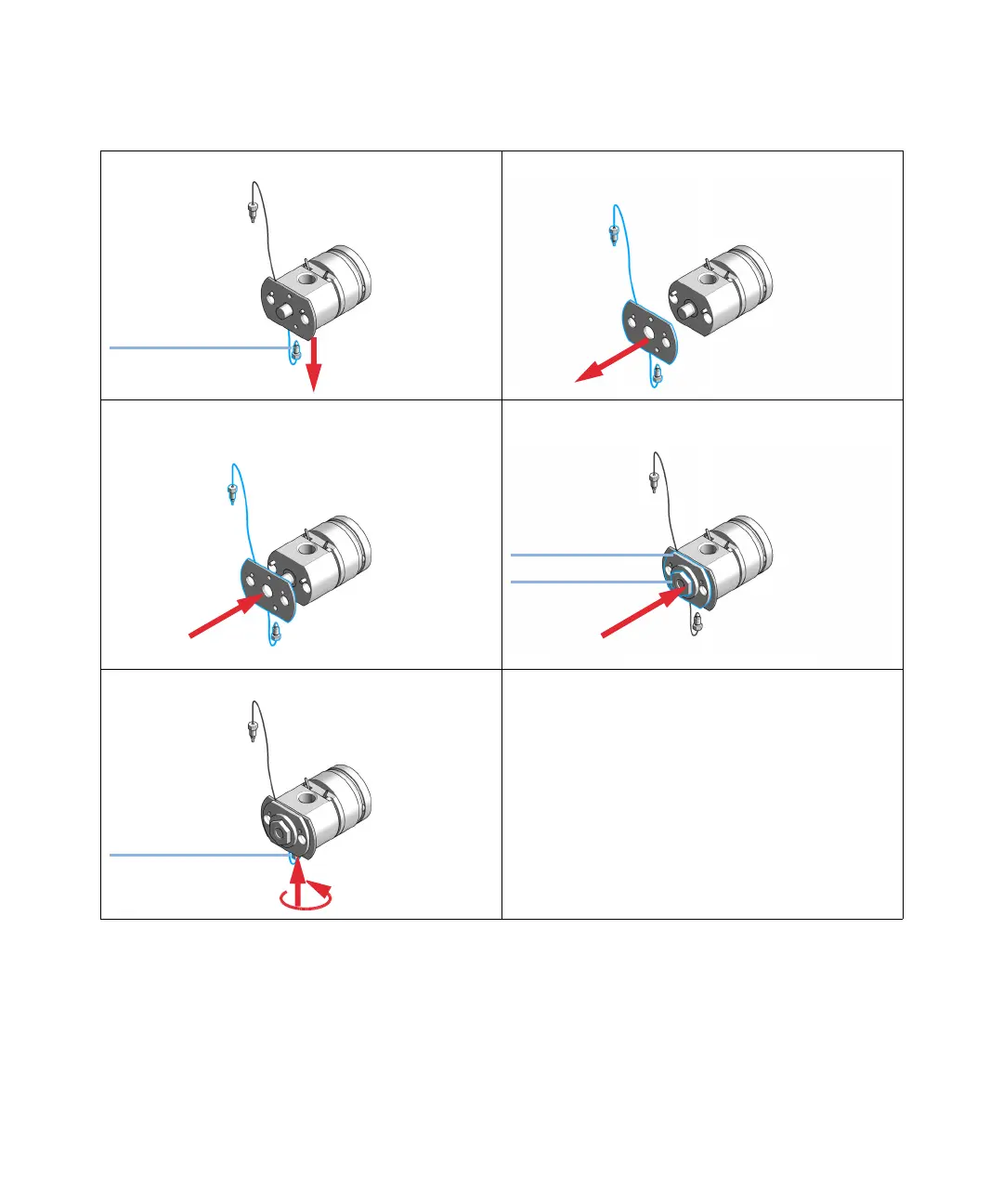

3 Remove the screw at the bottom of the pump head. 4 Lift out the heat exchanger.
5 Insert the new heat exchanger into the opening of the
pump head and lift it over the pins.
6 Use the 19 mm screw for fixing the front plate.
7 Insert and fix the screw.
Screw
Front plate
Screw
Screw
