Agilent InfinityLab LC Series Diode Array D
e
tectors User Manual
103
5
Optimizing the Detector

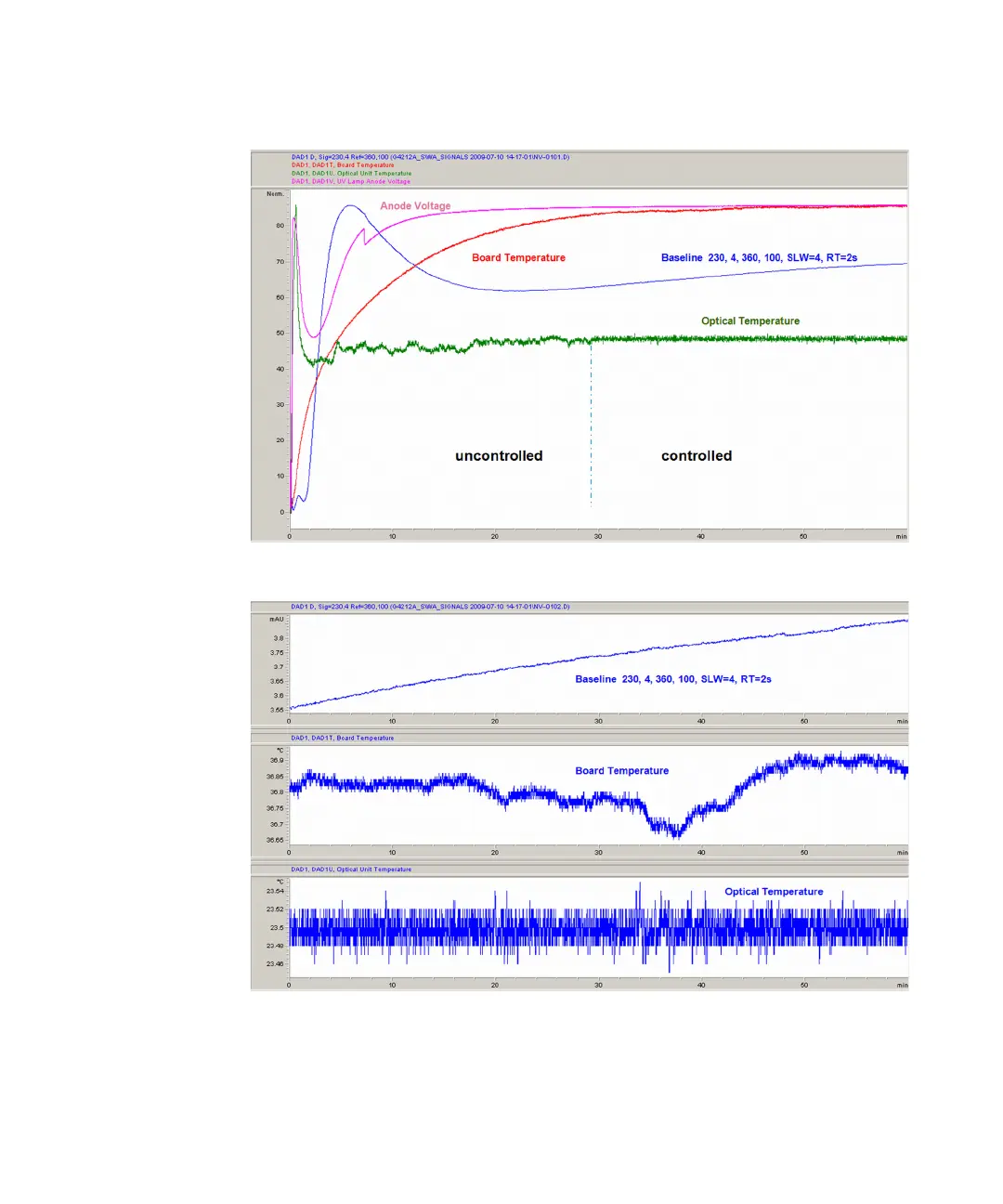

Warm up of the Detector
Figure
31
Detector W
arm-up – 1
st
hour
Figure
32
Detector W
arm-up – 2
nd
hour
102
104
