Agilent Technologies G7117C User Manual

Agilent InfinityLab LC Series Diode Array Detectors User Manual 14
1 Introduction
Optical System
Optical System
The optical system of the detector is shown in Figure 4 on page 14.

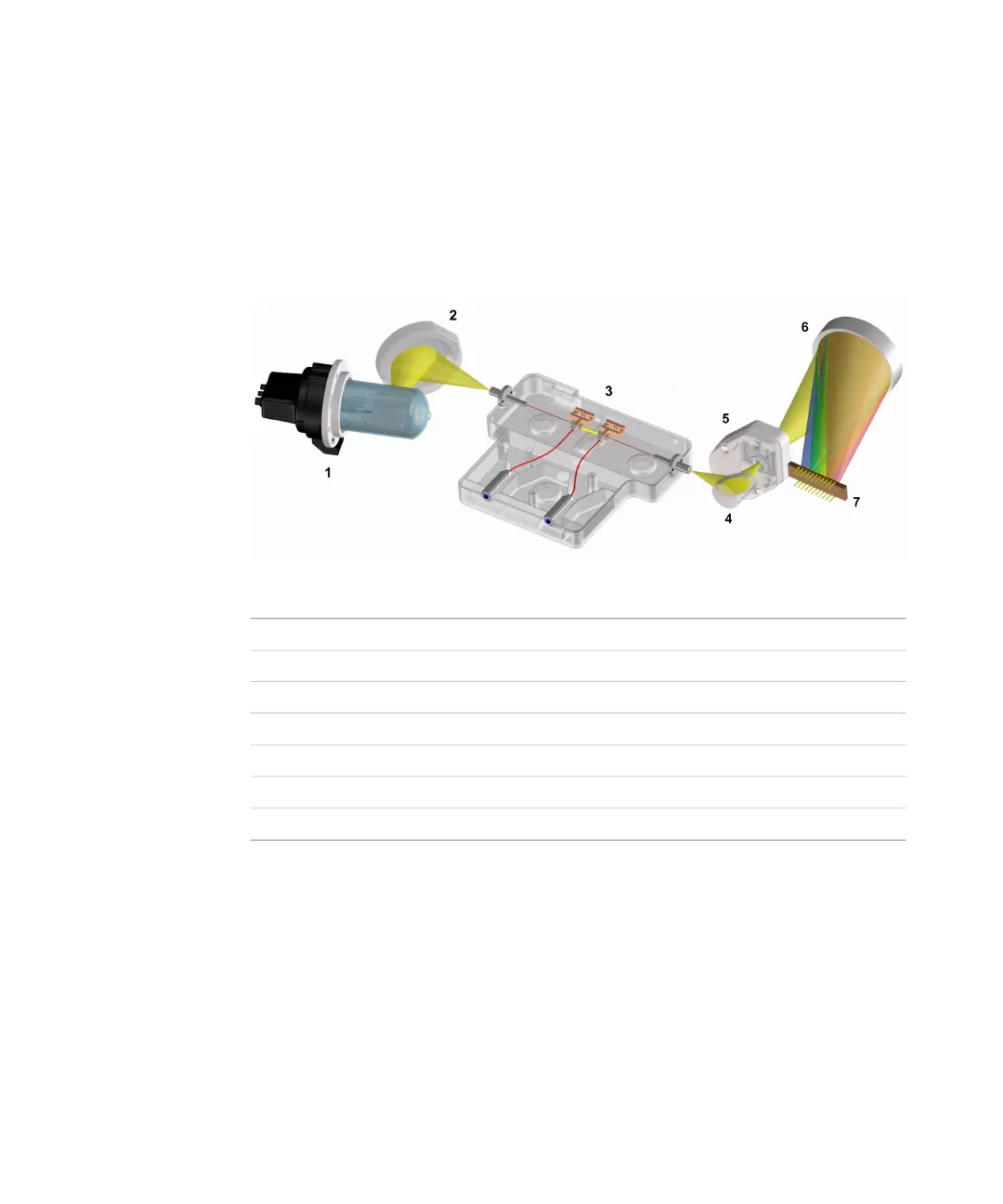

Figure 4 Optical System of the Detector
The illumination source is a deuterium-arc-discharge lamp [1] for the ultraviolet
(UV) wavelength range. Its light is focused by a lamp mirror [2] onto the entrance
of the Max-light cartridge flow cell [3] with optofluidic waveguides. The light
leaves the Max-light cartridge flow cell at the other side and is focused by the fold
mirror [4] through the slit assembly [5] onto a holographic grating [6] light being
dispersed onto the diode array [7]. This allows simultaneous access to all
wavelength information.
1 UV-lamp
2 Lamp mirror
3 Flow cell
4 Fold mirror
5 Programmable (G7117B) or Fixed (G7117A/G7117C) slit
6 Grating
7 Array
