13 LAN Configuration
What You Have to Do First
What You Have to Do First
The module has an on- board LAN communication interface.
1 Note the MAC (Media Access Control) address for further reference. The MAC
or hardware address of the LAN interfaces is a world wide unique identifier.
No other network device will have the same hardware address. The MAC
address can be found on a label at the rear of the module underneath the
configuration switch (see Figure 57 on page 206).

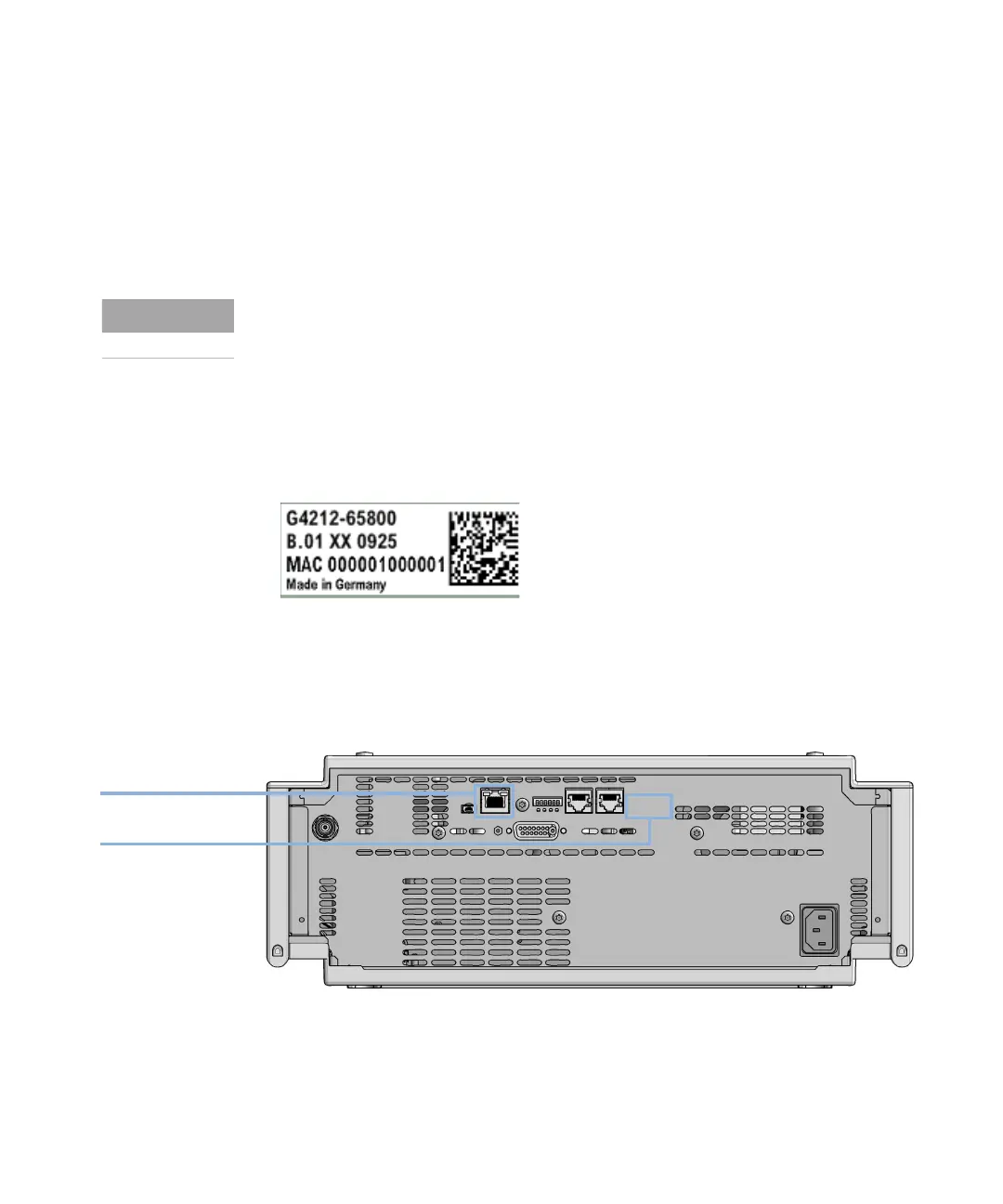

Figure 56 MAC-Label
2 Connect the instrument's LAN interface (see Figure 57 on page 206) to
• the PC network card using a crossover network cable (point-to-point) or
• a hub or switch using a standard LAN cable.
Figure 57 Location of LAN interfaces and MAC label
NOTE
This chapter is generic and may show figures that differ from your module. The
functionality is the same.
Part number of the detector main board
Revision Code, Vendor, Year and Week of assembly
MAC address
Country of Origin
