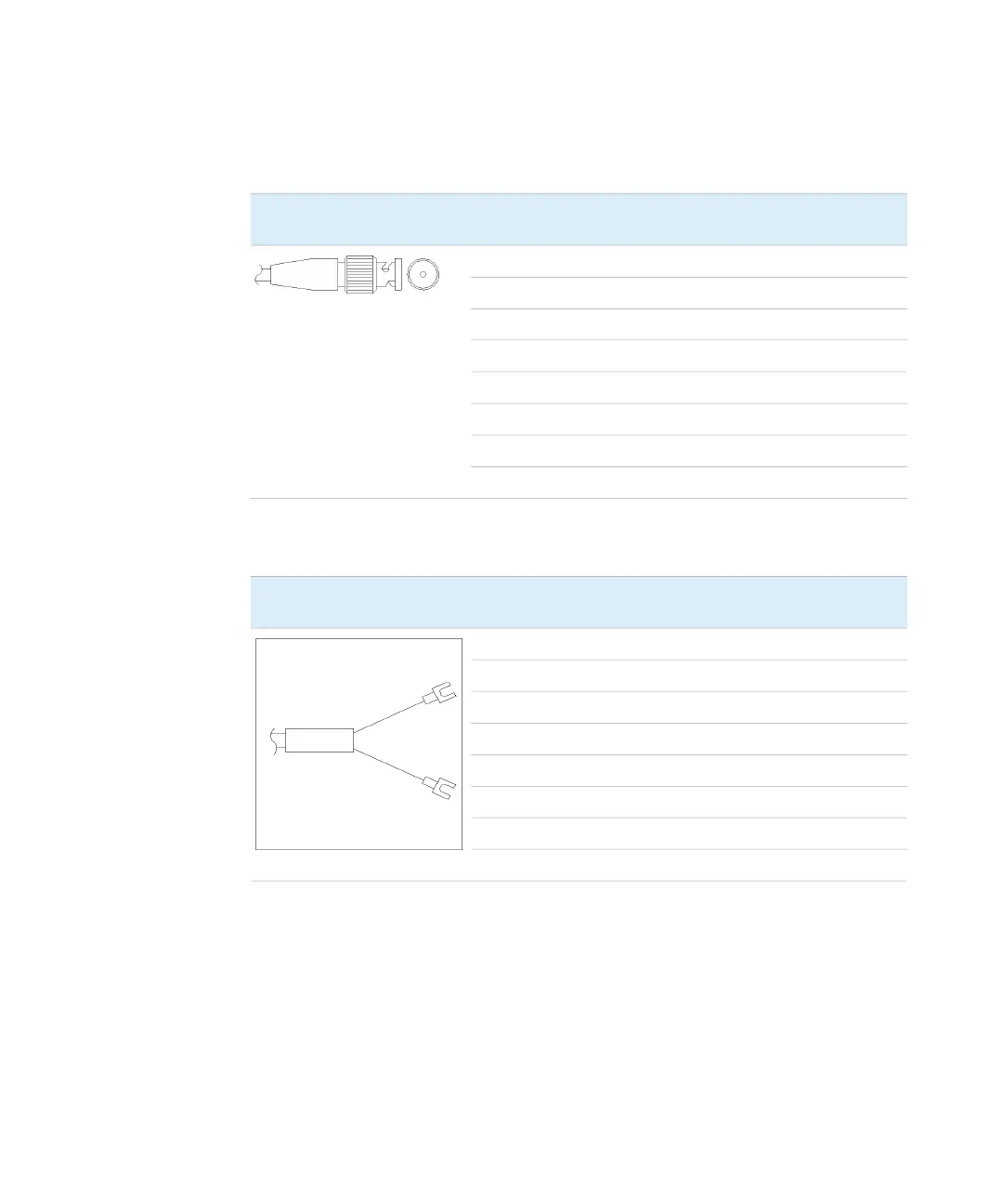

11 Identifying Cables
Analog Cables
Agilent Module to BNC Connector
Agilent Module to General Purpose
p/n 8120-1840 Pin BNC Pin Agilent
module
Signal Name
Shield Shield Analog -
Center Center Analog +
p/n 01046-60105 Pin Pin Agilent
module
Signal Name
1 Not connected
2 Black Analog -
3 Red Analog +
