Using N8480 Series Power Sensors 6
N1913/1914A EPM Series Power Meters User’s Guide 149
Power Meter Configuration Changes
The N1913/1914A EPM Series power meter recognizes when a N8480
Series power sensor is connected. The N8480 Series power sensors’
(excluding Option CFT) calibration data is automatically read by the power
meter. In addition, the auto- averaging settings shown in Figure 6- 1 are
automatically configured.

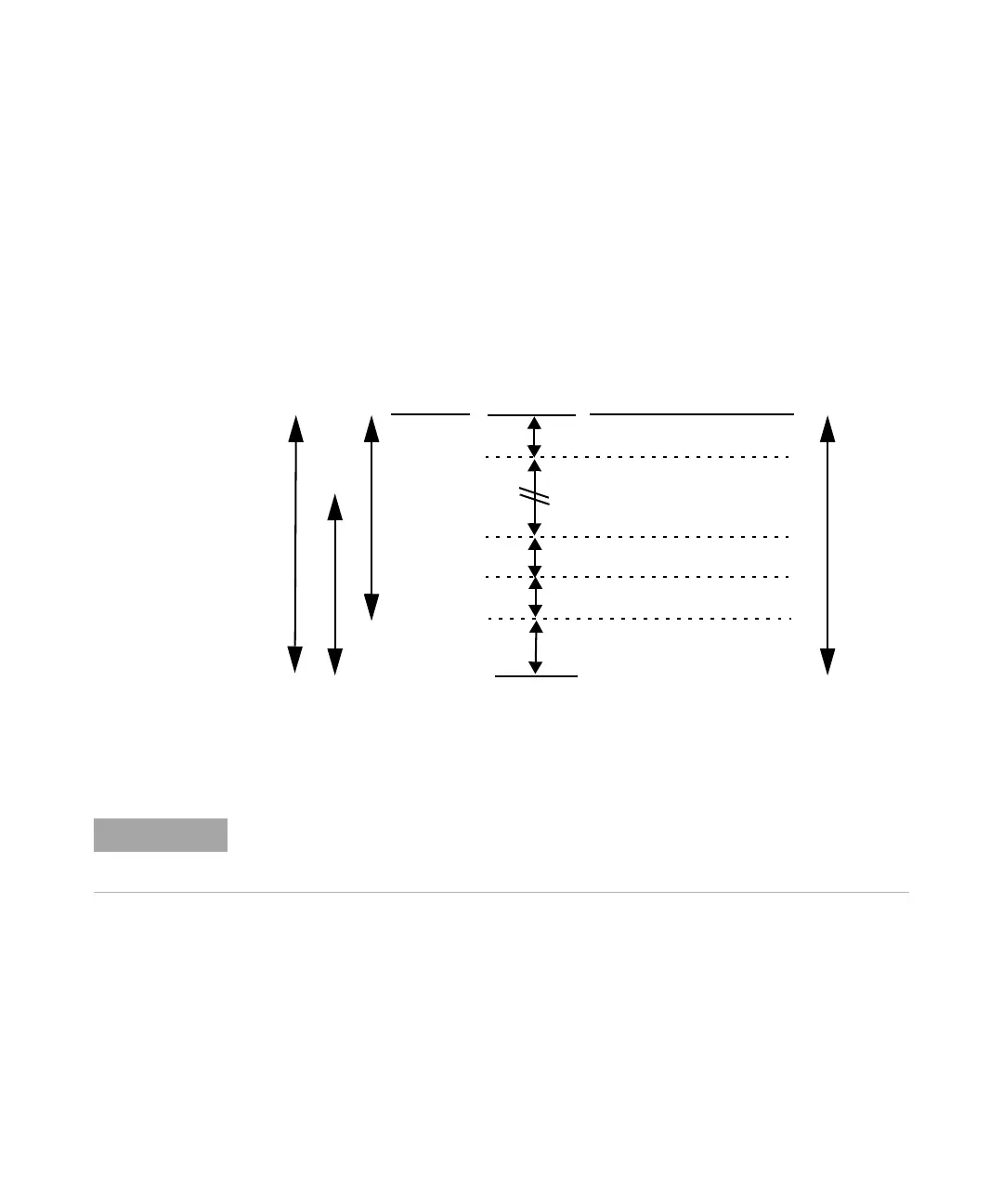

Figure 6-1 Auto-averaging settings
Sensor Dynamic Range
Number of Averages
Upper Range
Lower Range
Sensor Power
Minimum
1234
1128
Resolution Setting
22432
22432
2216256
2 8 128 128
Maximum
4 64 256 512
Sensor Power
0 dBm
–1 dBm
–30 dBm
–10 dBm
–20 dBm
N8481/2/5A
NOTE
These values are valid only for the power meter channel connected to a N8480 Series
power sensor. Averaging settings can also be manually configured. Refer to “Setting
Measurement Averaging” on page 49 for more details.
