6 Using N8480 Series Power Sensors
150 N1913/1914A EPM Series Power Meters User’s Guide
Default Channel Setup
When a N8480 Series power sensor is connected, the following Channel
Setup is automatically configured. Presetting returns the channel to this
configuration.

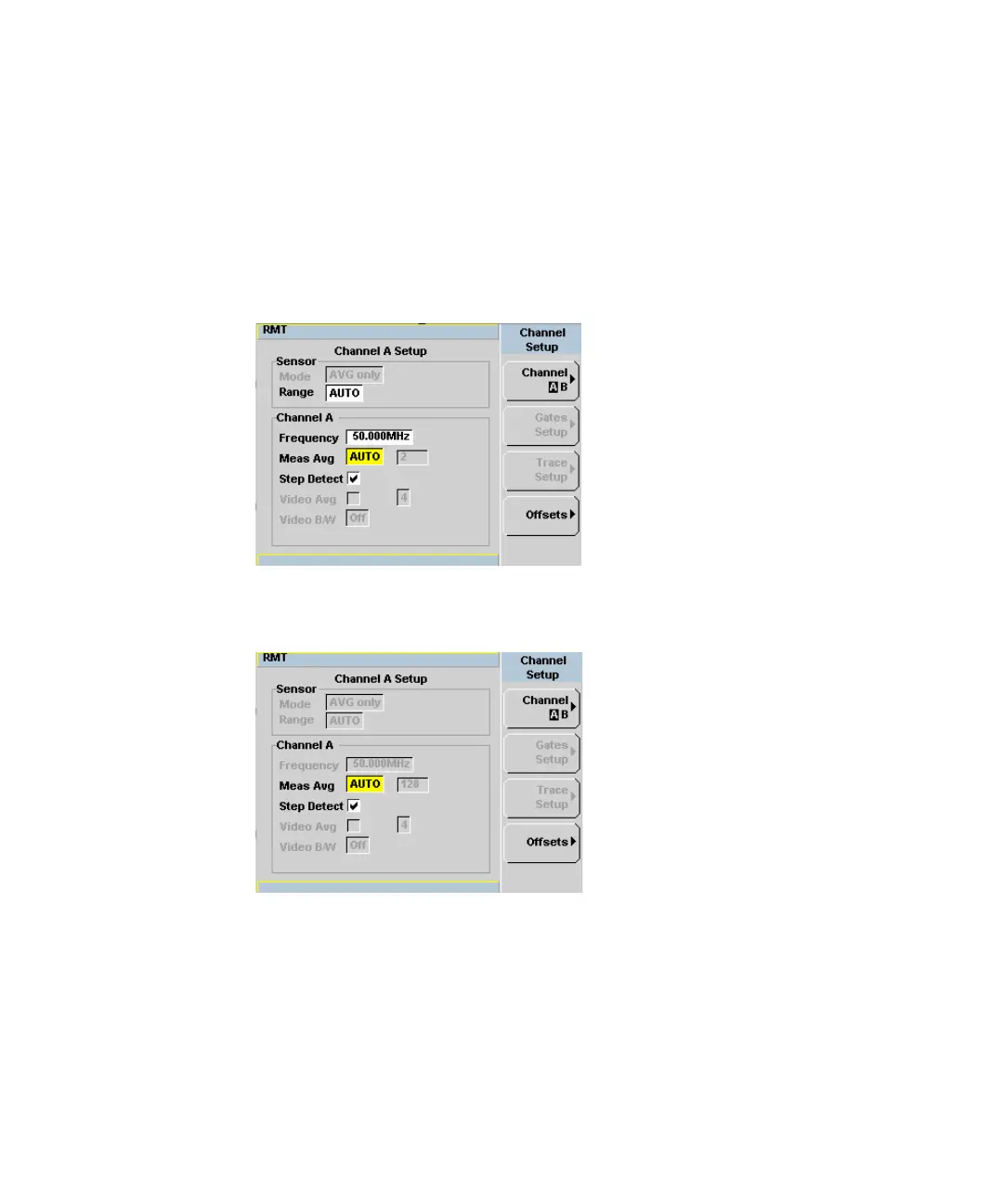

Figure 6-2 N8480 Series sensor (excluding Option CFT) default channel setup
Figure 6-3 N8480 Series sensor with Option CFT default channel setup
