1 Introduction
22 Agilent N1913/1914A EPM Series Power Meters User’s Guide
Editing the Instrument’s LAN Settings
Once communication path to the instrument has been established, the
instrument’s LAN configuration can be viewed and modified using the Web
interface.
On the Welcome Page, click View and Modify Configuration. This opens the
configuration window shown in Figure 1- 8.

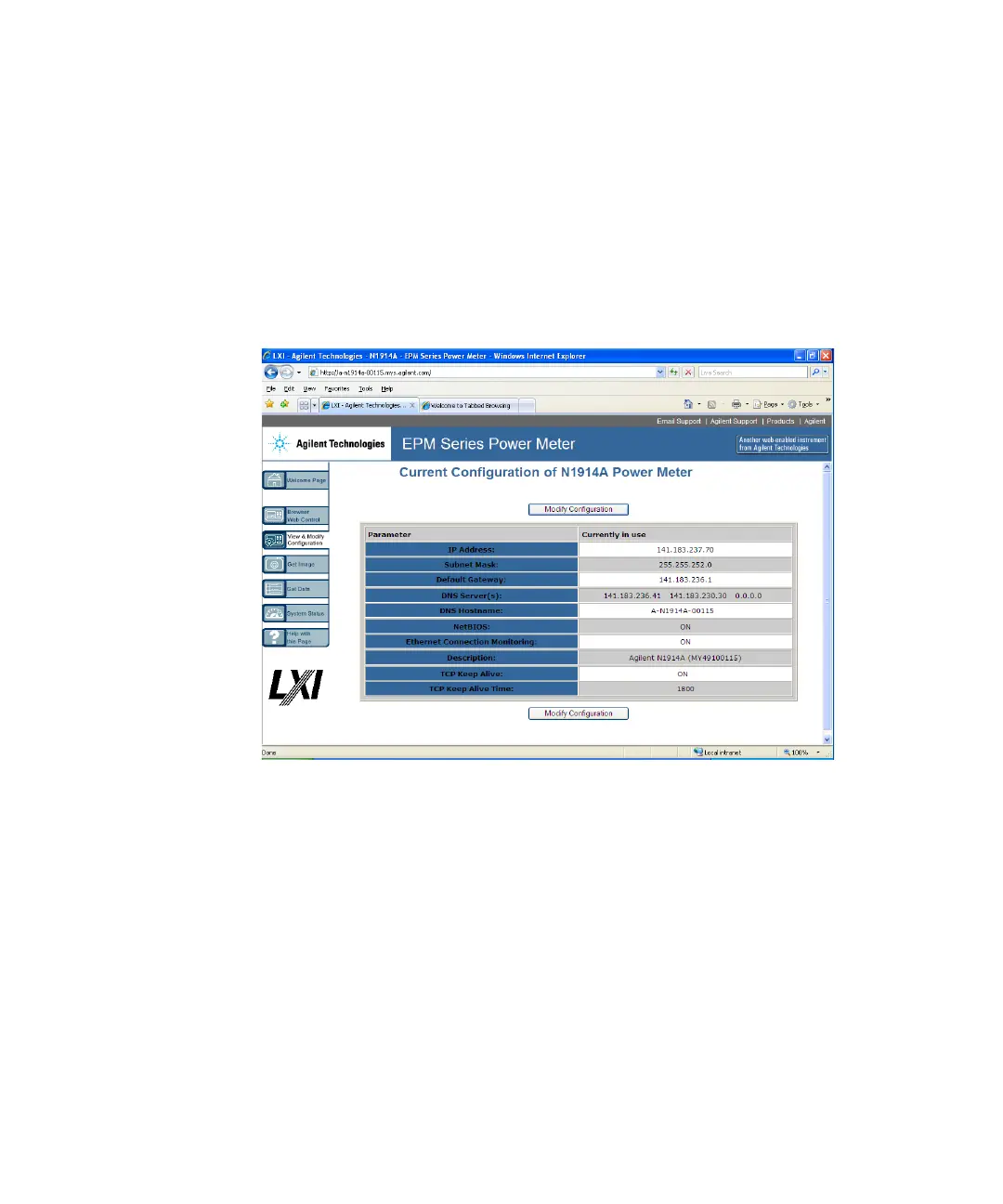

Figure 1-8 Viewing LAN configuration settings from the Web interface
To edit parameters shown, click Modify Configuration. The Enter Password
dialog box appears as shown in Figure 1- 9.
