10 Specifications and Characteristics
228 Agilent N1913/1914A EPM Series Power Meters User’s Guide
For Agilent E-Series power sensors
For E441X series and E9300 series power sensors in normal and x2 speed
modes, manual filter, 10 dB decreasing power step (refer to Table 10- 7).
Auto- filter, default resolution, 10dB decreasing power step, normal and x2
speed modes (refer to Figure 10- 2 for E441X series sensors and
Figure 10- 3 for E9300 series sensors).
Table 1 0 -7 E441x and E9300 Series Settling Time
*E-Series power sensors in Fast mode (using free run trigger), within the range –50 dBm to +17 dBm,
the settling time is:
N1913A: 10 ms
N1914A: 20 ms

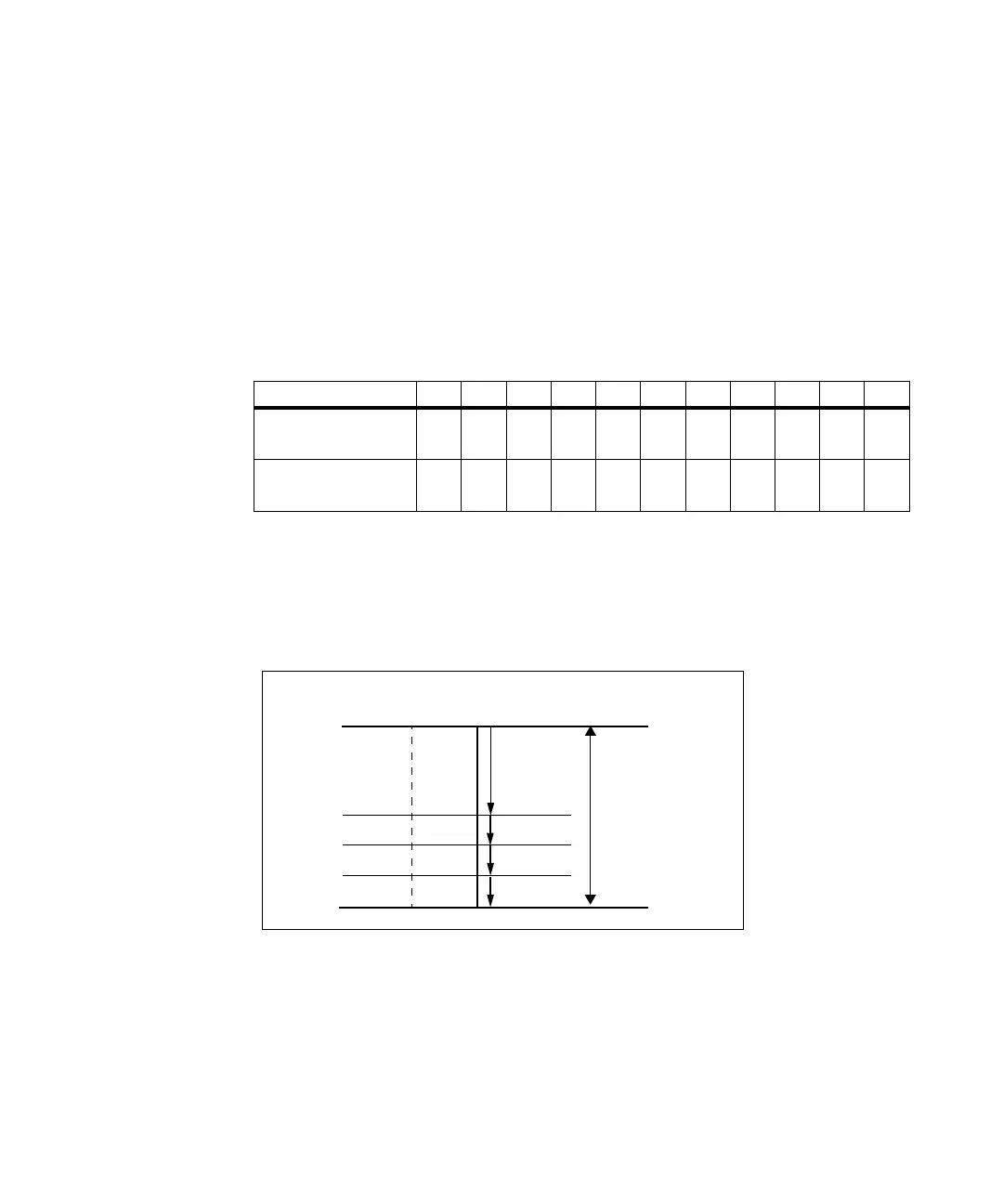

Figure 10-2 E441x Series Settling Time with Auto-Filter
Number of Averages12481632641282565121024
Settling Time (s)
(Normal Mode)
0.08 0.13 0.24 0.45 1.1 1.9 3.5 6.7 14 27 57
Settling Time (s)
(X2 Mode)
0.07 0.09 0.15 0.24 0.45 1.1 1.9 3.5 6.7 14 27
+50 dB
+10 dB
70 ms
90 ms
450 ms
3.5 s
+10 dB
Normal
Mode
80 ms
130 ms
1.1 s
6.7 s
X2
Mode
Sensor
Dynamic
Range
Ty p i c a l
Settling
Times
+10 dB
Max dBm
Min dBm
