Using U8480 Series USB Power Sensors 8
N1913A/1914A EPM Series Power Meters User’s Guide User’s Guide 185
Zeroing
The N1913/1914A EPM Series power meters support the ability to perform
zeroing on the U8480 USB thermocouple sensor via the front panel and
SCPI. However, the N1913/1914A EPM Series power meters do not support
the choosing of the zeroing type and auto zeroing for the U8480 USB
thermocouple sensor. When zeroing is triggered via the front panel or
SCPI, the following pop- up message shall appear:

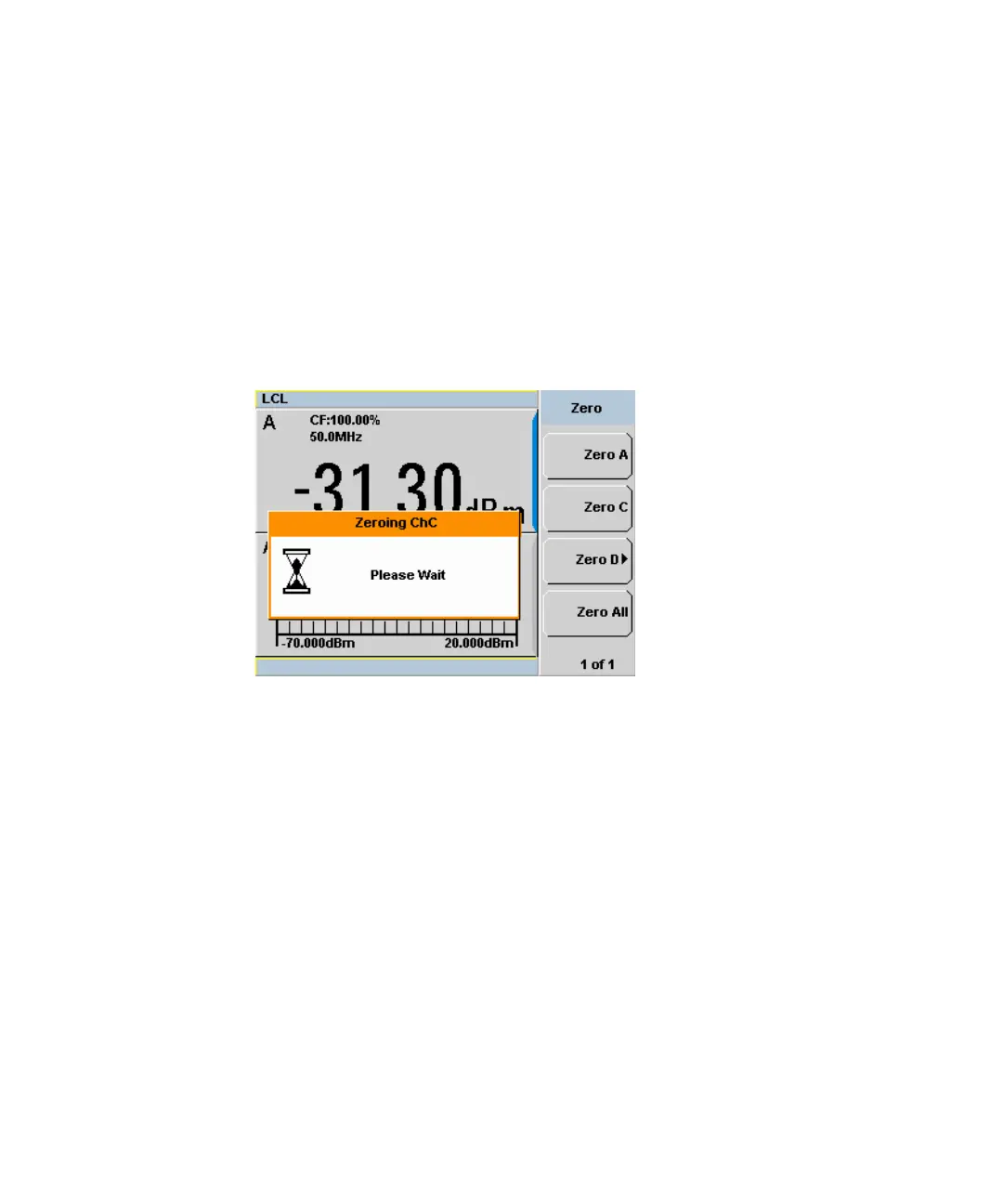

Figure 8-4 Zeroing pop-up message
Should an error occur during zeroing, the following pop- up message will
appear:
