General Power Meter Functions 2
N1913/1914A EPM Series Power Meters User’s Guide 65
Checking for Limit Failures
Limit failures are displayed in the appropriate field in the measurement
window on the power meter’s display as shown in Figure 2- 26.

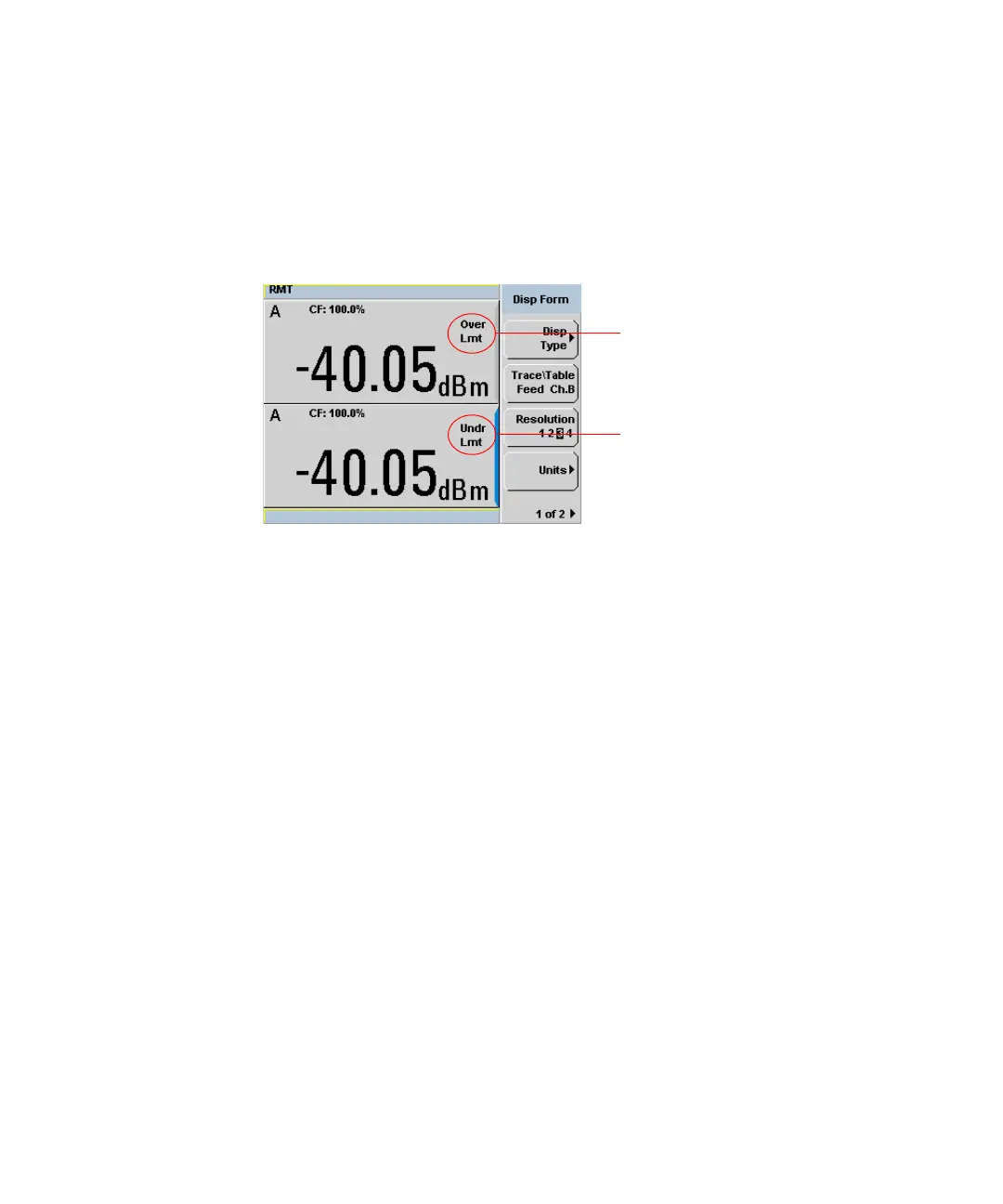

Figure 2-26 Limit failures
This measurement has failed as the
result is greater than the set limit level.
This measurement has failed as the
result is less than the set limit level.
