Using N8480 Series Power Sensors 6
N1913/1914A EPM Series Power Meters User’s Guide 153
Now, set the frequency of the signal you want to measure. The power
meter automatically selects the appropriate calibration factor.
4 Press . On dual channel meters, select the required channel.
5 Use the and keys to highlight the Frequency value field and
press to display the Frequency pop- up. Use the numeric keypad
to enter the required value in the Frequency pop- up window.

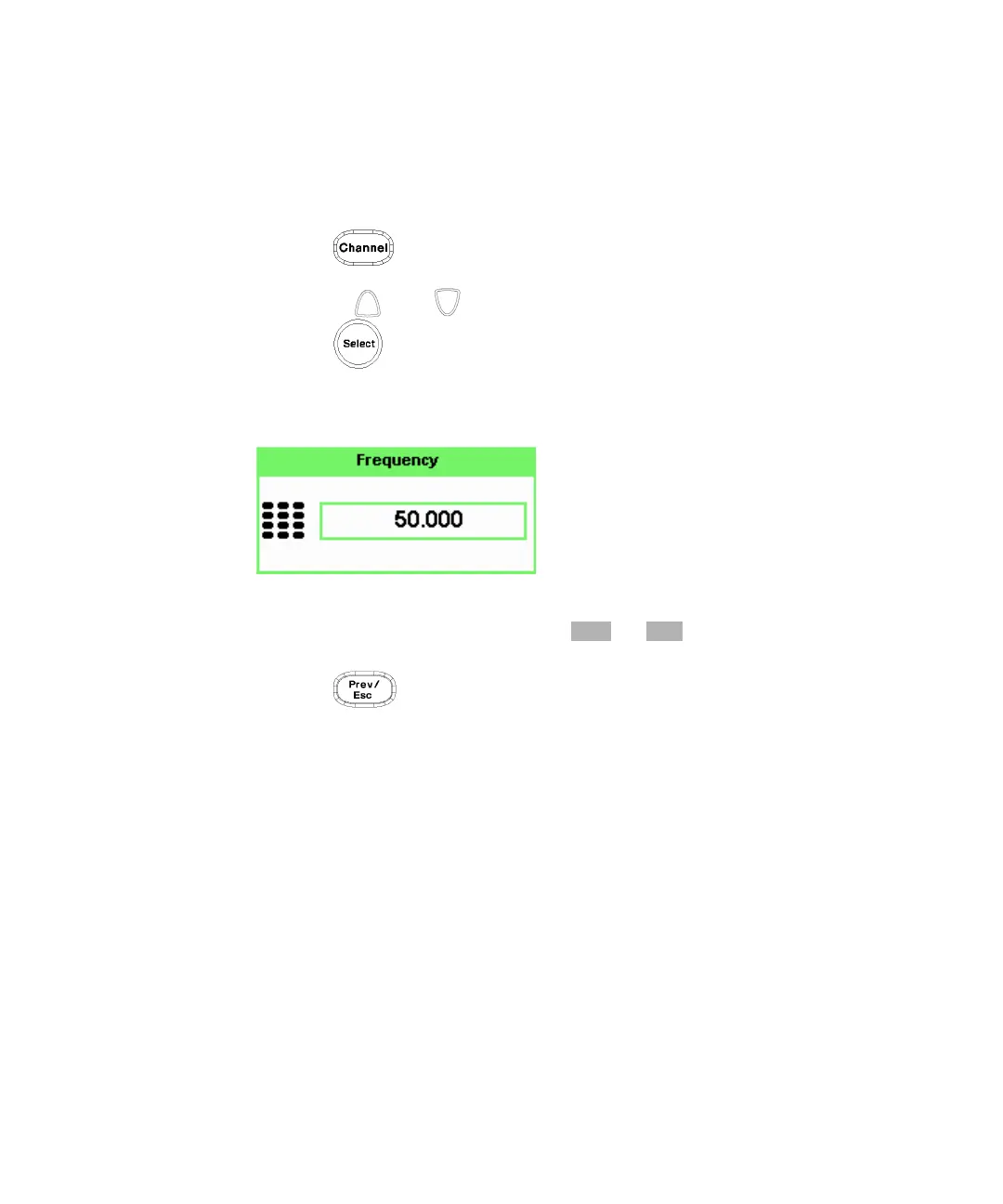

Figure 6-4 Frequency pop-up
6 Confirm your choice by pressing or .
7 Press key to close the Channel Setup screen. Proceed to make
the measurement.
8 Connect the power sensor to the signal to be measured. The corrected
measurement result is displayed.
MHz
GHz
