Agilent Technologies N1913a - Figure 2-35 Recorder Minimum Pop-Up

General Power Meter Functions 2
N1913/1914A EPM Series Power Meters User’s Guide 73
3 Press to reveal the Recorder option menu.
4 Use the and keys to highlight the option you require.
• The N1913A has only three options, On, Auto, or Off.
• The N1914A has five options: 1, 2, Auto 1, Auto 2, or Off.
5 Press .
6 Use the key to highlight the Recorder Minimum: value field.
7 Press to display the Recorder Minimum pop- up.

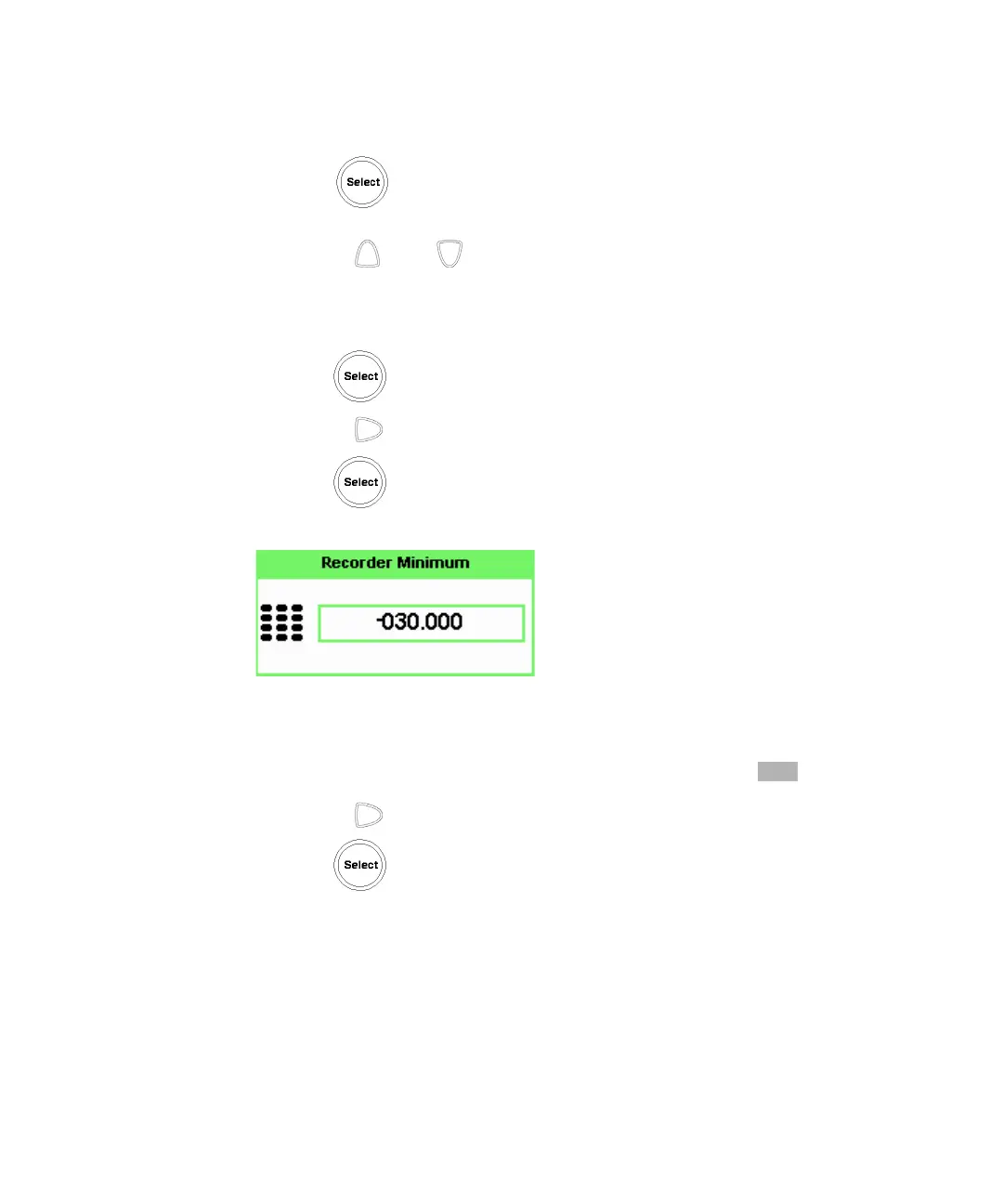

Figure 2-35 Recorder Minimum pop-up
8 Use the numeric keys to enter the power level you want to generate a 1
Vdc output in the Recorder Maximum pop- up and press .
9 Use the key to highlight the Recorder Maximum: value field.
10 Press to display the Recorder Maximum pop- up.
dBm
