Setting Offsets
The power meter can be configured to compensate for a signal loss or gain
in your test setup. The power meter allows you to apply offsets at three
different points in the measurement path.

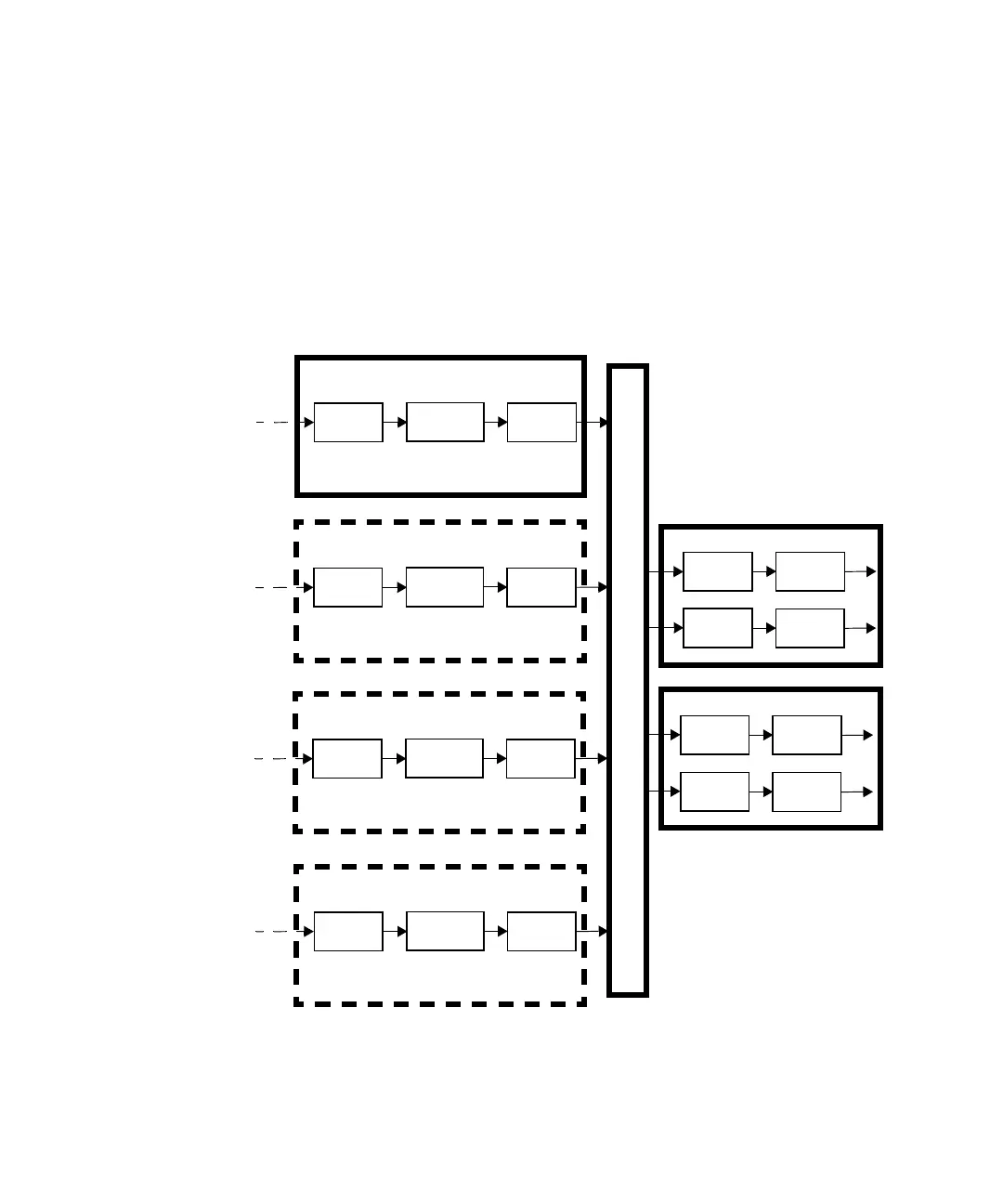

Figure 2-4 Simplified measurement path
Channel Functions
Window Functions
Display
Relative
Offset
Channel A
Upper Window
Lower Window
Display
Relative
Offset
Display
Relative
Offset
Display
Relative
Offset
Measurement Highway
Freq Dep
Offset
Channel
Offset
Cal
Factor
Channel B
Freq Dep
Offset
Channel
Offset
Cal
Factor
Channel C
Freq Dep
Offset
Channel
Offset
Cal
Factor
Channel D
Freq Dep
Offset
Channel
Offset
Cal
Factor
