Front Panel Keys and Connections
This section briefly describes the functions of the front panel keys and
connectors.

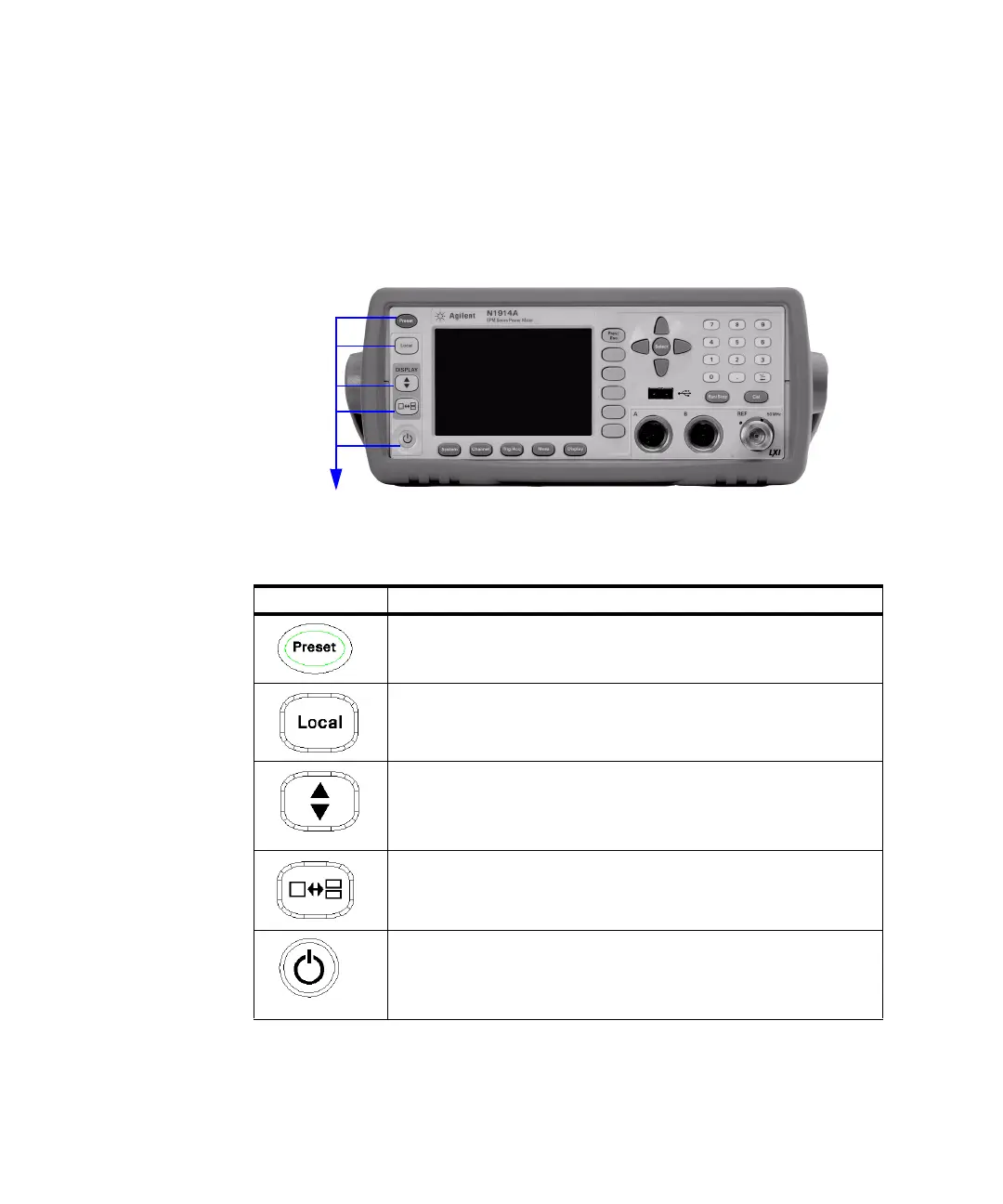

These keys are located to the left of the display.
Key Function
Press this key to preset the power-meter to the default setting.
Press this key to control the power meter from the front panel when it is
operating via the remote interfaces (when Local Lock Out is not enabled).
Press this key to select the upper or lower measurement window. The
selected window is highlighted by a blue line on the right side of the
window. Any measurement setup you create is performed in the selected
window.
Press this key to choose windowed, expanded, or full-screen display of a
numeric measurement.
Press this key to switch the meter between on and standby. When power
is supplied, the background LED is red. Pressing the key, switches the
power meter on and the background LED is green. When the meter is
powered on, the start-up will take approximately 25 seconds.
To Next Page
