1 Introduction
18 Agilent N1913/1914A EPM Series Power Meters User’s Guide
An example of the instrument Web interface (Welcome Page) is shown in
Figure 1- 5.

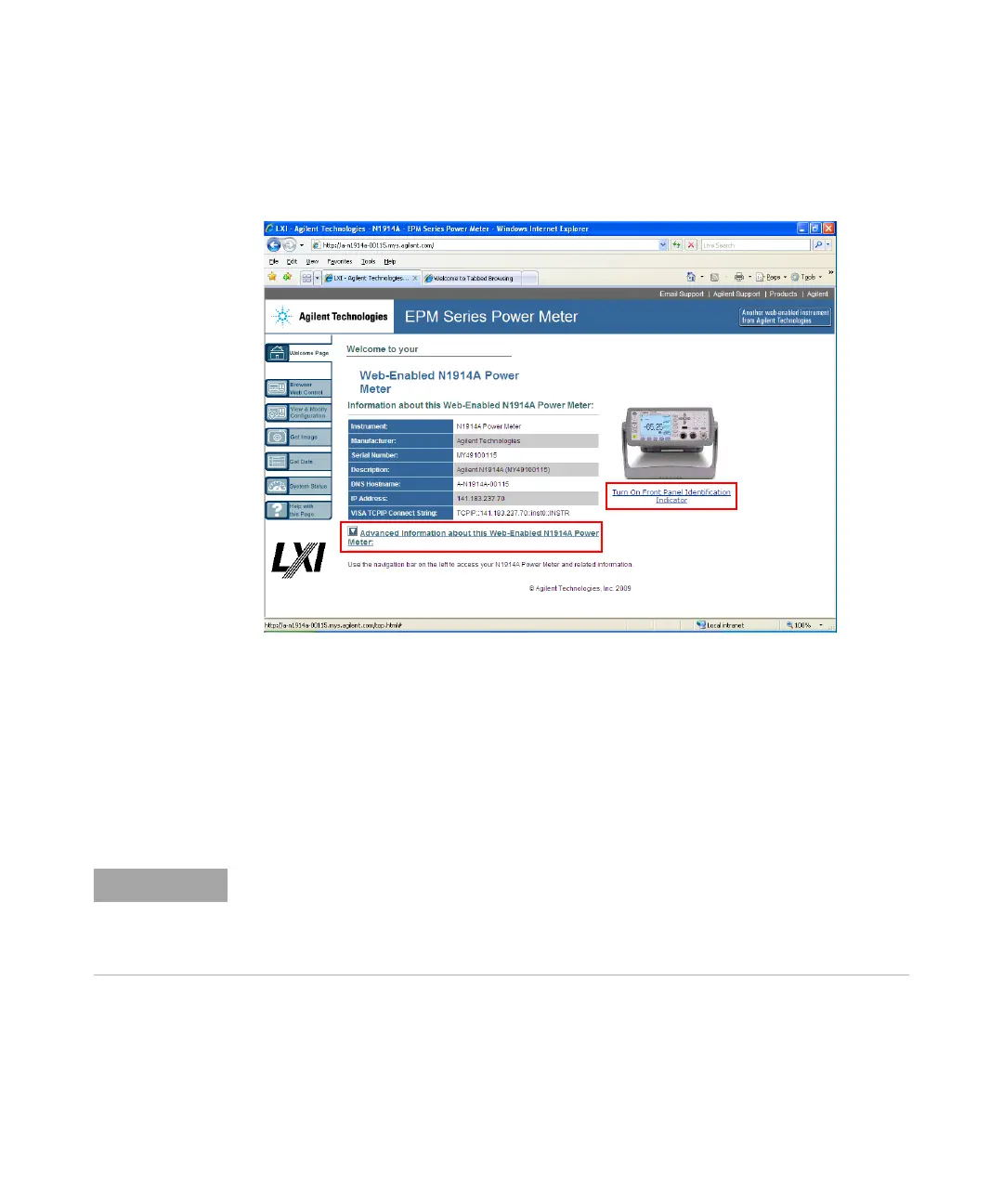

Figure 1-5 N1914A EPM Series power meter Web interface (Welcome Page)
You can control the instrument via GPIB, LAN, and USB connection. The
connection parameters can be found on the Welcome Page. For example,
SCPI TCPIP socket port (5025), SCPI Telnet port (5024), VISA TCPIP
Connect String, VISA USB Connect String, and GPIB address are shown.
Click Advanced Information… to display more information about the
instrument.
Instrument on the network can be physically identified from the blinking
message on front panel screen by clicking Turn On Front Panel Identification
Indicator on the Welcome Page.
• The instrument has an embedded Web server, which is listening on port 80 to serve Web
pages.
• The Web pages can be browsed using Web browser such as Internet Explorer and
Mozilla Firefox.
