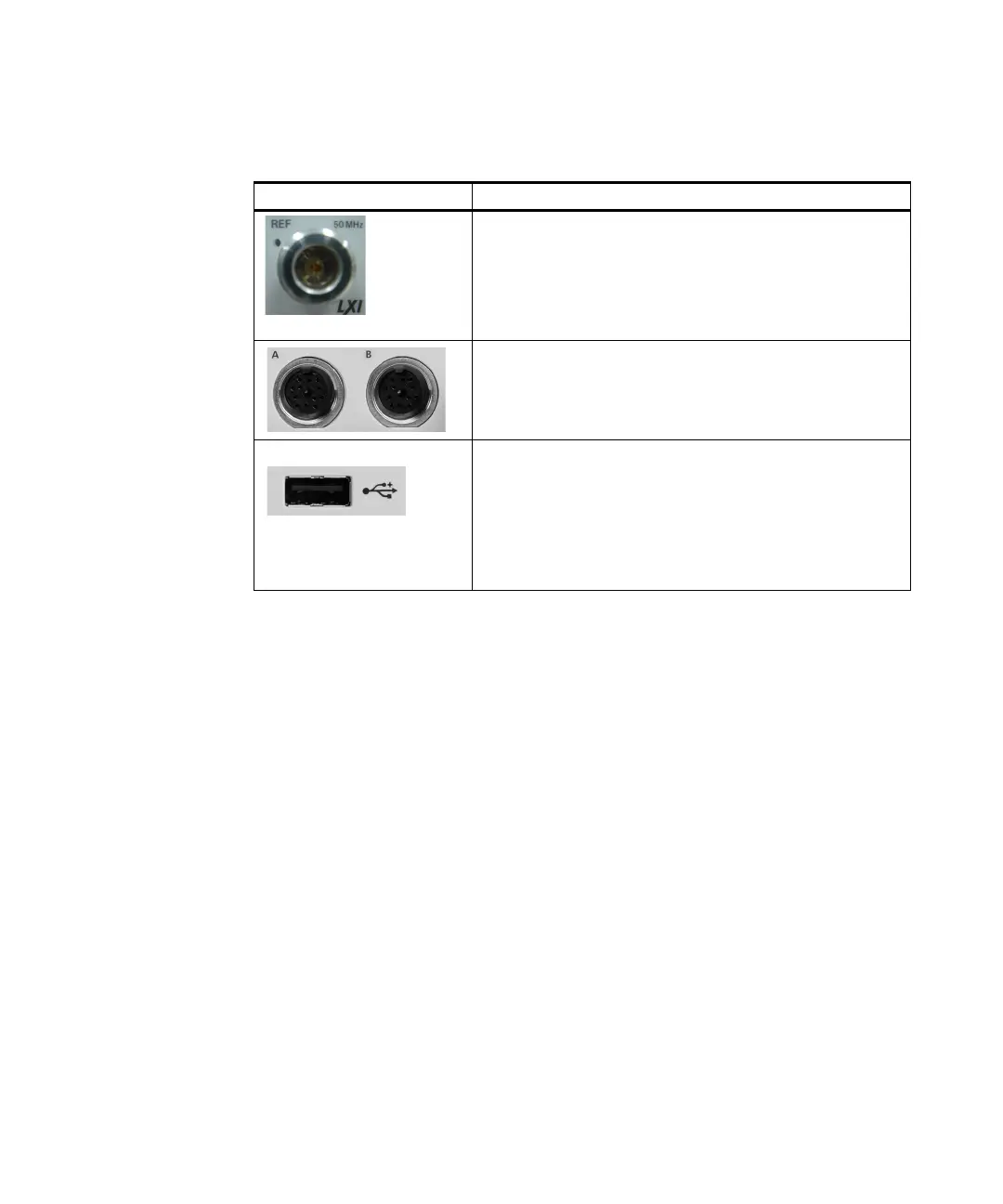

Connector Function
The power reference is a 1mW (0dBm) 50MHz signal
available from a 50 W type-N connector. It is used for calibrating
an 8480 or E-Series power sensor and meter system. If the
meter is configured with Option 109, the connector is fitted to
the rear panel. The Green LED beside the connector is lit when
the calibrator is turned on.
The sensor input connectors (N1914A shown, the N1913A has
one input). If the meter is configured with Option 108 or 109,
the connectors are fitted to the rear panel and the front panel
connectors are retained.
The USB Type A port is solely for U2000 Series power sensors
usage only. If the meter is configured with Option105, one USB
Type A port is fitted to the front panel (Channel C) and another
Type A port (Channel D) to the rear panel. If the meter is
configured with Option 103, 108, or 109, two USB Type A ports
are fitted to the rear panel. The USB port on the left is Channel
C and the port on the right is Channel D.
