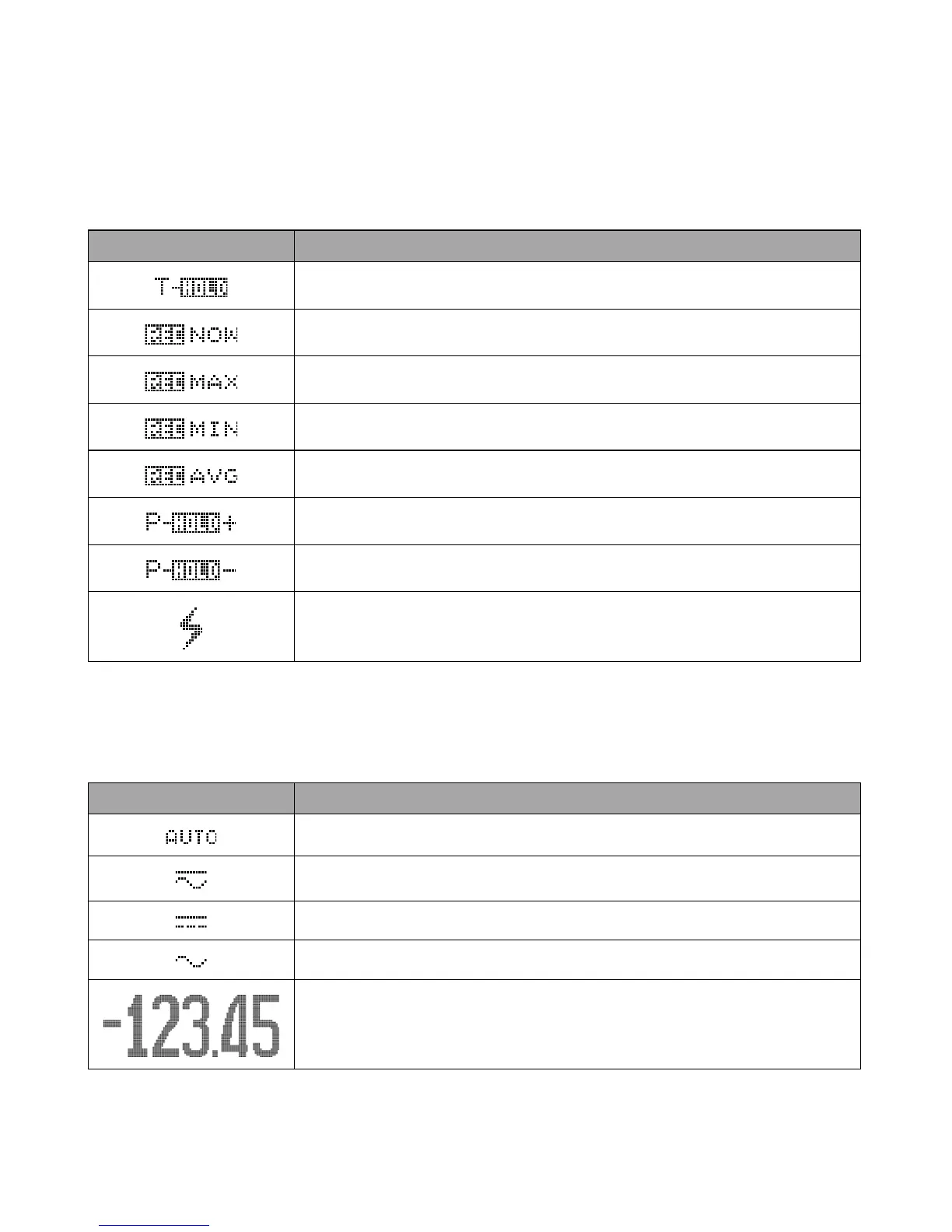

The primary display annunciators are described below.
Trigger (manual) Hold
Dynamic Recording mode: Present value on primary display
Dynamic Recording mode: Maximum value on primary display
Dynamic Recording mode: Minimum value on primary display
Dynamic Recording mode: Average value on primary display
1 ms Peak Hold mode: Positive peak value on primary display
1 ms Peak Hold mode: Negative peak value on primary display
Hazardous Voltage annunciator for measuring voltage ≥ 30 V or Overload
Table 1- 3 General display annunciators
OLED Annunciator Description
Table 1- 4 Primary display annunciators
OLED Annunciator Description
Auto range
AC+DC
DC
AC
Polarity, digits, and decimal points for primary display
