2 Making Measurements
Measuring DC voltage
1 Set the rotary switch to or .
2 Press if necessary to ensure that is shown on
the display.
3 Connect the red and black test leads to input terminals
V.mV (red) and COM (black) respectively (refer to Figure 2- 2).
4 Probe the test points and read the display.
5 Press to display dual measurements. See “Selecting
display with the Dual button” on page 19 for a list of
dual measurements available. Press and hold for
more than 1 second to exit dual display mode.

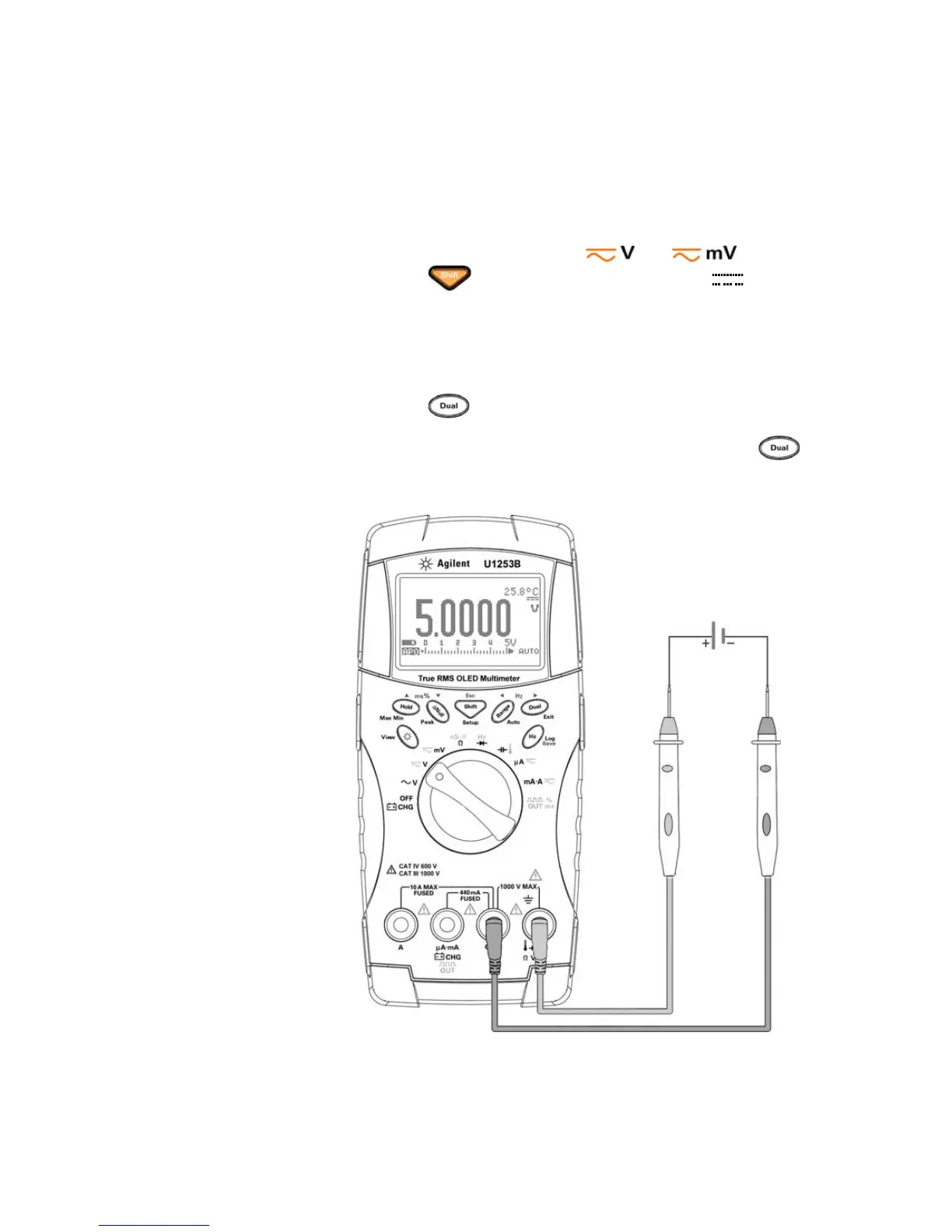

Figure 2-2 Measuring DC voltage
